3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Range | Isolated +4 to +20 mA DC |
| Channels | Supports 3500/62 process variable monitoring |
| Isolation | Galvanic isolation for inputs |
| Terminations | External termination design |
| Compatibility | 3500/62 Process Variable Monitor |
| Operating Temperature | -30 to +65°C |
| Power | Backplane powered |
4. Product Introduction

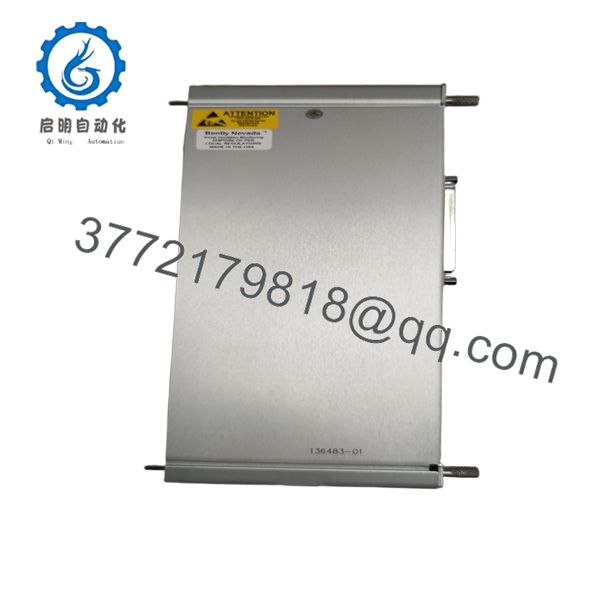

The Bently Nevada 136483-01 is an isolated 4-20 mA I/O module with external terminations for the 3500/62 Process Variable Monitor. It accepts loop-powered 4-20 mA signals from process sensors such as pressure, flow, level, or temperature transmitters.
This module expands the 3500 system’s ability to monitor critical process parameters alongside vibration data. The isolation helps reduce ground loops in industrial environments. Verify loop power requirements and termination configuration for your specific sensors.
- 136483-01
- 136483-01
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No 4-20 mA reading | Loop power or wiring fault | High | Measure loop current at terminals | Verify transmitter power and connections |
| Erratic signal | Ground loop or noise | High | Check isolation and shielding | Confirm proper grounding practices |
| Module alarm | Over/under range | Medium | Review channel scaling in software | Adjust engineering units and limits |
| Communication loss with monitor | I/O seating issue | Medium | Reseat module and check backplane | Clean contacts and verify slot |
| High noise | Cable interference | Low | Test with shorter shielded cable | Improve routing away from power lines |
If diagnostics point to the I/O module, contact technical support with transmitter details and 3500 configuration screenshots.
6. Frequently Asked Questions (FAQ)
Is this unit new original stock or refurbished? This is New Original / New Surplus from authorized channels. It ships in original packaging with full traceability. We perform inbound inspection and functional testing prior to shipment.
What signals does the 136483-01 handle? It provides isolated inputs for standard 4-20 mA process transmitters used with the 3500/62 monitor.
Why choose external terminations? External terminations simplify field wiring changes and maintenance without removing the module from the rack.
Is the module hot-swappable? Yes, per standard 3500 procedures. Use in redundant configurations where possible to maintain monitoring.
How long is the warranty? We provide a 1-year warranty on tested functional units. Extended options available on request.
Will this serve as a direct replacement? Yes for 3500/62 applications. Confirm isolation needs and match to your existing I/O type.
What comes in the box and do you provide test reports? Standard delivery includes the I/O module. We supply our QC test report with loop current simulation. Test videos and photos available upon request.
