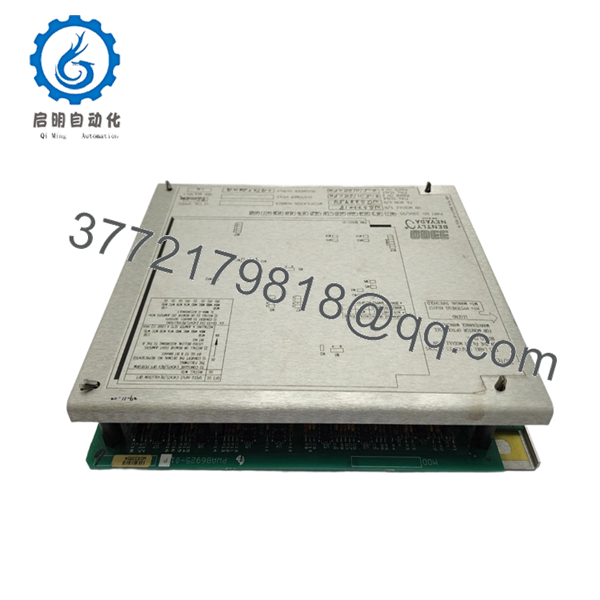

BENTLY NEVADA 3300/95-01-07-04-00-02-13-45-02-00-03-01-00 Vibration Monitor

Description

3. Key Technical Specifications

Parameter	Value
Product Type	Vibration Monitor Module
Model	3300/95-01-07-04-00-02-13-45-02-00-03-01-00
Series	Bently Nevada 3300
Installation	Standard 3300 Rack
Monitoring Function	Continuous machine vibration monitoring
Signal Output	Analog recorder output (option dependent)
Alarm Functions	Alert and Danger alarm monitoring
Front Panel	Bar graph display with status indicators
Configuration	Factory option-code configurable
Compatible Systems	Bently Nevada 3300 Monitoring System
Typical Applications	Steam turbines, gas turbines, compressors, pumps, generators
Product Status	Legacy / Discontinued Platform

This configuration belongs to the 3300/95 Vibration Monitor family used in the legacy 3300 Machinery Protection System. The long option string defines the factory configuration, including measurement range, output scaling, relay options, approvals, and display configuration. The exact functional parameters should always be verified against the original Bently Nevada option code before replacement because different 3300/95 variants are not necessarily interchangeable.



4. Product Introduction

The Bently Nevada 3300/95-01-07-04-00-02-13-45-02-00-03-01-00 is a dedicated vibration monitoring module for the 3300 Machinery Protection System. It continuously measures machinery vibration, provides local indication, generates protection alarms, and supplies analog outputs for DCS or historical data acquisition.

Although the 3300 platform has been superseded by the 3500 Series, thousands of units remain in service worldwide. Plants often keep identical option-coded spare modules to minimize downtime and avoid configuration changes during maintenance. Before installation, verify the complete option code rather than matching only the base model number.



5. Installation & Configuration Guide



Stage 1 – Pre-Installation Preparation (10 Minutes)

⚠️ Safety First

1. Notify operations of the scheduled shutdown.
2. Perform Lock-Out/Tag-Out procedures.
3. Remove power from the 3300 rack.
4. Wait at least five minutes for internal capacitors to discharge.

Tools Required

• Grounded ESD wrist strap
• PH1 screwdriver
• Fluke 115 multimeter
• Wire labels
• Smartphone for documentation

Data Backup

1. Record the complete option code.
2. Photograph the front panel.
3. Photograph rear terminal wiring.
4. Record alarm setpoints.
5. Document transducer type and gap voltage.



Stage 2 – Removing the Existing Module (5 Minutes)

1. Remove the retaining screws.
2. Pull the module straight out using the extractor handles.
3. Inspect the rack connector.
4. Check for bent pins or contamination.

⚠️ Keep the original module until the replacement has completed all operational tests.



Stage 3 – Installing the Replacement (10 Minutes)

1. Wear a grounded ESD wrist strap.
2. Verify the entire option code matches the original module.
3. Insert the monitor evenly into the rack guides.
4. Tighten the retaining screws.
5. Restore any external recorder wiring.

Configuration Checklist

• ☑ Complete option code verified
• ☑ Correct monitor slot
• ☑ Rack connector fully engaged
• ☑ Alarm settings confirmed
• ☑ Recorder outputs connected



Stage 4 – Power-On & Functional Testing (15 Minutes)

Pre-Power Inspection

• Verify rack supply voltage.
• Inspect probe wiring continuity.
• Confirm no short circuits exist.

Power-Up Procedure

1. Energize the rack.
2. Verify normal LED indications.
3. Confirm probe gap voltage.
4. Inject a calibrated vibration signal if available.
5. Verify analog recorder output.
6. Confirm Alert and Danger alarm operation.

⚠️ Troubleshooting

• Incorrect vibration values often result from installing a monitor with a different factory option code.
• Loss of signal is frequently caused by mismatched probe, extension cable, and Proximitor combinations rather than monitor failure.
• If alarms activate immediately after replacement, verify measurement range and alarm settings before replacing additional hardware. Community field experience consistently shows that probe system mismatches are more common than monitor failures.

3300/95-01-07-04-00-02-13-45-02-00-03-01-00

3300/95-01-07-04-00-02-13-45-02-00-03-01-00



Common Replacement Pitfalls

❗ Option Code Mismatch

I’ve seen maintenance teams install another 3300/95 without checking the full 14-field option code. The monitor powered up normally but produced incorrect scaling because the configured measurement range differed from the original.

❗ Probe System Compatibility

The proximity probe, extension cable, and Proximitor must belong to the same calibrated system length and series. Mixing components from different systems can produce inaccurate measurements even though everything appears operational.

❗ Alarm Setpoints

Do not assume factory alarm settings match the existing machine. Record Alert and Danger values before removing the original monitor.

❗ Rack Connector Damage

Never force the module into the rack. If insertion feels difficult, inspect the guide rails and backplane connector before applying pressure.

❗ ESD Protection

Analog monitoring circuitry is sensitive to electrostatic discharge. Always install the module on an ESD-safe work surface while wearing a grounded wrist strap.

Keep these checks in mind and you’ll avoid most commissioning delays and unnecessary troubleshooting.



6. Frequently Asked Questions (FAQ)

Q1. Is this exact option code important?

Yes. The 3300/95 base model identifies the monitor family, but the remaining option code specifies measurement range, output configuration, approvals, relay options, and other factory settings. Match the complete part number whenever possible.

Q2. Can this monitor be hot-swapped?

No. The 3300 Monitoring System was not designed for live replacement. Remove rack power before replacing the module to protect both the monitor and the rack backplane.

Q3. Is the 3300/95 still manufactured?

The 3300 Series is a legacy platform. Most available inventory today consists of New Original (New Surplus) or professionally refurbished units.

Q4. Why does the replacement show incorrect vibration readings?

The most common causes are:

• Incorrect factory option code
• Mismatched probe system
• Incorrect probe gap
• Different measurement range
• Alarm configuration differences

Probe system compatibility should always be verified before replacing additional components.

Q5. Will replacing the monitor erase machine protection settings?

The hardware replacement itself does not change the machine, but alarm settings, recorder scaling, and option-code differences can affect operation. Always document the original configuration before maintenance.

Q6. Why is New Surplus inventory priced below OEM replacement costs?

Most New Surplus inventory originates from canceled projects, plant upgrades, or excess distributor stock. Although unused, these modules are no longer current production. Reputable suppliers should provide serial number verification, functional testing, and documented quality inspection before shipment.

Q7. What quality inspections should be completed before shipment?

A professional quality process should include:

• OEM serial number verification
• Anti-counterfeit inspection
• Visual inspection for corrosion, scratches, or repair marks
• Functional testing in a genuine Bently Nevada 3300 rack
• Analog output verification
• Alarm function testing
• Electrical inspection and connector examination
• Continuous operational burn-in testing
• QC sign-off
• ESD-safe packaging
• Heavy-duty export packaging

Test reports, power-up photographs, and functional verification videos should be available upon request.
