Bently Nevada 330130-040-01-00 3300 XL 4 m Armored Extension Cable

Description

Key Technical Specifications

The ordering code decodes as:

• 330130 – 3300 XL Standard Extension Cable
• 040 – 4.0 m cable length
• 01 – Armored cable
• 00 – No special agency approvals

Product Introduction

The Bently Nevada 330130-040-01-00 is a standard extension cable used within the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor® Sensor while preserving the calibrated electrical characteristics required for accurate shaft vibration and position measurements.

Unlike a generic extension cable, this assembly is part of a factory-calibrated eddy-current measurement system. Cable length, impedance, and capacitance directly affect probe calibration. Replacing it with a non-approved cable can introduce measurement errors that may trigger nuisance alarms or inaccurate vibration readings.

Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (10 Minutes)

⚠️ Safety First

1. Notify operations before maintenance.
2. Perform Lockout/Tagout (LOTO).
3. Allow rotating equipment to come to a complete stop.
4. Wear an ESD wrist strap before handling connectors.

Required Tools

• ESD wrist strap
• Digital multimeter
• Torque wrench
• Cable identification tags
• Smartphone for recording cable routing

Before disconnecting the old cable:

• Photograph both cable ends.
• Record the probe gap voltage.
• Inspect cable routing for mechanical damage.

Stage 2 – Remove the Existing Cable (10 Minutes)

1. Disconnect the extension cable from the Proximitor® Sensor.
2. Disconnect the cable from the proximity probe.
3. Remove cable clamps carefully.
4. Pull the cable through the conduit without excessive force.
5. Inspect connectors for contamination or bent contacts.

⚠️ Never pull the cable by the connector body.

Stage 3 – Install the New Cable (10 Minutes)

1. Verify the replacement part number is 330130-040-01-00.
2. Route the cable away from high-voltage conductors.
3. Maintain the manufacturer’s minimum bend radius.
4. Tighten threaded connectors by hand before final tightening.
5. Secure the armored cable using suitable clamps.

Installation Checklist

• ✔ Correct cable length
• ✔ Armored version installed
• ✔ Connectors fully engaged
• ✔ Cable properly supported
• ✔ No sharp bends

Stage 4 – Commissioning & Functional Test (15 Minutes)

1. Restore monitor power.
2. Measure probe gap voltage.
3. Verify vibration and position readings.
4. Confirm no OK or Alert faults are present.
5. Perform a functional test using the monitoring software.

⚠️ Troubleshooting Tip

If the monitor immediately reports an OK circuit fault after replacement, inspect the connector seating first. Most field failures result from partially threaded connectors or damaged probe connectors rather than a defective extension cable.

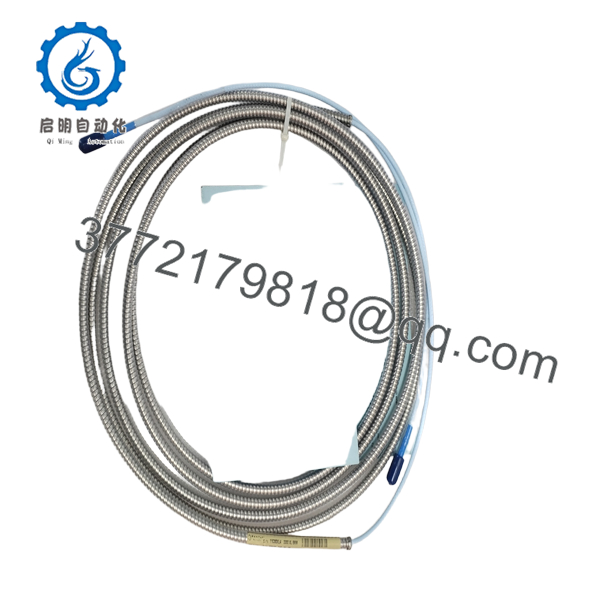

330130-040-01-00

Frequently Asked Questions (FAQ)

Q1. Is this just a standard coaxial cable?

No. The 330130-040-01-00 is a calibrated component of the 3300 XL transducer system. Its electrical characteristics are part of the overall sensor calibration and should not be replaced with commercially available coaxial cable.

Q2. What does the ordering code 040-01-00 mean?

• 040 = 4.0-meter cable
• 01 = Armored cable
• 00 = No special agency approval required

Q3. Can I replace a 4 m cable with a longer one?

Only if the entire transducer system configuration remains within the approved cable combinations specified by Bently Nevada. Changing the total cable length changes the calibration characteristics and may reduce measurement accuracy.

Q4. Which systems use this extension cable?

It is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System, commonly installed on steam turbines, gas turbines, centrifugal compressors, pumps, motors, and other fluid-film bearing machines for shaft vibration and axial position monitoring.

Q5. Is the armored version worth choosing?

For installations where the cable passes through cable trays, conduit, or areas exposed to abrasion or mechanical damage, the armored version provides additional physical protection and generally offers a longer service life than the standard cable.

Q6. What installation mistake causes the most downtime?

The most common mistake is mixing cable lengths during replacement. I’ve seen maintenance teams install a 4 m cable where the original system used a different calibrated length because the connectors matched. The machine started normally, but vibration values drifted outside expected limits. Always verify the complete part number—not just that it is a “3300 XL cable.”
