3. Key Technical Specifications
| Parameter | Specification Value |
| Full Option String | 3500/05-01-01-00-00-00 |
| Rack Size Option (-01) | Standard 19-inch rack mount configuration |
| Backplane Option (-01) | Standard backplane (supports standard non-isolated data handling) |
| Agency Approval Option (-00) | None (Standard global base certification) |
| Reserved Space Option (-00) | Standard factory baseline configuration |
| Display Option (-00) | No integrated front display included |
| Total Available Slots | 16 half-slots total (2 dedicated for dual-redundant power supplies, 14 for instrument modules) |
| Mounting Position | Fits standard EIA 19-inch electronic equipment racks/cabinets |
| Backplane Connectors | High-density multi-pin internal data and power rails |
| Material Construction | Heavy-gauge zinc-plated steel frame with aluminum guide rails |
| Dimensions (H x W x D) | 266 mm x 483 mm x 349 mm (10.5 in x 19.0 in x 13.75 in) — 6U size |
| Weight | Approximately 7.1 kg (15.7 lbs) empty configuration |
4. Product Introduction & Supply Chain Strategy

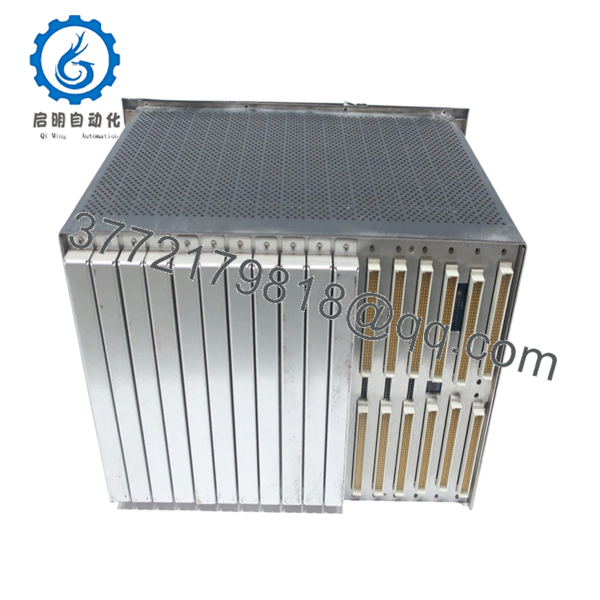

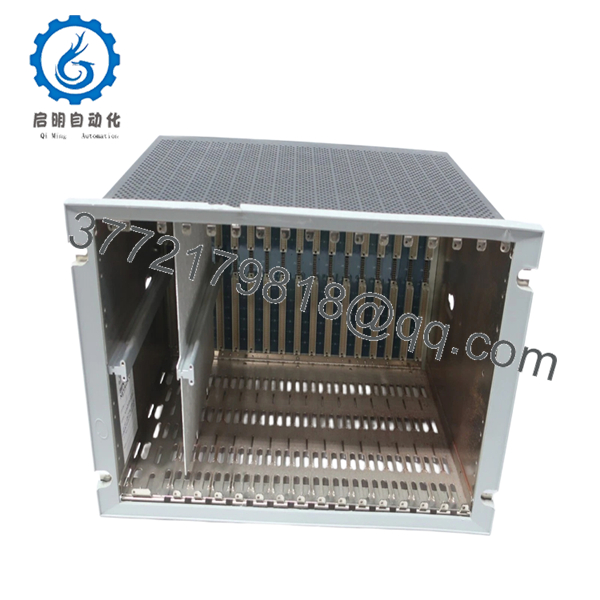

The Bently Nevada 3500/05-01-01-00-00-00 is the primary 19-inch structural chassis and high-density backplane interface designed to host the entire 3500 Series Machinery Protection System. This 6U industrial rack housing provides stable power distribution and high-speed data communications pathways for up to 14 individual vibration, position, and temperature monitoring cards, alongside the mandatory Power Supply and Rack Interface Modules (RIM).
From a logistics and lifecycle perspective, the rack chassis acts as the single point of failure for all combined machinery protection lines. If a backplane track shorts out or suffers physical pin damage during an overhaul, every single monitoring channel in that chassis immediately goes dark, blinding your maintenance teams. Sourcing a verified Brand New Surplus rack frame avoids the structural fatigue, rusted backplane traces, and pin corrosion risks found in used alternatives. It delivers immediate turnaround availability without long factory lead times, protecting your operations and lowering your long-term Total Cost of Ownership (TCO).
- 3500/05-01-01-00-00-00
- 3500/05-01-01-00-00-00
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
Verify that your cabinet space has exactly 6U of clear vertical height and can handle a fully populated rack weight (~20 kg with modules). Ensure all primary power cables are isolated and locked out before attempting installation. Always use a grounded anti-static wrist strap when handling the exposed rear backplane connections to prevent electrostatic damage to the embedded bus termination resistors.
Stage 2: Removal
If you are replacing an existing populated chassis, mark and disconnect every rear terminal block, I/O cable, and Modbus line. Remove all power supplies and monitor modules from the front to lighten the assembly. Support the base of the empty rack frame, loosen the four front-panel EIA mounting screws from the cabinet rails, and slide the heavy steel frame straight out toward you.
Stage 3: Installation (Clone & Seat)
Lift the new 3500/05-01-01-00-00-00 chassis into position against the cabinet rails. Secure the rack frame using four heavy-duty matching 10-32 pan-head screws, torquing them to secure a flush fit against the rail face. Before inserting modules, examine the interior lanes using a flashlight to confirm that no manufacturing debris or loose hardware is sitting inside the backplane sockets.
Stage 4: Power-On & Testing
Re-seat your 3500 power supplies into the two leftmost slots, followed by the Rack Interface Module (RIM). Turn on the primary supply line and confirm that the chassis power buses read stable DC voltages. Check that the backplane data links connect successfully by linking your laptop to the RIM via the 3500 Rack Configuration Software, verifying that all 14 instrument slots register properly in the system profile before inserting the remaining monitoring modules.
6. Firmware/Software Versions & Upgrade Notes
While the 3500/05-01-01-00-00-00 steel frame does not contain a programmable flash memory chip, the integrated circuit board backplane features an internal bus configuration that must align with your system hardware generation.
This standard backplane version (-01) requires proper slot addressing settings when you build your machine profile inside the 3500 Rack Configuration Software utility. If your plant is converting from an older legacy or custom backplane variant to this standard configuration, you will need to update your software rack model layout to prevent data mismatch faults. Never force modules with mismatched physical guide alignment tabs into the slots, as doing so will permanently warp the high-density backplane receiver contacts and corrupt data transfers across neighboring monitoring channels.
7. Frequently Asked Questions (FAQ)
What does the option code sequence -01-01 indicate for this rack model?
The first “-01” option code configures the chassis as a standard 19-inch rack-mount frame designed to fit inside standard EIA industrial panels. The second “-01” code indicates that the frame is built with the Standard Backplane configuration, which handles typical high-speed internal bus messaging for regular monitoring operations.
How many monitoring cards can I physically fit into this 3500/05 chassis?
The chassis features 16 physical half-slots in total. The two leftmost slots are dedicated exclusively to housing your primary and secondary redundant 3500/15 power supply modules. Slot 1 is reserved for the mandatory 3500/22 Rack Interface Module (RIM). This leaves the remaining 14 slots completely open for any combination of vibration, thrust, temperature, or relay modules your machinery loop requires.
Can I replace an old backplane in the field without changing the whole steel frame?
While the internal backplane PCB assembly can technically be unbolted from the frame, doing so in a field environment is highly risky. It increases the chance of misalignment, twisted frames, and loose connections. Replacing the entire new surplus 3500/05 chassis as a complete unit guarantees precise structural alignment and solid factory-assembled connections, saving you hours of labor and protecting your backplane pins from installation damage.
Why is buying a new surplus rack chassis safer than sourcing a refurbished one?
Chassis backplanes are exposed to continuous vibration, thermal cycles, and potential chemical vapors inside plant control rooms. Refurbished frames frequently suffer from hidden hair-line cracks in the internal PCB traces, worn connector clips, or corroded ground plates that are missed during external cleanings. A Brand New Surplus frame gives you pristine, uncompromised signal pathways and zero connector fatigue, ensuring dependable asset protection for decades.
Does this specific rack come with an integrated front display module?
No, the fifth option digit “-00” means this configuration is a standard blank-front rack panel with no integrated display. If your maintenance workflow requires a local layout, you will need to install an external display unit or choose a 3500/05 option code that includes the front-panel display face interface.
What kind of warranty coverage applies to this new surplus chassis?
We back this new surplus Bently Nevada 3500/05 rack chassis with a full 12-month replacement warranty. If you experience any technical tracking or structural hardware issues within one year from your purchase date, we will swap out the chassis or credit your account, ensuring your procurement process is completely protected.
