3. Key Technical Specifications
| Parameter | Specification Value |
| Full Part Number | 125840-02 (Legacy equivalent of newer 3500/15 configurations) |
| Input Voltage Range | 85 to 132 VAC (Nominal 110 VAC) |
| Input Frequency | 47 to 63 Hz |
| Max Power Consumption | 175 W maximum continuous load capability |
| Efficiency Rating | 75% minimum at full rated load |
| Output Voltage Supplied | Regulated +5 VDC, +15 VDC, −15 VDC to backplane |
| Form Factor | Half-slot module (installs in designated left-side slots) |
| Redundancy Support | Dual-supply compatible (supports upper/lower slot load-sharing) |
| Insulation Resistance | 100 MΩ minimum at 500 VDC |
| Operating Temperature | −30 to +65°C (−22 to +149°F) |
| Weight | Approximately 1.39 kg (3.1 lbs) |
4. Product Introduction & Supply Chain Strategy
The Bently Nevada 3500/15 125840-02 is a high-availability, half-slot power supply module engineered to source stable, regulated operating voltages to the internal processing cards and external monitoring transducers inside a 3500 machinery protection rack. Operating within a low-voltage AC threshold of 85 to 132 VAC, this component isolates downstream electronic modules from line-side transients and voltage sags, ensuring that continuous vibration, displacement, and temperature loops remain fully functional under changing industrial electrical conditions.
From a procurement perspective, the power supply remains the most frequent point of failure in any aging electronic chassis. Because a total failure of this single module blinds the entire protection system and can trigger emergency interlocks on your primary turbines or compressors, buying verified New Surplus inventory represents a smart risk-management choice. Choosing new surplus parts over cheaper refurbished units protects your team from degraded electrolytic capacitors, which are common failure points in secondhand units, ensuring your facility maintains uninterrupted safety monitoring with genuine OEM reliability.
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
Isolate and tag out the incoming AC power feeder lines supplying the 3500 rack. Fasten a grounded anti-static wrist strap to your arm and attach the alligator clip to an unpainted section of the main system enclosure. If this rack operates with dual-redundant power supplies and the machinery must remain online, confirm that the secondary power supply LED is lit and functioning perfectly before touching the module to be replaced.
Stage 2: Removal
Loosen the two captive thumb screws on the faceplate of the 125840-02 module using a flat-head screwdriver. Unplug the AC input power cord from the corresponding rear terminal assembly. Grasp the module ejector tabs firmly, pull them outward simultaneously to break the backplane mechanical connection, and carefully slide the module straight out along its guiding rails to avoid scratching nearby components.
Stage 3: Installation (Clone & Seat)
Verify that the replacement module matches the 125840-02 specifications exactly. Align the power supply housing with the guide tracks in the designated left-hand power slot of the chassis. Slide the module completely backward until the rear multi-pin connector touches the backplane alignment pins, then press the ejector handles inward to seat the power supply firmly into place. Hand-tighten the front panel captive screws.
Stage 4: Power-On & Testing
Plug the AC power input cable into the rear terminal connector block. Restore line voltage from your primary breaker and watch the front panel diagnostic display. The green “SUPPLY OK” LED must illuminate immediately, and the red “FAULT” LED must stay off. If you are using a dual-redundant configuration, confirm that both power modules show matching green status lights, showing successful parallel load-sharing across the backplane rails.

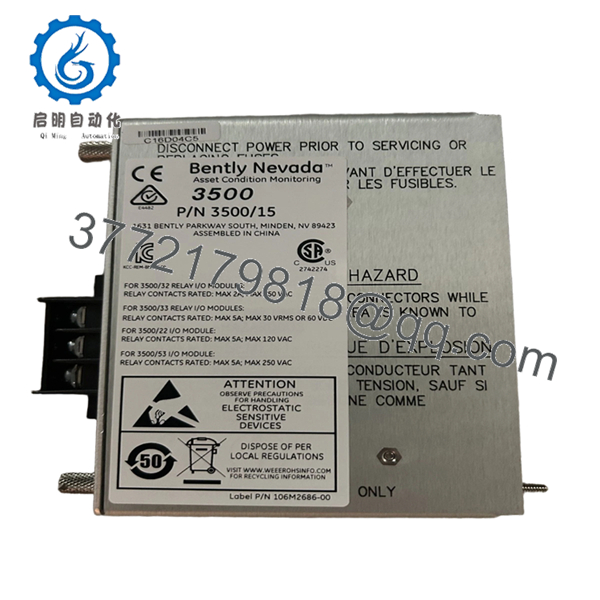

- 3500/15 125840-02
6. Firmware/Software Versions & Upgrade Notes
The 3500/15 125840-02 power supply functions primarily as a hardware-driven power converter and does not run complex embedded software applications. However, its physical circuit architecture and internal transformer configurations must remain fully compatible with the backplane revision of your specific 3500 rack chassis.
When conducting a hardware swap, ensure that your rack configuration software (3500 Rack Configuration) properly logs the presence of the power module for correct diagnostics. Replacing an older power component with an unverified hardware variation can occasionally throw a configuration warning if the backplane slot addresses are not mapped correctly. Never attempt to mix a low-voltage AC power supply with a high-voltage DC module in the same redundant slot pairing, as doing so will unbalance the internal load sharing and cause an immediate rack fault.
7. Frequently Asked Questions (FAQ)
What is the exact difference between the 3500/15 and part number 125840-02?
The “3500/15” represents the overall model name for the entire power supply series within the machinery protection ecosystem. The number “125840-02” is the exact OEM manufacturing part number assigned to the low-voltage AC hardware variation, designed to run specifically on nominal 110 VAC inputs.
Can I hot-swap this power supply while the machinery protection rack is live?
Yes, you can hot-swap the 125840-02 module only if your 3500 chassis is configured with a dual-redundant power supply setup and the second supply module is currently running without faults. The healthy supply will automatically assume the full internal electrical load, allowing you to pull the damaged card without disrupting active machinery protection loops. If your rack uses only a single power supply, pulling the module will instantly shut down the entire rack.
Why should we buy a New Surplus supply instead of a cheaper refurbished one?
Power supplies run hot and rely heavily on internal electrolytic capacitors, which degrade steadily over time from heat exposure. A refurbished or used power supply often retains its original, worn capacitors despite external cleaning. Purchasing a Brand New Surplus unit guarantees you are getting fresh, zero-hour internal components that offer a true 10-to-15-year operational life expectancy, preventing premature failures that could lead to catastrophic plant downtime.
Does this item ship in its original factory packaging?
Yes. Our New Surplus units are stored and shipped in their original, anti-static OEM packaging boxes. These boxes are opened exclusively by our warehouse quality control staff to confirm physical part numbers, check for shipping damage, and complete inbound electrical verification before being securely resealed for dispatch.
What should I do if the red “FAULT” light turns on right after installation?
If the red FAULT light illuminates, immediately isolate the power source and pull the card to check the backplane connector pins for bends or alignment damage. If the physical pins are straight, check the incoming voltage with a multimeter to ensure it is within the 85 to 132 VAC limits. If the input power is correct and the fault light persists on a clean slot, contact our support team to start a quick warranty replacement.
