BENTLY NEVADA 3500/15 133292-01 Low Voltage DC Power Supply

3. Key Technical Specifications

The 133292-01 is the Low Voltage DC Power Supply Module for the 3500/15 system. It accepts a 20–30 VDC input and converts it into regulated internal voltages for the entire 3500 rack. When two power supplies are installed, one operates as the primary unit while the second serves as an automatic backup.

4. Product Introduction

The Bently Nevada 3500/15 133292-01 is a half-height Low Voltage DC Power Supply Module designed for the 3500 Machinery Protection System. Installed on the left side of the rack, it provides stable operating power for vibration monitors, communication modules, relay modules, and other system components.

The module is widely used in power generation, oil and gas, petrochemical, and heavy industrial applications where 24 VDC plant power is available. For high-availability systems, two power supplies can be installed in a redundant configuration, allowing one module to maintain rack operation if the other fails or is removed.

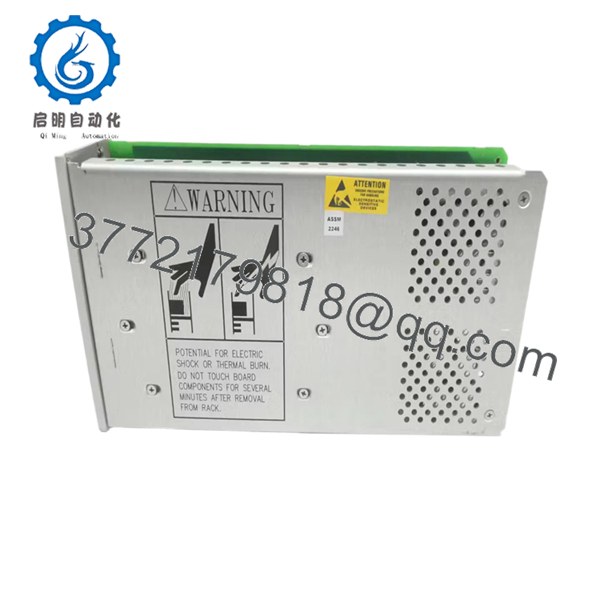

3500/15 133292-01

5. Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (10 Minutes)

⚠️ Safety First

1. Notify operations of scheduled maintenance.
2. Follow Lock-Out/Tag-Out procedures.
3. Verify the 24 VDC supply has been isolated.
4. Wait at least five minutes before handling the rack.

Tools Required

• Grounded ESD wrist strap
• Phillips screwdriver
• Fluke 115 multimeter
• Wire markers
• Smartphone for documentation

Data Backup

1. Record the rack configuration.
2. Photograph the rear Power Input Module (PIM).
3. Verify the installed PIM is 133300-01.
4. Record input voltage.
5. Check redundancy configuration if two supplies are installed.

Stage 2 – Removing the Existing Module (5 Minutes)

1. Remove the retaining screws.
2. Pull the module straight from the rack.
3. Inspect the connector for contamination or bent contacts.
4. Verify the PIM remains secure.

⚠️ If only one power supply is installed, the rack will shut down when the module is removed.

Stage 3 – Installing the New Module (10 Minutes)

1. Wear a grounded ESD wrist strap.
2. Verify the replacement part number is 133292-01.
3. Confirm the rack uses the Low Voltage DC configuration.
4. Slide the module fully into the guide rails.
5. Tighten the retaining screws.

Self-Checklist

• ☑ Correct module installed
• ☑ Correct PIM installed
• ☑ Connectors fully engaged
• ☑ Module firmly seated
• ☑ Rack wiring verified

Stage 4 – Power-On & Functional Testing (10–15 Minutes)

Pre-Power Inspection

• Verify 20–30 VDC input.
• Check protective grounding.
• Confirm correct polarity.

Power-Up Procedure

1. Apply DC power.
2. Verify normal power indicators.
3. Confirm all rack modules initialize correctly.
4. Observe communication with the Rack Interface Module.
5. Verify redundant supply status if installed.

⚠️ Troubleshooting

• No rack power generally indicates incorrect input voltage or a PIM wiring issue.
• If the rack does not recognize the redundant supply, verify that both modules are the correct type and are installed with compatible Power Input Modules.
• Low input voltage can produce intermittent monitor resets before an outright power failure occurs.

Common Replacement Pitfalls

❗ Wrong Power Supply Type

One of the easiest mistakes is ordering the correct 3500/15 family but the wrong input voltage version. 133292-01 is specifically the Low Voltage DC (20–30 VDC) model.

❗ Incorrect Power Input Module

The power supply and PIM must be matched. 133292-01 is intended to work with the 133300-01 Low Voltage DC Power Input Module. Mixing legacy and newer PIMs can prevent proper operation.

❗ Redundancy Assumptions

I’ve seen technicians assume every rack has redundant power. Before removing a supply, check whether a second module is installed. If not, removing the only supply will shut down the entire monitoring system.

❗ DC Polarity

Always verify polarity before energizing. Reversed DC wiring can damage the input circuitry or blow the input fuse.

❗ ESD Protection

Although it is a power module, it still contains sensitive control electronics. Use an ESD strap and avoid touching connector pins.

Keep these checks in mind and you’ll avoid most power-related commissioning problems.

6. Frequently Asked Questions (FAQ)

Q1. What is the function of the 133292-01?

It converts a 20–30 VDC input into the regulated voltages required by all modules in the Bently Nevada 3500 rack.

Q2. Can two 133292-01 modules be installed in one rack?

Yes. The 3500 rack supports redundant power supplies. The lower module normally operates as the primary supply, while the upper module serves as the backup. If the primary fails, the backup continues powering the rack.

Q3. Is the module hot-swappable?

Yes, provided a second redundant power supply is installed and operating. If the rack contains only one power supply, removing it will interrupt power to the entire system.

Q4. What input voltage does the 133292-01 require?

The module is designed for 20–30 VDC input and should be paired with the matching 133300-01 Low Voltage DC Power Input Module.

Q5. Can this module replace an AC power supply?

No. The AC and DC versions of the 3500/15 use different power supply and Power Input Module combinations. Verify the complete part numbers before ordering.

Q6. Why is New Surplus inventory less expensive than OEM pricing?

Most New Surplus modules originate from canceled projects, excess distributor inventory, or plant upgrades. They have not been placed into service but are no longer current production. A reputable supplier should provide serial number verification, functional testing, and documented QC records before shipment.

Q7. What quality inspections should be completed before shipment?

A comprehensive inspection should include:

• OEM serial number verification
• Anti-counterfeit inspection
• Visual inspection for corrosion, scratches, or repair marks
• Power-up testing on a genuine Bently Nevada 3500 rack
• Verification of 20–30 VDC input operation
• Redundancy switching test (when applicable)
• Burn-in testing under load
• QC sign-off
• ESD-safe packaging
• Heavy-duty export packaging

Functional test reports, power-up photographs, and load-test videos should be available upon request.
