Bently Nevada 3500/40M 350040-01-00 176449-01 Proximitor Monitor

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Bently Nevada 350040-01-00 with 176449-01 main processing card provides 4-channel continuous machinery protection by processing radial vibration, axial position, and seismic signals. It compares measured variables directly against user-configured alarm setpoints to trigger automatic machine shutdown logic before major mechanical damage occurs.

Procuring this assembly as New Surplus optimizes capital efficiency while maintaining complete plant reliability. It bypasses lengthy OEM manufacturing lead times and eliminates the risk of drifted ADC calibration or degraded signal conditioning circuits inherent in refurbished cards, securing uncompromised protection for critical rotating assets.

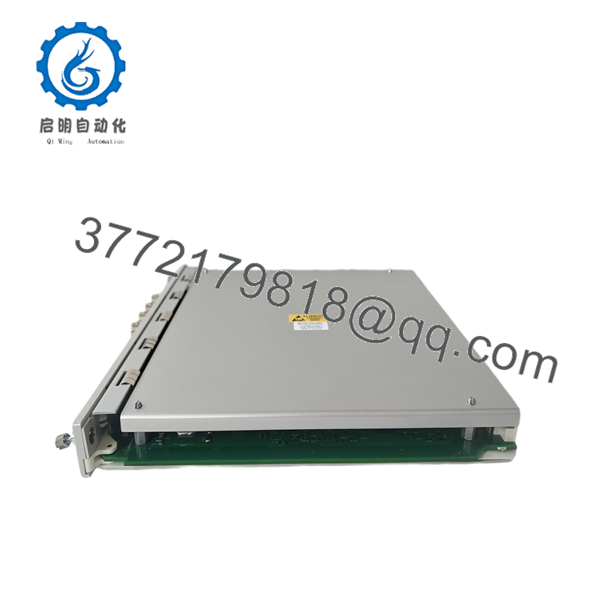

350040-01-00 176449-01

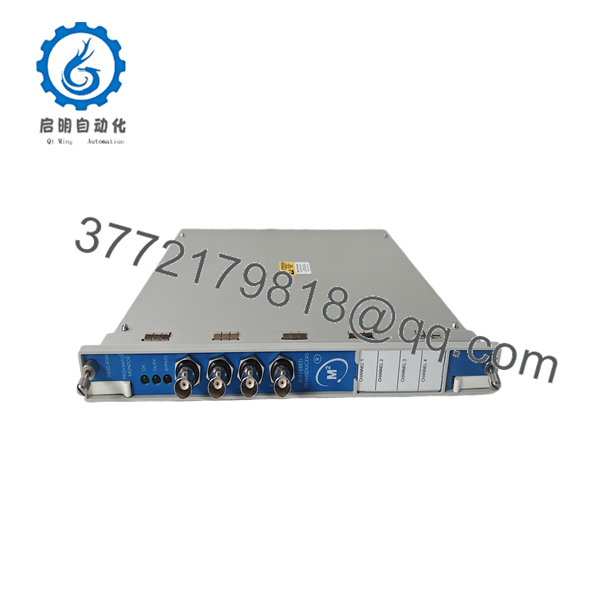

350040-01-00 176449-01

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify that sensor input lines (Proximitor, Velomitor, or Accelerometers) are isolated or that machinery trip logic is placed in bypass mode.
2. Put on a grounded anti-static wrist strap attached to the metal rack chassis to protect sensitive internal signal processing circuitry.
3. Record current sensor scale factors (e.g., 200 mV/mil for standard proximity probes) and transducer supply voltage requirements.
4. Photograph existing wiring on the rear I/O module to ensure correct terminal identification.

Stage 2: Removal

1. Unplug the 4-channel input terminal blocks from the rear I/O card connected to the 3500/40M slot.
2. Loosen the top and bottom thumbscrews on the front 350040-01-00 / 176449-01 module using a flathead screwdriver.
3. Unlatch the ejector levers to disengage the card edge connectors from the 3500 backplane.
4. Carefully pull the module straight out along the guide rails without twisting.

Stage 3: Installation (Clone & Seat)

1. Align the 176449-01 processing card with the slot guide rails in the front of the 3500 rack.
2. Slide the module in smoothly until the rear edge connector contacts the backplane.
3. Firmly press the ejector levers closed to seat the module, then tighten the top and bottom thumbscrews to 0.6 N·m.
4. Reattach the field wiring harness to the rear I/O module.

Stage 4: Power-On & Testing

1. Apply power to the rack and monitor the front panel LEDs: the green OK LED should turn solid within 10 seconds post-boot.
2. Connect via Bently Nevada 3500 Configuration Software to verify module detection, channel type assignment, and transducer scale factors.
3. Connect a multimeter to the front panel buffered coaxial outputs to verify DC raw sensor voltage (e.g., −10 V DC gap voltage).
4. Perform a zero/span check or inject a signal generator test to verify channel alarm setpoints and trip logic.

Firmware/Software Versions & Upgrade Notes

• Recommended Firmware: Firmware Version 2.10 or higher is recommended for the 3500/40M Proximitor Monitor.
• System Software Compatibility: Requires Bently Nevada 3500 System Configuration Software Version 3.50 or higher.
• Hardware Dependencies: Compatible with 3500/20 RIM and 3500/22M TDI modules running firmware Version 3.00 or higher.
• Transducer Type Mismatch Warning: Never reconfigure a channel type (e.g., shifting from Radial Vibration to Thrust Position) on a live module without first updating the corresponding sensor scale factor and trip delay parameters in software; incorrect scale factor settings cause false trips or unmonitored vibration conditions.

Frequently Asked Questions (FAQ)

What is the primary difference between the 3500/40M and standard 3500/42M modules?

The 3500/40M is a dedicated 4-channel Proximitor/Seismic monitor designed specifically for continuous vibration, position, and shaft dynamic measurements. The 3500/42M is a broader Proximitor/Seismic monitor that adds support for additional specialty measurements like position/eccentricity variations. Both provide 4-channel processing, but sensor option software templates differ.

Are these 176449-01 modules original Bently Nevada manufacture?

Yes. We supply 100% genuine OEM New Surplus units sourced from surplus capital projects and authorized distributor inventories. Every unit remains in its original anti-static packaging and undergoes thorough visual pin inspection and serial number verification before dispatch.

Why avoid refurbished or repaired 176449-01 vibration cards?

Vibration processing cards rely on precision operational amplifiers and high-resolution analog-to-digital converters (ADCs). Refurbished cards often exhibit component age-drift, leading to false vibration spikes or missed trip levels. The potential cost of an unmonitored bearing failure far exceeds the small savings of buying used electronics.

Can I monitor buffered raw signals directly from the front panel?

Yes. The 350040-01-00 module features 4 front-panel BNC/coaxial buffered output connectors (1 per channel). These short-circuit protected outputs provide unfiltered raw dynamic signals for real-time oscilloscope diagnosis or portable FFT spectrum analyzers without interrupting machine protection logic.

Does replacing this module require recalibrating the connected proximity probes?

No. Sensor calibration (voltage-to-gap ratio) is governed by the Proximitor sensor and probe hardware. When installing the replacement 3500/40M card, simply download the existing channel configuration (scale factor, transducer type, and alarm limits) to the card using 3500 Rack Configuration Software.

What warranty is provided with this New Surplus monitor card?

All 350040-01-00 / 176449-01 assemblies include a comprehensive 1-year replacement warranty, a Certificate of Quality Verification, and anti-static shipping protection.
