Bently Nevada 3500/42M 4-Channel Vibration Monitor Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Bently Nevada 3500/42M Proximitor Seismic Monitor is a core 4-channel processing card designed for continuous machinery protection. It accepts signals from eddy current proximity probes, accelerometers, and velocity sensors to measure shaft vibration, casing movement, axial position, and bearing wear across critical turbines, compressors, and industrial gearboxes.

Securing this module as New Surplus offers a clear Total Cost of Ownership (TCO) advantage. Sourcing genuine New Surplus avoids long factory lead times while protecting your plant against the severe risks of second-hand units. Used or refurbished vibration cards frequently exhibit hidden analog degradation, drifted A/D converters, and weakened relay drivers. These flaws can trigger false trips or, worse, miss real mechanical faults. Investing in factory-fresh surplus guarantees OEM-level accuracy, protects capital equipment, and eliminates unplanned shutdown costs.

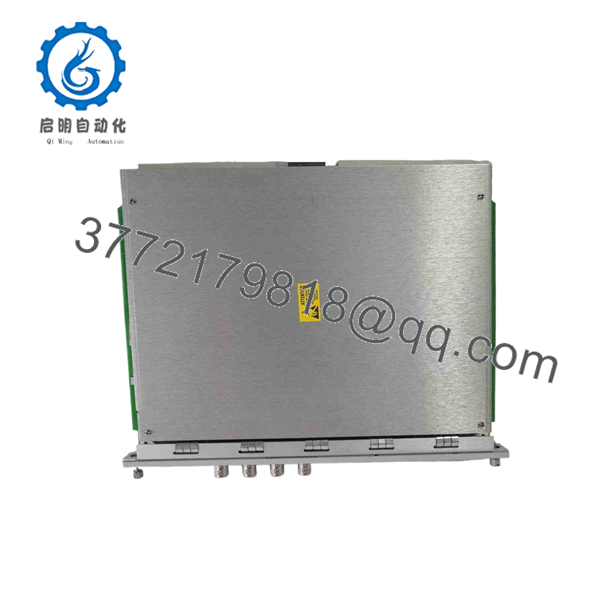

3500/42M

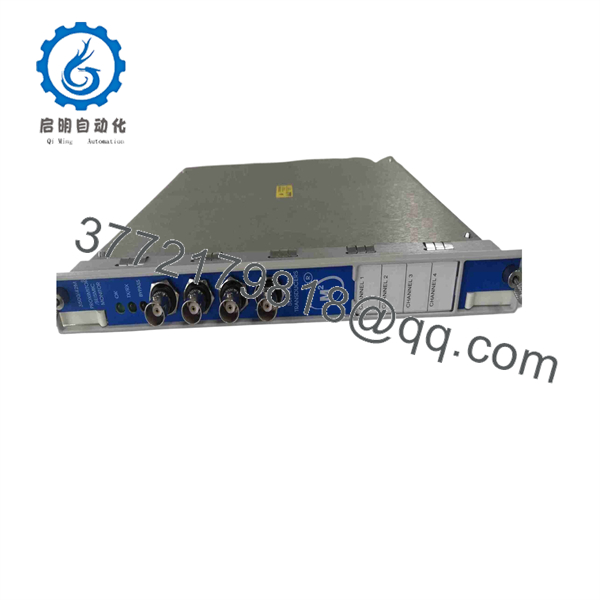

3500/42M

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Perform Lock-Out/Tag-Out (LOTO) on connected machinery trip circuits to prevent accidental trip signals during maintenance.
2. Put on an anti-static wrist strap connected to cabinet earth ground. ESD discharge can instantly ruin sensitive signal-conditioning circuits.
3. Export and record the channel configuration file from the 3500 Rack Configuration Software before pulling the legacy card.
4. Photograph the rear I/O module field wiring to confirm probe driver wiring locations.

Stage 2: Removal

1. Loosen the upper and lower captive screws on the 3500/42M front panel using a flathead screwdriver.
2. Pull both ejector levers outward simultaneously to unseat the card connectors from the backplane.
3. Slide the module straight out along the guide rails without twisting to avoid damaging backplane pins.
4. Unscrew and remove the corresponding rear I/O module if replacing the back end assembly.

Stage 3: Installation (Clone & Seat)

1. Install the matching rear I/O module first, tightening the mounting screws to 0.6 N·m (5 in-lb).
2. Align the new 3500/42M main card into the top and bottom guide rails of the designated slot.
3. Slide the card in smoothly until the ejector levers contact the chassis frame, then press both levers inward to lock the card flush.
4. Reattach the field wiring terminal block connectors to the rear I/O module.

Stage 4: Power-On & Testing

1. Verify cabinet DC power supply levels are stable before applying rack power.
2. Observe the front panel LEDs: The green OK LED must light up solid, indicating a successful self-test.
3. Connect a dynamic signal analyzer or oscilloscope to the front panel BNC outputs to check raw probe signals.
4. Upload card status in the 3500 System Monitor software to verify live channel readings and alarm limits.

Firmware/Software Versions & Upgrade Notes

• Recommended Firmware: Version 4.10 or higher for full feature support across modern 3500 Transient Data Manager (TDM) and Rack Interface Modules.
• Software Requirement: Requires Bently Nevada 3500 Rack Configuration Software Version 5.0 or later.
• Compatibility Caution: Replacing older 3500/42 cards (non-M variants) with the 3500/42M requires updating the rack configuration file. The ‘M’ designation indicates Enhanced Monitor capability with expanded filter choices and faster processing.
• Upgrade Warning: Never attempt firmware flashes on a 3500/42M module while the machine is actively running. Re-flashing interrupts channel signal processing, which causes downstream relay modules to drop or latch alarm states. Always execute firmware maintenance during scheduled plant turnarounds.

Frequently Asked Questions (FAQ)

Q: Is this 3500/42M card brand new or refurbished? A: This module is 100% Brand New Surplus. It has never been placed in service, installed in a production rack, or pulled from a decommissioned facility. It comes in original factory packaging and passes a complete physical and functional QC bench test prior to shipment.

Q: Why choose New Surplus over refurbished or factory-direct orders? A: Buying New Surplus gives you immediate access to genuine OEM hardware at 20% to 30% below factory list prices, bypassing typical 12 to 16 week OEM factory lead times. Refurbished vibration cards carry significant risks due to component aging and thermal fatigue, which can cause spurious machinery trips costing thousands of dollars per hour.

Q: Can the 3500/42M handle both proximity probes and accelerometers simultaneously? A: Yes, each of the 4 channels can be individually configured in software to accept different transducer types. For example, Channels 1 and 2 can monitor Proximitor probes for radial shaft vibration, while Channels 3 and 4 accept seismic accelerometers or Velomitor sensors for casing vibration.

Q: Is the 3500/42M card hot-swappable? A: Yes, 3500 main monitoring modules support hot-swapping under live rack power. However, pulling the module disables all 4 active monitoring channels. Before removing the card, ensure all connected automatic shutdown/trip channels are placed in bypass mode at the DCS or ESD safety system level.

Q: How do you verify quality and ensure static protection before dispatch? A: Every unit follows a strict 5-step quality protocol: serial number verification against OEM records, live backplane powering and handshake testing, insulation check, firmware level verification, and ESD-safe sealed packaging inside anti-static bags with custom foam casing.

Q: What warranty coverage applies to this module? A: We provide a 1-Year Comprehensive Replacement Warranty with this New Surplus 3500/42M card. If any operational defect occurs within 12 months, we replace the card immediately from our dedicated safety stock.
