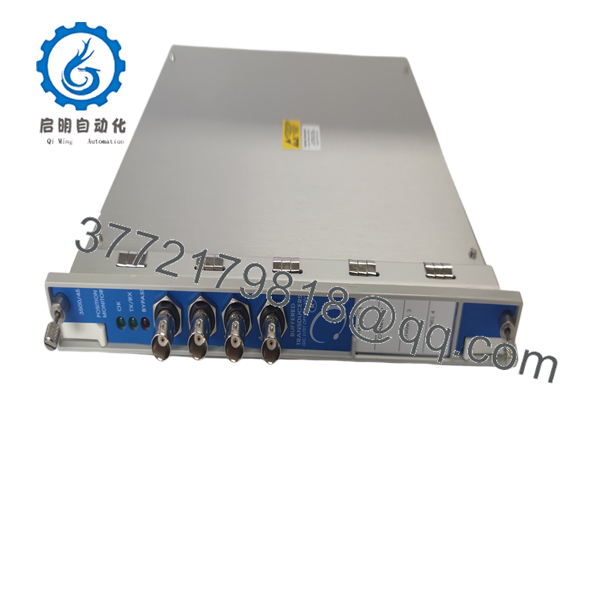

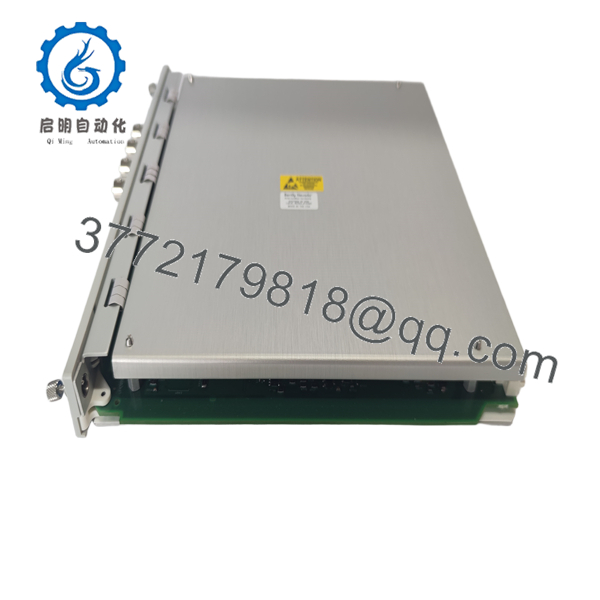

Bently Nevada 3500/45 4-Channel Position Monitor

  • Model: 3500/45
  • Brand: Bently Nevada
  • Series: 3500 Machinery Protection System
  • Core Function: Shaft position and expansion monitoring
  • Product Type: 4-Channel Position Monitor
  • Key Specs: Four independent input channels, multiple transducer support, programmable alarm setpoints
  • Condition: New Original / New Surplus (subject to inventory verification)
Get a Quote
Categories: , , , , SKU: 3500/45 Brand:

Description

Key Technical Specifications

Parameter Value
Manufacturer Bently Nevada
Product Model 3500/45
Product Family 3500 Machinery Protection System
Monitor Channels 4
Supported Sensors Proximitor®, RPT, DC LVDT, AC LVDT, Rotary Potentiometer
Measurement Types Axial Position, Differential Expansion, Case Expansion, Valve Position
Configuration Software 3500 Rack Configuration Software
Alarm Processing User-programmable Alert and Danger Setpoints
Rack Installation One full-height front slot
Typical Operating Temperature -30 °C to +65 °C
Storage Temperature -40 °C to +85 °C
Typical Applications Steam Turbines, Gas Turbines, Compressors, Pumps

The 3500/45 Position Monitor is a four-channel monitoring module that conditions position-related sensor signals and compares them against user-configurable alarm limits for continuous machinery protection.



Product Introduction

The Bently Nevada 3500/45 Position Monitor is designed for continuous online monitoring of shaft position and mechanical expansion in rotating equipment. It accepts signals from proximity transducers, Rotary Position Transducers (RPTs), AC and DC LVDTs, and rotary potentiometers, making it suitable for turbine supervisory instrumentation (TSI) applications.

Unlike vibration-only monitors, the 3500/45 specializes in measuring axial position, differential expansion, case expansion, and valve position. Engineers commonly install it in steam turbines, gas turbines, and compressors where accurate shaft movement monitoring is essential for machine protection and safe operation.

3500/45
3500/45
3500/45
3500/45



Installation & Configuration Guide



Stage 1 – Pre-Installation Preparation (10 Minutes)

⚠️ Safety First

  1. Notify plant operations before shutdown.
  2. Lock out and tag out all power sources.
  3. Allow the rack to discharge for at least five minutes.
  4. Wear an ESD wrist strap before handling the module.

Required Tools

  • Phillips screwdriver
  • Digital multimeter
  • ESD wrist strap
  • Wire labels
  • Smartphone for wiring documentation

Before Removal

  • Save the existing 3500 rack configuration.
  • Record firmware revision.
  • Photograph terminal wiring and any configuration switches.



Stage 2 – Removing the Existing Module (5 Minutes)

  1. Remove the front panel.
  2. Label every field cable.
  3. Disconnect wiring carefully.
  4. Release the retaining mechanism.
  5. Pull the module straight out to avoid damaging backplane connectors.

⚠️ Keep the original module available until the replacement has completed commissioning successfully.



Stage 3 – Installing the New Module (10 Minutes)

  1. Confirm the replacement model and I/O option match the original.
  2. Verify the correct Position I/O module is installed.
  3. Insert the monitor completely into the rack.
  4. Tighten retaining hardware.
  5. Reconnect all field wiring according to the documented layout.

Installation Checklist

  • ✔ Correct model verified
  • ✔ I/O module matches application
  • ✔ Wiring secured
  • ✔ Module fully seated



Stage 4 – Power-On & Commissioning (10 Minutes)

  1. Restore rack power.
  2. Verify normal LED status.
  3. Connect using 3500 Rack Configuration Software.
  4. Confirm channel configuration.
  5. Verify sensor scaling.
  6. Test alarm setpoints.
  7. Validate measurements before returning the machine to service.

⚠️ If the monitor fails to communicate, verify firmware compatibility, rack configuration, and the installed I/O module before suspecting hardware failure.



Frequently Asked Questions (FAQ)

Q1. What measurements can the 3500/45 perform?

It supports:

  • Axial (thrust) position
  • Differential expansion
  • Case expansion
  • Valve position

The exact measurement depends on the installed transducer and I/O module.

Q2. Which sensors are compatible?

The monitor accepts:

  • Bently Nevada Proximitor® transducers
  • Rotary Position Transducers (RPT)
  • AC LVDTs
  • DC LVDTs
  • Rotary potentiometers

Q3. Can I replace only the monitor and keep the existing I/O module?

Only if the replacement has the same ordering options and I/O configuration. Always verify the part number suffix because different options support different transducer types.

Q4. Is the 3500/45 still used in modern plants?

Yes. It remains widely deployed in steam turbine and compressor protection systems, especially where precise shaft position and expansion measurements are required as part of a Bently Nevada 3500 rack.

Q5. Can the module be hot-swapped?

No. Powering down the rack before replacement is the recommended practice. Hot-swapping increases the risk of communication faults, configuration errors, and possible backplane damage.

Q6. Why should I back up the rack configuration?

The monitor itself does not replace the engineering configuration. Saving the rack configuration before maintenance allows the replacement module to be commissioned quickly and reduces the chance of configuration mismatches.

Q7. What industries commonly use the 3500/45?

Typical installations include:

  • Power generation
  • Oil and gas
  • Petrochemical processing
  • LNG facilities
  • Mining
  • Pulp and paper
  • Heavy industrial rotating machinery protection
