Key Technical Specifications
| Parameter | Specification / Value |
|---|---|
| Input Channels | 3 independent speed measurement channels (operates as a 2oo3 voting system) |
| Supported Sensors | Magnetic pickups or Proximitor proximity sensors |
| Speed Range | 1 to 100,000 RPM continuous measuring capability |
| Response Time | Under 40 milliseconds for overspeed trip initiation |
| Power Consumption | 8.0 Watts typical backplane power draw |
| Relay Outputs | Dedicated trip relay contacts per channel + system alarm outputs |
| Peak Hold Function | Captures and retains highest peak RPM during trip events |
| Transducer Supply Power | -24 VDC output for proximity probe power |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Chassis Slot Allocation | Requires 2 consecutive slots in a standard 3500 19-inch rack |
Product Introduction & Supply Chain Strategy
The Bently Nevada 3500/53 Electronic Overspeed Detection System provides ultra-fast, highly reliable overspeed protection for steam, gas, and hydro turbines. Utilizing a 2-out-of-3 (2oo3) voting logic architecture across three independent channels, it continuously calculates shaft rotational speed to execute emergency trip shutdowns before mechanical failure or catastrophic rotor breakup occurs.
Carrying this module as New Surplus represents an essential Total Cost of Ownership (TCO) strategy. A stock-out on an overspeed protection card can freeze an entire power plant or refinery turnaround. Acquiring genuine New Surplus avoids long factory lead times while eliminating the extreme risks of second-hand alternatives. Used or refurbished overspeed cards often suffer from degraded output relays and latent semiconductor fatigue, which can result in nuisance trips or dangerous failure-to-trip events. Investing in factory-fresh surplus guarantees OEM safety integrity, protects multi-million dollar machinery, and secures plant uptime.
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Perform strict Lock-Out/Tag-Out (LOTO) procedures on connected turbine trip solenoids and emergency shutdown valves.
- Put on an anti-static wrist strap connected to cabinet earth ground before handling the card.
- Backup and document existing overspeed setpoints and voting parameters using the 3500 Rack Configuration Software.
- Label and photograph all rear I/O module speed sensor connections and trip circuit wiring.
Stage 2: Removal
- Unfasten the captive screws on the front panel of the legacy 3500/53 module.
- Pull both ejector handles outward at the same time to release the module from the rack backplane connector.
- Slide the double-width card smoothly along the chassis guide rails to avoid damaging backplane pins.
- Unscrew and remove the corresponding rear I/O module if upgrading or replacing the rear assembly.
Stage 3: Installation (Clone & Seat)
- Mount the matching rear I/O module in the corresponding slots, torqueing screws to 0.6 N·m (5 in-lb).
- Align the 3500/53 main card into the designated upper and lower chassis guide rails.
- Push the module inward until the ejector handles touch the rack frame, then pivot both handles flush to lock the card.
- Reconnect the magnetic pickup / Proximitor field wiring and trip solenoid outputs to the rear I/O terminals.
Stage 4: Power-On & Testing
- Ensure cabinet DC voltage levels are within normal limits before restoring power to the 3500 rack.
- Verify the front panel status lights: The OK LED must glow solid green on all three channel blocks.
- Perform a simulated frequency signal injection test across all three channels to confirm overspeed setpoint actuation and relay state changes.
- Confirm live RPM tracking and channel health statuses in the 3500 System Monitor software.
3500/53

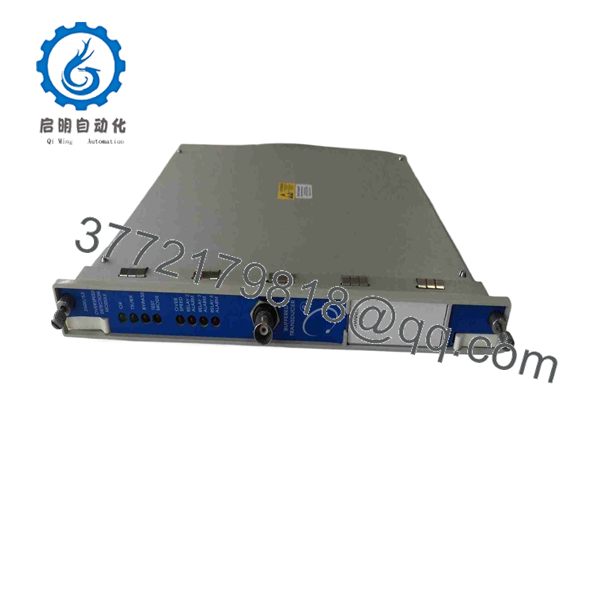

3500/53
Firmware/Software Versions & Upgrade Notes
- Recommended Firmware: Version 3.20 or higher for full integration with high-speed 3500 Rack Interface Modules (RIM) and trip safety routines.
- Software Requirement: Requires Bently Nevada 3500 Overspeed Configuration Utility / 3500 Rack Configuration Software V4.10 or later.
- Redundancy Isolation: Firmware updates must be handled with extreme care. The 3500/53 operates as an isolated safety system within the 3500 rack structure to prevent non-safety cards from affecting overspeed trip logic.
- Upgrade Warning: Never flash or modify 3500/53 firmware while the turbine is online or on turning gear. Updating firmware temporarily halts channel logic, which will trip the emergency shutdown (ESD) loop or disable trip protection entirely. Always perform firmware validation during scheduled outage periods.
Frequently Asked Questions (FAQ)
Q: Is this 3500/53 overspeed module brand new or pulled from a decommissioned power plant? A: This unit is 100% Brand New Surplus. It has never been deployed in an active production environment, installed on a live machine, or retrieved from decommissioned gear. It arrives in factory-original packaging and undergoes comprehensive bench validation prior to dispatch.
Q: Why is purchasing New Surplus preferable to ordering directly from the OEM or buying refurbished? A: New Surplus offers original OEM component quality with immediate stock availability at 20% to 30% below factory list price, bypassing typical 12 to 20 week OEM production lead times. Refurbished safety-critical components present intolerable operational hazards—component fatigue or slow relay response times can cause catastrophic turbine failure during an overspeed event.
Q: How does the 2-out-of-3 (2oo3) voting logic operate on the 3500/53? A: The module processes speed inputs across three independent channels (A, B, and C). An overspeed trip command is executed only when at least two of the three channels detect shaft speed exceeding the programmed overspeed limit. This prevents a single sensor failure from causing a false trip while ensuring reliable shutdown during genuine overspeed conditions.
Q: Can I hot-swap the 3500/53 module while the machine is running? A: No. Unlike standard 3500 condition monitoring cards, hot-swapping the 3500/53 overspeed protection card while the turbine is online is strongly discouraged because it leaves the machine without overspeed protection, and breaking active trip loops will trigger an immediate emergency shutdown (ESD).
Q: What quality assurance measures are taken before shipping this unit? A: Every module undergoes a strict 5-step quality audit: serial number matching against OEM records, live power-up and backplane communication checks, signal frequency response testing, configuration clearing, and ESD-safe anti-static vacuum packaging in heavy-duty foam containers.
Q: What warranty is provided with this module? A: We back this New Surplus 3500/53 overspeed detection module with a full 1-Year Comprehensive Replacement Warranty. If any functional defect arises under normal operating conditions within 12 months, we replace the unit immediately from our dedicated emergency inventory.
