Bently Nevada 3500/62 163179-03 Process Variable Monitor

Description

Key Technical Specifications

The 3500/62 Process Variable Monitor continuously conditions analog process signals and compares them against configurable alarm thresholds. It supports both voltage and current inputs, making it suitable for integrating process measurements into the 3500 machinery protection platform.

Product Introduction

The Bently Nevada 3500/62 163179-03 is a six-channel process variable monitor designed for continuous monitoring of machine-related process parameters, including pressure, temperature, flow, and liquid level. Rather than monitoring shaft vibration or speed, it focuses on analog process signals that directly affect machine health and operating conditions.

Each channel accepts either 4–20 mA or ±10 Vdc inputs, depending on the installed I/O module. The monitor conditions each signal, compares it against user-defined alarm limits, and communicates status throughout the 3500 rack to support operator awareness and machinery protection.

Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (10 Minutes)

⚠️ Safety First

1. Notify operations before shutdown.
2. Perform Lock-Out/Tag-Out procedures.
3. Remove rack power and wait at least five minutes.
4. Wear an ESD wrist strap.

Required Tools

• Phillips screwdriver
• Digital multimeter
• ESD wrist strap
• Wire labels
• Smartphone for wiring documentation

Before Removal

• Export the current 3500 rack configuration.
• Record firmware revisions.
• Photograph terminal wiring and analog input assignments.
• Identify whether the existing installation uses ±10 Vdc or 4–20 mA I/O.

Stage 2 – Removing the Existing Module (5 Minutes)

1. Remove the rack front cover.
2. Label every field cable.
3. Disconnect wiring carefully.
4. Release the retaining clips.
5. Pull the monitor straight out.

⚠️ Keep the removed module available until commissioning is complete.

Stage 3 – Installing the New Module (10 Minutes)

1. Verify the replacement is 3500/62 163179-03.
2. Confirm the installed I/O module matches the field signal type.
3. Insert the monitor fully into the rack.
4. Secure the retaining hardware.
5. Reconnect all field wiring.
6. Verify shield grounding for analog signal cables.

Installation Checklist

• ✔ Correct monitor installed
• ✔ Correct I/O module verified
• ✔ Analog wiring checked
• ✔ Module fully seated

Stage 4 – Startup & Commissioning (10 Minutes)

1. Restore rack power.
2. Verify module LEDs indicate normal operation.
3. Connect using 3500 Rack Configuration Software.
4. Confirm all six channels report valid measurements.
5. Verify engineering units and scaling.
6. Test Alert and Danger alarm setpoints.
7. Document commissioning results.

⚠️ If an input remains fixed at zero or full scale, verify transmitter loop power, wiring polarity, and analog input configuration before replacing the monitor.

3500/62 163179-03

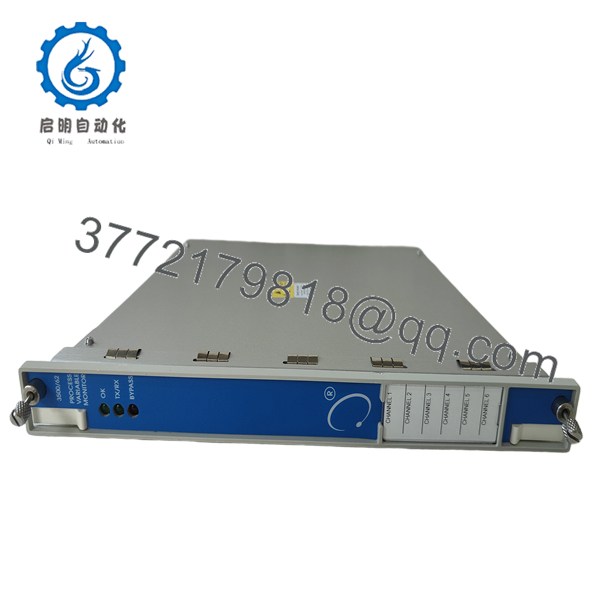

3500/62 163179-03

Frequently Asked Questions (FAQ)

Q1. What does the 3500/62 monitor measure?

The 3500/62 monitors analog process variables such as:

• Pressure
• Temperature
• Flow
• Tank level
• Other machine-critical analog signals

It is intended for continuous process monitoring within the 3500 system.

Q2. How many input channels are available?

The monitor provides six independent analog input channels, allowing multiple process variables to be monitored simultaneously.

Q3. Which signal types are supported?

Depending on the selected I/O module, the monitor accepts:

• ±10 Vdc
• Isolated 4–20 mA
• 4–20 mA with internal intrinsic safety barriers

Always verify the installed I/O option before ordering a replacement.

Q4. What is 163179-03?

163179-03 is the spare part number for the 3500/62 Process Variable Monitor main module. Replacement I/O modules are ordered separately according to the required input signal type.

Q5. Can the 3500/62 be used in Triple Modular Redundant (TMR) systems?

Yes. The 3500/62 supports TMR installations when monitors are installed in groups of three. In this configuration, voting logic is used to reduce the impact of single-point failures. New TMR-specific units are no longer available for purchase, but existing installations remain in service.

Q6. Will replacing the monitor erase my configuration?

No. The rack configuration is maintained separately. Even so, export the configuration before replacing the module to reduce commissioning time and avoid unnecessary troubleshooting.

Q7. Which industries commonly use the 3500/62?

Typical applications include:

• Power generation
• Oil and gas
• Petrochemical processing
• LNG facilities
• Chemical plants
• Mining
• Pulp and paper
• Large compressor and turbine protection systems

These industries use the 3500/62 to integrate critical process measurements with machinery protection functions.
