3. Key Technical Specifications
| Parameter | Specification Value |
|---|---|
| Protocol Support | Modbus RTU, Modbus TCP/IP |
| Serial Interfaces | RS232, RS422, RS485 (software configurable) |
| Ethernet Interface | 10Base-T / 100Base-TX auto-negotiating |
| Data Refresh Rate | Dependent on register count, typically under 100ms |
| Configuration Ports | Front-panel communication bypass port |
| Data Capacity | Transmits all rack values, status registers, and alert histories |
| Power Consumption | 5.5 Watts typical internal draw |
| Baud Rate Options | 1,200 to 115,200 bps for serial lines |
| Isolation | 500 V DC galvanic isolation on data lines |
4. Product Introduction & Supply Chain Strategy
The Bently Nevada 3500-92 PWA136180-01L acts as the central data bridge between local machine safety racks and upper-level control rooms. This communication gateway module extracts raw diagnostic measurements, alarm flags, and system health registers from the internal 3500 backplane and reformats them into standard Modbus formats, allowing real-time visibility on Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and SCADA platforms.
Choosing this interface as a New Surplus unit is a strategic way to optimize Total Cost of Ownership (TCO) across complex plants. Because the gateway coordinates high-volume data streams, refurbished cards can introduce data packet loss or thermal timing errors on the serial microprocessors, causing blind spots in the control room. A certified New Surplus module eliminates these operational data risks, assuring continuous control room visibility without the high costs or lead times associated with standard factory procurement lines.

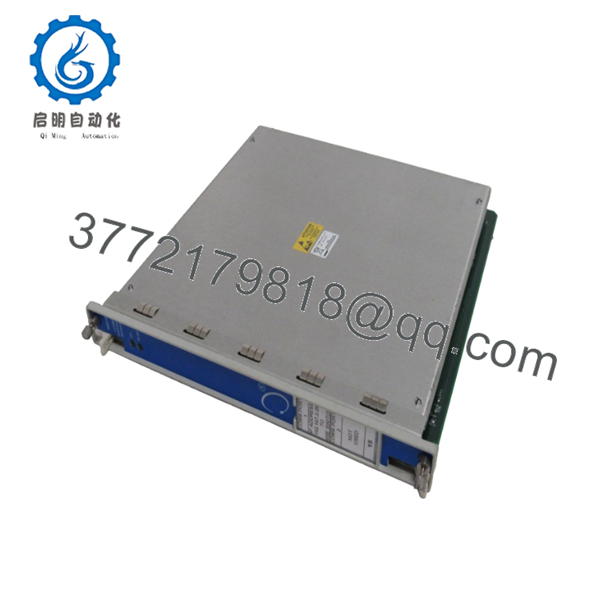

- 3500-92 PWA136180-01L

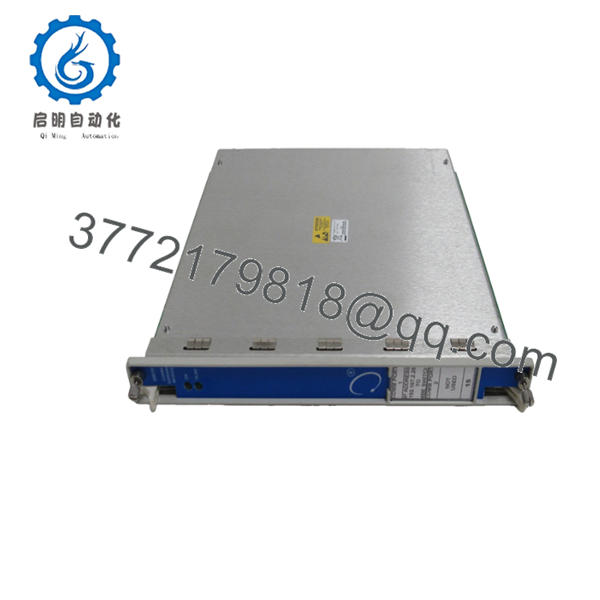

- 3500-92 PWA136180-01L
5. Installation & Configuration Guide
1Pre-Installation Prep & SafetyEstimated time: 10 min1.Pre-Installation Prep & Safety:Estimated time: 10 min.
Document the specific Modbus slave ID, baud rate, parity, and IP address parameters from the existing system map. Ground yourself using an ESD wrist strap. Notify control room operators that DCS data transmission from the target rack will momentarily drop out.
2Module RemovalEstimated time: 5 min2.Module Removal:Estimated time: 5 min.
Loosen the structural fasteners on the upper and lower edges of the 3500-92 module. Depress the quick-release handles to disconnect the internal card edge from the rack bus. Pull the gateway card smoothly along the track rails to prevent physical friction damage.
3Installation & SeatingEstimated time: 5 min3.Installation & Seating:Estimated time: 5 min.
Confirm that the new PWA136180-01L board’s hardware jumper options are set to match your physical network topology (such as selecting RS485 2-wire vs. 4-wire terminating resistance). Push the module into the designated slot until it seats against the backplane, then lock the faceplate screws.
4Configuration VerificationEstimated time: 15 min4.Configuration Verification:Estimated time: 15 min.
Re-power the system chassis. Connect your terminal computer to the front utility port and execute the 3500 Rack Configuration software to download the saved communication parameters. Observe the “TX/RX” LED to confirm active communication traffic with the host DCS network.
6. Firmware/Software Versions & Upgrade Notes
The 3500-92 card requires precise firmware alignment to process register mapping structures correctly. For systems extracting comprehensive diagnostic sets, firmware version 4.0 or higher is required to prevent data truncation over Modbus TCP links.
When swapping an older communication card revision for the PWA136180-01L assembly, check the memory configuration spacing. If the new card possesses a different firmware baseline than the host rack’s 3500/22M interface, you may need to rebuild the Modbus register dictionary within the configuration tool to prevent data shift errors at the DCS screen.
7. Frequently Asked Questions (FAQ)
What is the exact distinction between the 3500-92 and the newer 3500-92M? The “M” variant features upgraded internal processors and memory tables to support faster data polling speeds and expanded register capacities. The PWA136180-01L baseline module provides reliable standard Modbus communication, making it a direct drop-in spare for legacy network systems without needing to modify existing DCS polling blocks.
Why choose a New Surplus 3500-92 over a lower-priced refurbished alternative? Network interface modules experience significant heat cycles from constant processor activity. Refurbished cards often retain old, stressed microchips that are prone to intermittent communication drops during peak network traffic. Buying a New Surplus card ensures uncompromised silicon life and reliable uptime for your control room data links.
Will removing the 3500-92 card compromise the rack’s machinery protection trip logic? No, the 3500-92 handles data transmission exclusively. The machinery protection and trip voting actions are handled independently by the monitor modules and relay cards. Removing this gateway stops remote data tracking but will not affect local emergency shutdown capabilities.
Does this module support both serial and Ethernet Modbus interfaces at the same time? Yes, the module is designed with independent ports to support Modbus RTU serial routing and Modbus TCP/IP Ethernet networks concurrently. This dual capability allows you to pipe data to a local PLC on the serial line while feeding an plant-wide SCADA network over Ethernet.
What type of warranty covers this New Surplus component? This Bently Nevada 3500-92 communication gateway module includes our comprehensive 2-year functional hardware warranty. If any data line errors, component-level faults, or tracking dropouts occur under standard operational parameters, we will issue a full replacement module.
