Bently Nevada 350062-04-00 6-Channel 4-20 mA Monitor

Description

Key Technical Specifications

The 3500/62-04-00 is the six-channel Process Variable Monitor configuration using an isolated 4–20 mA I/O module with external terminations. The Bently Nevada 3500/62 accepts proportional current inputs and conditions them for comparison against user-programmable alarm setpoints.

The 04 portion identifies the isolated 4–20 mA I/O configuration with external terminations, while 00 identifies the absence of an agency-approval option in the ordering code. The external termination arrangement means field wiring does not terminate directly on the front monitor card.

Product Introduction

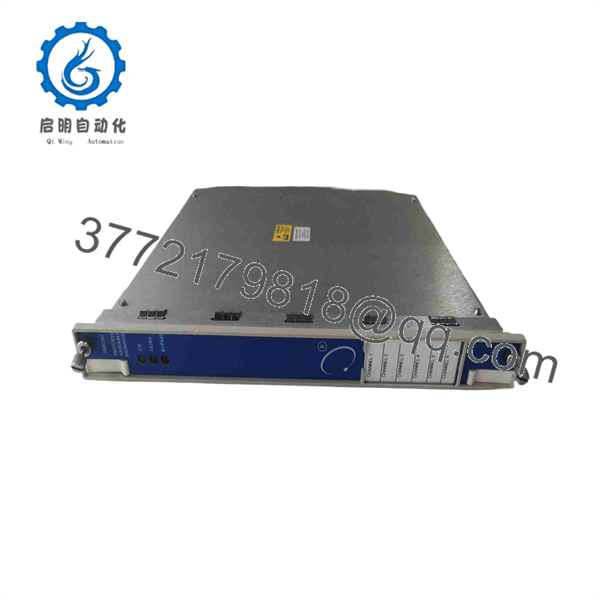

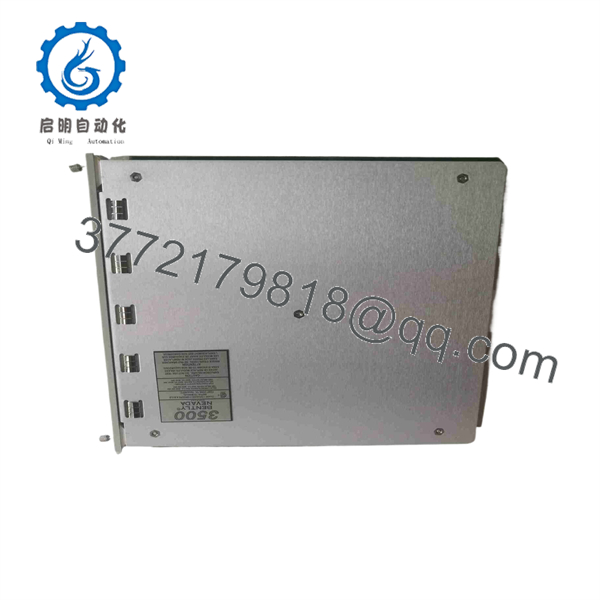

The Bently Nevada 350062-04-00, designated 3500/62-04-00, is a six-channel Process Variable Monitor for the 3500 Machinery Protection System. It accepts +4 to +20 mA signals from process transmitters and monitors variables such as pressure, flow, level, and other static process measurements.

This version uses isolated current inputs with external terminations, making the I/O arrangement important when replacing an existing module. The 3500/62 compares conditioned signals with configurable Alert and Danger thresholds and can pass those conditions into the 3500 alarm and relay architecture.

350062-04-00

350062-04-00

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

Estimated time: 15–20 minutes

1. Confirm the exact replacement part number: 350062-04-00.
2. Verify that the existing monitor is a 3500/62-04-00 configuration.
3. Confirm the installed rear I/O module is the isolated 4–20 mA external-termination type.
4. Record the six channel assignments and corresponding transmitter tags.
5. Back up the existing 3500 rack configuration.
6. Record Alert and Danger setpoints for every active channel.
7. Photograph the external termination wiring before disconnecting it.
8. Prepare an ESD strap, multimeter, screwdriver, wire labels, and documentation.
9. Notify operations and place the monitored equipment in the approved maintenance state.
10. Apply LOTO where required.

⚠️ Do not substitute a 3500/62 module with a different I/O suffix simply because the front-panel designation looks identical. The I/O module type is part of the ordering configuration.

Stage 2: Removing the Old Module

Estimated time: 10–15 minutes

1. Verify the process equipment is in a safe maintenance condition.
2. Confirm the status of any alarms or shutdown logic driven by the process-variable channels.
3. Label each field circuit according to its channel number.
4. Disconnect the external termination wiring according to the approved procedure.
5. Release the module retaining hardware.
6. Pull the monitor straight from the rack.
7. Inspect the card connector and rack backplane.
8. Inspect the external termination assembly for loose terminals, damaged wiring, or corrosion.
9. Keep the old module available until the replacement has passed functional testing.

⚠️ A 4–20 mA loop may remain energized even when the monitor is removed. Measure the circuit before handling conductors.

Stage 3: Installing the New 350062-04-00

Estimated time: 10–15 minutes

1. Verify the replacement marking: 3500/62-04-00 / 350062-04-00.
2. Confirm the replacement uses the same isolated 4–20 mA external-termination configuration.
3. Inspect the connector for bent contacts or contamination.
4. Align the module with the correct 3500 rack slot.
5. Insert the module carefully until fully seated.
6. Secure the module with the appropriate retaining hardware.
7. Reconnect the external termination wiring.
8. Verify each transmitter is connected to the correct channel.
9. Check loop polarity and shield termination against the plant wiring diagram.
10. Confirm no transmitter loop has been accidentally bridged or shorted.

Self-check:

• Correct 3500/62 configuration
• Correct I/O suffix
• Six channel assignments verified
• External termination wiring verified
• Loop polarity checked
• Alarm setpoints backed up

Stage 4: Power-On & Testing

Estimated time: 20–30 minutes

1. Perform a visual inspection before energizing.
2. Verify the external 4–20 mA circuits are correctly terminated.
3. Restore rack power according to the approved procedure.
4. Check the module status LEDs.
5. Connect the 3500 Rack Configuration Software.
6. Confirm that the rack recognizes the Process Variable Monitor.
7. Verify all six configured channels.
8. Confirm each channel displays a credible process value.
9. Compare the displayed values against transmitter readings or an independent reference.
10. Verify Alert and Danger setpoints against the documented configuration.
11. Test alarm logic using an approved signal simulation method where required.
12. Confirm the associated relay or annunciation logic responds correctly.
13. Record the final readings and commissioning results.

⚠️ Do not simulate a Danger condition by manipulating a live process unless the plant procedure explicitly permits it. Use a calibrated current source or approved loop simulator when practical.

The 3500/62 is configured through the 3500 Rack Configuration Software, and the OEM documentation identifies it as a six-channel monitor for proportional current or voltage process signals.

Frequently Asked Questions

Q1. What is Bently Nevada 350062-04-00?

350062-04-00 is the part-number representation of the Bently Nevada 3500/62-04-00 Process Variable Monitor. It provides six process-monitoring channels for the 3500 Machinery Protection System and uses isolated +4 to +20 mA inputs with external terminations.

Q2. What does the “-04-00” configuration mean?

The 04 identifies the isolated +4 to +20 mA I/O module with external terminations. The 00 identifies the configuration with no agency-approval option.

Q3. How many process signals can the 3500/62 monitor?

It provides six independent monitoring channels. The 3500/62 is intended for static proportional signals such as 4–20 mA, 1–5 Vdc, and proportional voltage signals within the specified range.

Q4. What process variables can be connected to the 3500/62?

Typical applications include pressure, flow, level, temperature-related process transmitters, motor current, steam pressure, and other static process variables represented by compatible proportional signals. Bently Nevada specifically describes the 3500/62 for process measurements that can be correlated with machinery condition.

Q5. Can I replace a 3500/62-04-00 with any 3500/62?

No. The I/O configuration must match the installation. The 3500/62 family includes voltage-input, isolated 4–20 mA, and internally barriered 4–20 mA configurations. Changing the I/O type can require changes to field wiring and termination hardware.

Q6. Is the 3500/62-04-00 suitable for a TMR installation?

The 3500/62 family supports TMR configurations, where three Process Variable Monitors are installed adjacent to one another and voting logic is used. However, the exact hardware and approval configuration must be verified for the particular installation.

Q7. What should I verify before purchasing 350062-04-00?

Verify the complete 3500/62-04-00 configuration, isolated 4–20 mA I/O type, external termination arrangement, agency-approval requirement, firmware/configuration compatibility, rack position, and existing channel assignments. For hazardous-area installations, do not assume the -00 unit has the certifications of other 3500/62 ordering configurations. The OEM documentation lists separate approval options for the 3500/62 family.
