Danaher Motion 503-26606-21 MMC 2-Axis Analog Unit

Description

Key Technical Specifications

The MMC architecture combines machine control and motion control in one system. The machine-control side incorporates the CPU and ladder-logic functionality, while the motion-control side can use an analog servo or SERCOS module.

⚠️ Revision matters. Secondary-market records identify 503-26606-21 with multiple revisions, including R0, R1, R8, and R13. Classic Automation specifically cross-references M.1017.3772 R13 to 503-26606-21, while another listing identifies R8. Do not treat these revision numbers as interchangeable without checking the installed system.

Product Introduction

The Danaher Motion / Giddings & Lewis 503-26606-21 is a legacy MMC motion-control module used for two-axis analog motion applications. It combines machine-control functionality with motion-control interfaces and can support analog servo or SERCOS-based motion architectures.

This module is particularly relevant when maintaining older Giddings & Lewis machine-control installations where replacing the complete controller architecture would require substantial re-engineering. The exact revision and MMC configuration should be matched before substitution because 503-26606-21 R0/R1/R8/R13 units are documented in the aftermarket.

Installation & Configuration Guide

Estimated replacement time: 45–90 minutes for an experienced controls technician, excluding machine commissioning and parameter restoration.

Stage 1: Pre-Installation

⚠️ Safety

1. Stop the machine using the approved shutdown procedure.
2. Apply LOTO to the controller and associated servo power circuits.
3. Verify that the servo amplifiers cannot energize unexpectedly.
4. Allow stored electrical energy to discharge.
5. Use ESD protection when handling the MMC module.

Configuration Backup

Before removing the existing module:

1. Record the complete part number and revision.
2. Photograph the module label and rack position.
3. Record the controller configuration.
4. Back up ladder logic and motion parameters where possible.
5. Record axis assignments.
6. Record analog command scaling.
7. Record servo feedback configuration.
8. Record SERCOS settings if that architecture is installed.

⚠️ Do not assume a replacement 503-26606-21 contains the original machine program or axis parameters.

Stage 2: Module Removal

1. Confirm the control cabinet is de-energized.
2. Verify the DC supply has fallen to a safe level.
3. Photograph all connectors before disconnecting them.
4. Label field wiring and communication cables.
5. Disconnect the module carefully.
6. Release the module’s mounting hardware.
7. Remove the module without stressing the backplane connector.
8. Inspect the connector and adjacent modules for contamination or mechanical damage.

Estimated time: 20–30 minutes.

503-26606-21

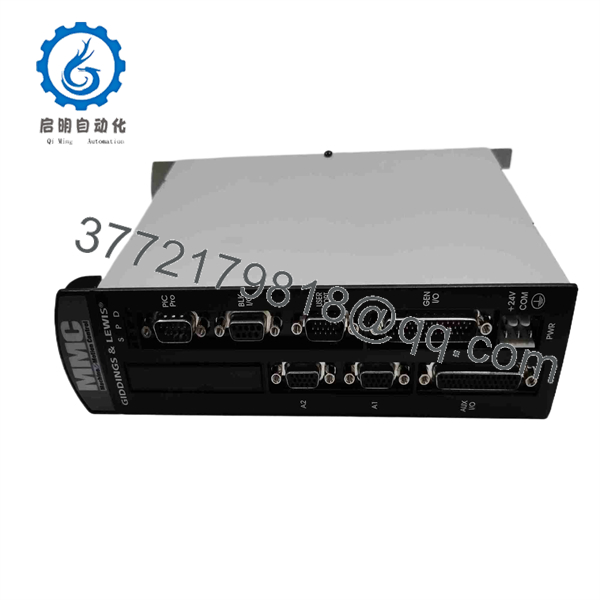

503-26606-21

Stage 3: Replacement Installation

1. Confirm the replacement is 503-26606-21.
2. Verify the revision against the removed module.
3. Confirm the M.1017.3772 cross-reference where applicable.
4. Verify the 24 VDC control supply.
5. Install the module in the correct MMC position.
6. Secure the mounting hardware.
7. Reconnect I/O and motion-control wiring.
8. Reconnect analog servo or SERCOS connections according to the machine documentation.
9. Verify grounding and shielding.

Critical Compatibility Checks

• Exact part number
• Revision level
• MMC hardware configuration
• 24 VDC supply
• Axis count
• Analog/SERCOS architecture
• I/O configuration
• Machine program backup
• Motion parameter backup

Stage 4: Power-On and Commissioning

1. Energize the control system without enabling machine motion.
2. Check module status indicators.
3. Verify CPU/module communication.
4. Confirm machine I/O operation.
5. Restore the verified ladder-logic program if required.
6. Verify axis configuration.
7. Confirm servo feedback.
8. Check analog command signals or SERCOS communication.
9. Perform a controlled single-axis jog.
10. Verify direction, velocity, and position feedback.
11. Test both axes independently.
12. Run the machine through its approved commissioning sequence.

⚠️ Do not enable full machine motion immediately after replacing the module. An incorrect axis assignment, analog scaling value, or feedback configuration can cause uncontrolled movement.

Frequently Asked Questions (FAQ)

1. What is Danaher Motion 503-26606-21?

It is a Giddings & Lewis/Danaher Motion MMC 2-Axis Analog Unit, also described as an Analog Axis MMC Module. Its function is machine and motion control rather than being merely a conventional standalone servo amplifier.

2. What is the M.1017.3772 cross-reference?

M.1017.3772 is an alternate Giddings & Lewis identification associated with 503-26606-21. Specific revisions such as M.1017.3772 R8 and R13 are documented by industrial automation suppliers.

3. Is 503-26606-21 a two-axis module?

Yes. Multiple records identify it as an MMC 2-Axis Analog Unit. The motion-control section can provide analog servo interfaces for two or more drives depending on the system configuration.

4. What are the reported electrical ratings?

The strongest product records identify 24 VDC and 10 A for the module. Do not confuse these values with the motor-drive output rating; the 503-26606-21 is an MMC control module, not simply a high-power motor inverter.

5. What is the difference between R0, R1, R8, and R13?

They represent different revisions of the 503-26606-21 hardware/configuration. Public aftermarket records confirm multiple revisions but do not provide enough authoritative documentation to establish complete interchangeability. Match the installed revision whenever possible.

6. Is 503-26606-21 obsolete?

It is a legacy/discontinued component. Current availability is primarily through surplus, refurbished, and repair channels. Classic Automation, for example, lists R13 as used/refurbished inventory and also offers repair service.

7. Can I substitute a different 503-26606 series module?

Not without checking the complete system architecture. Other 503-series modules may perform different functions, including output, axis-control, or communication functions. The 503-26606-21 should be matched by part number, revision, MMC architecture, I/O arrangement, and motion interface.

8. What should I request when purchasing a replacement?

For a production machine, request:

• Exact 503-26606-21 nameplate photograph
• Revision number
• M.1017.3772 cross-reference
• 24 VDC power-up test
• I/O test
• Analog axis/servo interface test
• SERCOS test if applicable
• Configuration/firmware information
• Warranty period

This is especially important because the aftermarket contains multiple revisions and descriptions of this legacy module.
