Key Technical Specifications
- Manufacturer: Deublin
- Manufacturer Part Number: 904-120-188
- Product Series: Deublin 900 Series
- Product Type: AutoSense rotary union / rotary joint
- Passage Configuration: Single passage
- Primary Function: Transfers coolant, minimum quantity lubrication (MQL), or dry air between a stationary supply line and a rotating machine-tool spindle
- Rotor Connection: M16 x 1.5 left-hand thread
- Pilot Diameter: 18 mm; 0.708 in
- Stator/Radial Connection: G 3/8 in radial port
- Typical Machine Application: High-speed drilling, machining-center, and spindle coolant-delivery systems
- Seal Technology: Deublin AutoSense technology; public product descriptions indicate automatic operation between closed-seal and controlled-leakage modes
- Media Compatibility: Coolant, MQL/oil mist, and dry air; confirm the exact permitted medium and operating mode from the Deublin documentation for the installed machine
- Mounting Requirement: Confirm rotor thread hand, pilot diameter, radial-port position, hose clearance, spindle interface, and machine-specific fitting orientation before purchase
- Lifecycle Status: Current or serviceable industrial rotary-union part; actual OEM and distributor stock varies by region
Public distributor records identify the Deublin 904-120-188 as a 900 Series AutoSense rotary union with an M16 x 1.5 left-hand rotor connection, 18 mm pilot, and G 3/8 in radial port. Descriptions indicate it transfers coolant, MQL, and dry air in machine-tool spindle applications.
Product Introduction
The Deublin 904-120-188 is a 900 Series single-passage AutoSense rotary union for supplying coolant, MQL, or dry air to a rotating machine-tool spindle. Its M16 x 1.5 left-hand rotor thread, 18 mm pilot, and G 3/8 in radial connection make exact mechanical verification essential before ordering.
This rotary union is selected for high-speed spindle applications where a stationary supply line must deliver process media through a rotating interface. The 904-120-188 must match the spindle thread direction, pilot dimension, hose fitting, media, speed, pressure, and machine operating mode. Do not substitute it with a right-hand-thread union or a visually similar 900 Series model.

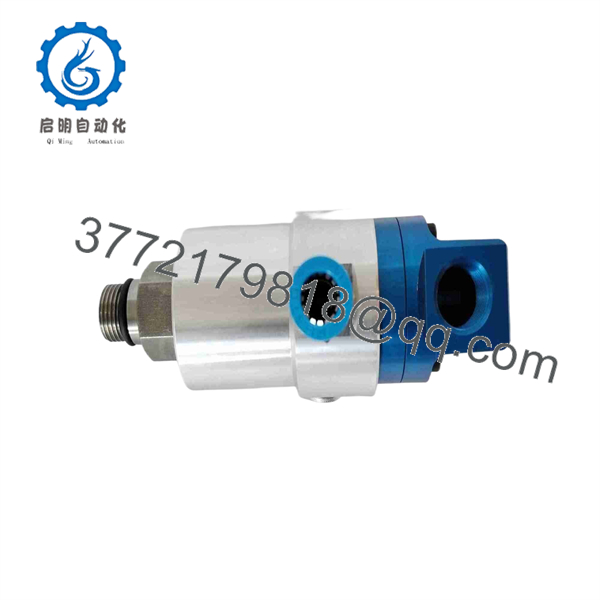

904-120-188

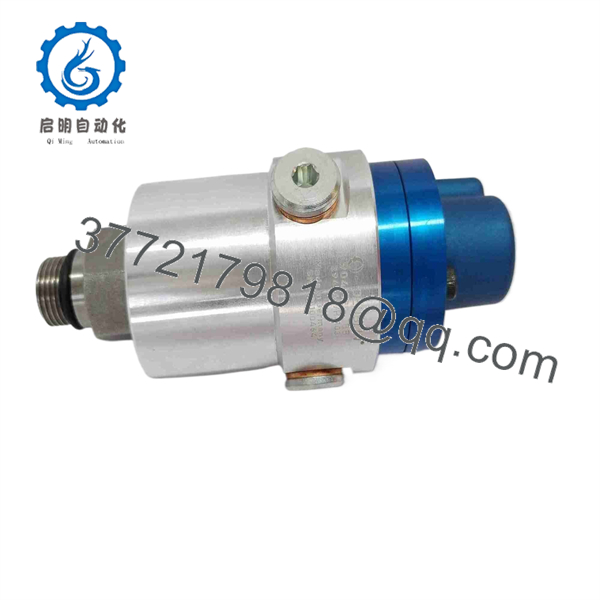

904-120-188
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Coolant leaks from the rotary-union drain or housing | Normal controlled leakage mode, worn seal faces, contaminated coolant, excessive pressure, incorrect union selection | ✅ High | Identify the exact leak location and compare the observed leak rate with the applicable Deublin machine documentation. Inspect coolant cleanliness, supply pressure, and drain routing. | Do not block a designed leakage/drain path. Replace the union if leakage exceeds the machine or OEM acceptance limit. |
| Coolant leaks at the spindle connection | Damaged O-ring, loose rotor thread, scratched spindle face, incorrect pilot fit, improper installation torque | ✅ High | Stop the machine, isolate coolant pressure, and inspect the M16 x 1.5 LH connection, pilot surface, mating face, and seals. Check installation torque against the machine manual. | Replace damaged seals and correct the fitment. Replace the union if the sealing face or rotor connection is damaged. |
| No coolant reaches the tool | Closed upstream valve, clogged filter, blocked hose, kinked supply line, union blockage, incorrect plumbing | ✅ Medium | Verify coolant flow upstream of the union, inspect the filter, confirm the G 3/8 in radial port is connected correctly, and check the spindle drawbar/coolant path. | Clear upstream restrictions first. Replace the rotary union only when flow reaches its inlet but does not pass through a verified-open spindle path. |
| Coolant flow drops during high-speed operation | Supply pressure too low, clogged filtration, hose restriction, worn internal seal, incorrect union for duty cycle | ✅ Medium | Measure supply pressure and flow at low and operating spindle speed. Inspect hoses for collapse or restriction and verify coolant filter condition. | Correct fluid supply and filtration issues first. Replace the union if its performance falls outside the machine specification. |
| Union overheats or makes unusual noise | Misalignment, excessive spindle runout, worn bearings, dry-running outside approved mode, damaged internal components | ✅ High | Shut down immediately if overheating occurs. Check spindle runout, union alignment, mounting condition, and operating media against the approved machine setup. | Do not continue operating a hot or noisy rotary union. Correct alignment and spindle problems; replace the union if internal damage is suspected. |
| Air leaks or pressure loss during air operation | Loose fitting, damaged hose, wrong operating mode, worn internal seal, cracked fitting | ✅ Medium | Isolate the air supply and perform a controlled pressure-decay or soap-solution test at accessible external connections. Verify machine command state and hose routing. | Repair fittings and hoses first. Replace the union if leakage is confirmed through the rotating interface. |
| New rotary union does not fit the spindle | Wrong thread hand, incorrect pilot diameter, wrong port orientation, incorrect Deublin suffix | ✅ High | Compare the removed unit and machine drawing: M16 x 1.5 left-hand thread, 18 mm pilot, radial G 3/8 in port, overall length, and clearance envelope. | Stop installation. Do not force the thread. Confirm the complete Deublin part number and spindle interface before purchase. |
| Failure occurs soon after replacement | Contaminated coolant, incorrect installation torque, misaligned spindle, overpressure, dry-running, wrong media | ✅ High | Inspect the removed and replacement union, coolant filter, hose routing, spindle runout, and system pressure. Document the failure location with photos. | Find the underlying cause before installing another union; otherwise, the replacement can fail quickly. |
❗ Left-hand thread warning: The rotor connection is M16 x 1.5 LH. Do not start the thread by force or assume it is standard right-hand. Cross-threading a spindle interface turns a routine replacement into an expensive spindle repair.
❗ Do not plug the drain path: AutoSense rotary unions can operate in a controlled-leakage mode under certain conditions. A drain line that looks inconvenient may be part of the intended design. Confirm the machine plumbing before modifying or blocking anything.
❗ Coolant cleanliness decides service life: Fine particles and contaminated coolant can damage internal sealing surfaces. Check filtration, fluid condition, and debris before blaming the union. I have seen a replacement fail within days because the upstream filter was bypassed.
❗ Check spindle runout and alignment: A good union cannot compensate for a damaged spindle nose, incorrect pilot engagement, or excessive radial runout. Misalignment creates heat, vibration, and early seal failure.
❗ Verify operating conditions: Do not copy limits from another 900 Series part number. Deublin 900 Series variants can differ in media, pressure, speed, and dry-running capability. Use the exact 904-120-188 documentation and the machine builder’s requirements.
Keep these checks in mind and you will save yourself 90% of typical rework time. If the diagnosis remains uncertain, contact technical support with photos of the nameplate, spindle interface, port orientation, coolant or air conditions, pressure readings, leak location, and machine model.
Frequently Asked Questions
What is the Deublin 904-120-188?
The Deublin 904-120-188 is a 900 Series AutoSense single-passage rotary union used to transfer coolant, MQL, or dry air from a stationary supply line into a rotating machine-tool spindle. Distributor records identify an M16 x 1.5 left-hand rotor connection, 18 mm pilot, and G 3/8 in radial connection.
Is 904-120-188 the same as a standard hydraulic fitting?
No. It is a rotary union designed for a rotating spindle interface, not a static hydraulic fitting. It contains internal sealing components that allow media to pass between stationary and rotating machine parts. The thread size alone is not enough to establish compatibility; pilot geometry, thread hand, port location, spindle speed, media, pressure, and machine arrangement all matter.
Does this rotary union have a left-hand thread?
Yes. Distributor listings specify an M16 x 1.5 left-hand rotor connection. This is a critical fitment detail. Confirm the removed union and spindle drawing before installation, and never force the thread if engagement does not begin smoothly by hand.
Can I use it for coolant and dry air?
Public descriptions identify the 904-120-188 as a single-passage union for coolant and dry-air service, and some listings also state MQL compatibility. Confirm the actual machine operating mode and Deublin-approved limits for your exact union before use. Media compatibility does not automatically confirm that every pressure, temperature, speed, or dry-running condition is allowed.
Why does the rotary union leak after installation?
Start with installation and supply conditions: inspect the spindle mating face, O-ring or gasket, thread engagement, pilot fit, radial-port fitting, hose strain, alignment, coolant condition, and supply pressure. Also determine whether the observed fluid exits a designed drain path. A small controlled leakage condition may not mean the union has failed, but leakage at the spindle connection or above the OEM limit requires correction.
Can I rebuild the 904-120-188 instead of replacing it?
That depends on whether Deublin offers an approved seal kit and procedure for this exact variant, plus the condition of the rotor, body, bearings, and spindle interface. In practice, a rotary union with scratched sealing surfaces, bearing damage, corrosion, or serious overheating is often safer to replace. Do not install generic seals; material and geometry must match the media and operating conditions.
Is the 904-120-188 interchangeable with 902-120-188?
Do not assume interchangeability. Both part numbers may share portions of the Deublin 900 Series naming structure, but their prefix and performance configuration can differ. One public listing for 902-120-188 shows specific coolant service limits and states “no air pressure with rotation,” which must not be copied to the 904-120-188 without exact Deublin confirmation. Match the full part number, not just the thread and pilot dimensions.
Why is a surplus rotary union cheaper than OEM distribution stock?
New Surplus inventory can come from unused maintenance stock, machine decommissioning, canceled projects, or warehouse liquidation. Lower cost is acceptable only when the seller discloses condition and shows the complete nameplate, thread condition, pilot surface, radial port, fittings, packaging, and warranty terms. For a used unit, ask for runout, leakage, pressure, and functional test documentation where available.
What inspection should I request before buying?
Request high-resolution photographs of the full label, M16 x 1.5 LH rotor thread, 18 mm pilot, G 3/8 in radial port, housing, drain arrangement, fittings, and sealing surfaces. Ask the supplier to confirm that threads are not cross-threaded, ports are not damaged, and the union is free of visible corrosion or coolant residue. For a tested used or refurbished unit, request documented rotation, pressure-hold, leakage, and media-compatibility testing.
