Key Technical Specifications
| Parameter | Value |
| Manufacturer | Eaton / MTL Instruments |
| Model Number | MTL5516C |
| Number of Channels | 2 |
| Supply Voltage | 20 to 35 V DC |
| Input Signal Type | NAMUR Proximity Detectors or Switches (Zone 0) |
| Safe-Area Output | Two single-pole relays with changeover contacts |
| Line Fault Detection (LFD) | User-selectable via side switches, separate fault monitoring |
| Response Time | \le 10 ms |
| Current Consumption | 35 mA at 24 V DC |
| Safety Integrity Level (SIL) | SIL 2 (single device), SIL 3 capable (redundant) |
| Mounting Type | DIN-Rail (compatible with standard MTL5500 backplanes) |
| Operating Temperature | -20 to +60 °C |
Product Introduction & Supply Chain Strategy
The Eaton MTL5516C is a 2-channel switch and proximity detector interface designed to transfer digital signals safely from hazardous classified areas (Zone 0 / Division 1) to safe-area control systems. It features built-in Line Fault Detection (LFD) and relay changeover contacts, delivering dependable monitoring for critical safety interlocks, valve position feedback, and emergency shutdown loops in chemical, pharmaceutical, and oil and gas facilities.
Deploying this module as a New Surplus asset optimizes your TCO and eliminates the hidden vulnerabilities tied to secondary-market refurbished barriers. Galvanic isolators protect sensitive control architecture from field transients and ground loops; using pre-owned or repaired isolation modules compromises intrinsic safety certifications. Procuring factory-sealed, traceable surplus inventory guarantees compliance with safety instrumented functions (SIF) and prevents unexpected compliance failures.

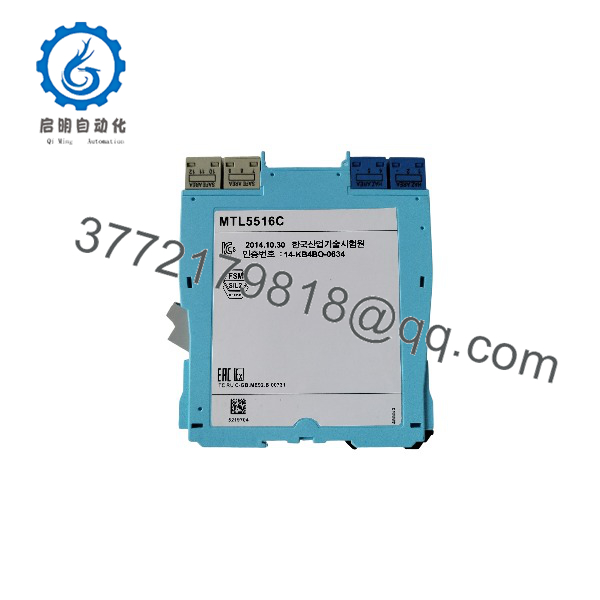

MTL5516C

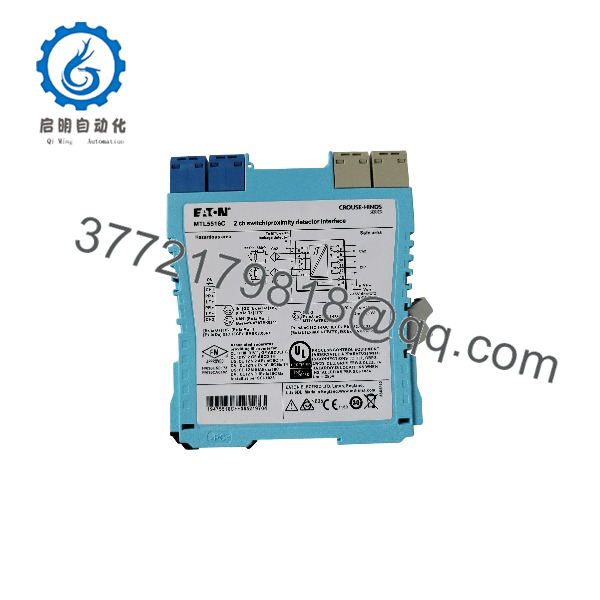

MTL5516C
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Initiate plant-standard lock-out/tag-out (LOTO) protocols on the instrumentation power distribution and associated loop power supplies.
- Put on an ESD-safe grounded wrist strap to protect internal galvanic isolation circuits from static discharge.
- Verify that side-mounted configuration switches (for Line Fault Detection and phase reversal) match the operational requirements of the loop before mounting.
Stage 2: Removal
- De-energize the specific DIN-rail segment or power bus hosting the legacy module.
- Carefully pull the plug-in terminal connectors straight out from the module face, avoiding lateral strain on the housing pins.
- Release the module from the DIN-rail mounting clip and lift it free from the rack.
Stage 3: Installation (Clone & Seat)
- Set the side-mounted configuration switches to match the exact LFD and phase settings of the unit being replaced.
- Snap the new MTL5516C firmly onto the standard DIN-rail until the retention latch locks securely.
- Reconnect the field-side and safe-side plug-in terminal blocks securely into their respective housing ports.
Stage 4: Power-On & Testing
- Restore power to the instrumentation loop and verify that the green power LED illuminates steadily.
- Test field switch inputs to ensure status LEDs toggle correctly in response to field contact changes.
- Validate that the LFD circuit registers normal operating conditions with no fault indicators active prior to releasing the loop back to production.
Firmware/Software Versions & Upgrade Notes
- Configuration Baseline: The MTL5516C is a hardware-configured device utilizing physical slide switches on the side of the housing rather than flash firmware. Ensure switch settings match legacy documentation.
- Compatibility Notes: Direct drop-in replacement for legacy MTL3000 series (such as the MTL3013) or older MTL5500 variants mounted on standard DIN rails. Do not mix safe-area and hazardous-area field wiring paths during replacement.
- Replacement Strategy: Always record the exact side-switch configuration (LFD and phase settings) of the failed module before extraction to prevent logic inversion errors in the control system.
Frequently Asked Questions (FAQ)
Are these units genuinely new, or are they refurbished?
This unit is a Brand New Surplus module. It is entirely unused, preserved in original packaging, and has never been installed in an active industrial loop or subjected to third-party bench repairs.
Why choose New Surplus over refurbished isolation barriers?
Refurbished safety barriers often feature degraded internal galvanic isolation barriers and aged electronic components. For safety-instrumented systems (SIS) requiring SIL 2 or SIL 3 compliance, relying on used hardware introduces unquantifiable failure risks that can bypass safety trip functions.
Does the MTL5516C require external power supplies?
Yes, the module requires an external DC supply ranging from 20 to 35 V DC, typically supplied via standard power bus rails or direct terminal wiring.
Is line fault detection (LFD) mandatory to configure?
LFD is user-selectable via the side switches. If enabled, proper end-of-line resistors must be installed across mechanical switch inputs to prevent false open-circuit or short-circuit alarms.
What warranty is provided with this unit?
This New Surplus unit is backed by a full 1-year operational warranty, ensuring complete regulatory compliance and long-term reliability in critical plant environments.
