Key Technical Specifications
| Parameter | Value |
| Manufacturer | Eaton / MTL Instruments |
| Model Number | MTL5546 |
| Number of Channels | 2 |
| Nominal Voltage | 24 V DC \pm 10 % |
| Output Voltage | \ge 11.0 V at 45 mA |
| Output Current Limit | 45 mA max per channel |
| Line Fault Detection (LFD) | Provided via separate relay output; user-configurable |
| Response Time | \le 20 ms (on/off) |
| Current Consumption | 130 mA at 24 V DC (typical with both channels active) |
| Safety Integrity Level (SIL) | SIL 3 capable (redundant/single dependent on architecture) |
| Mounting Type | Standard DIN-rail (compatible with MTL5500 power bus) |
| Operating Temperature | -20 to +60 °C |
Product Introduction & Supply Chain Strategy
The Eaton MTL5546 is a 2-channel isolated solenoid and alarm driver designed to energize pneumatic valves, acoustic alarms, or optical indicators located in hazardous explosive atmospheres (Zone 0 / Division 1). It accepts digital control signals from safe-area logic solvers or PLCs and applies power safely across the galvanic isolation barrier, incorporating line-fault monitoring to detect open-circuit or short-circuit faults in the field wiring.
Sourcing this safety-critical interface as a New Surplus asset guarantees absolute compliance with plant safety integrity level (SIL) requirements. Solenoid drivers directly govern emergency shutdown (ESD) and blowout prevention valves; using refurbished or pre-owned barriers introduces fatigued internal relays and degraded voltage output margins that can cause valve failure during a trip condition. Deploying certified, factory-sealed surplus hardware protects your plant against catastrophic process interruptions.
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- Execute strict plant lock-out/tag-out (LOTO) protocols on the safety instrumented system (SIS) output loops and associated power feeds.
- Put on an ESD-safe grounded wrist strap to protect internal driver circuits and galvanic barriers from static discharge.
- Verify that the control system output type (sourcing vs. sinking) matches the input specifications of the replacement module.
Stage 2: Removal
- De-energize the specific DIN-rail segment or power bus hosting the legacy unit.
- Carefully pull the plug-in terminal blocks straight out from the front housing sockets, ensuring wires are labeled to prevent miswiring.
- Release the module from the DIN-rail mounting clip and lift it clear of the backplane or power bus.
Stage 3: Installation (Clone & Seat)
- Confirm that side-mounted configuration switches (such as line fault detection enable/disable settings) match the exact parameters of the old unit.
- Snap the new MTL5546 firmly onto the DIN-rail until the mechanical retention latch locks securely.
- Reconnect the field-side and safe-side terminal plugs into their corresponding housing ports, verifying tight screw or spring clamp connections.
Stage 4: Power-On & Testing
- Restore power to the instrumentation loop and verify that the green power LED illuminates normally.
- Trigger a manual command test from the control system to verify that channel status LEDs illuminate and field solenoids actuate correctly.
- Confirm that the line fault monitoring circuit registers a healthy status with no active fault alarms prior to signing off on the loop return-to-service.
MTL5546

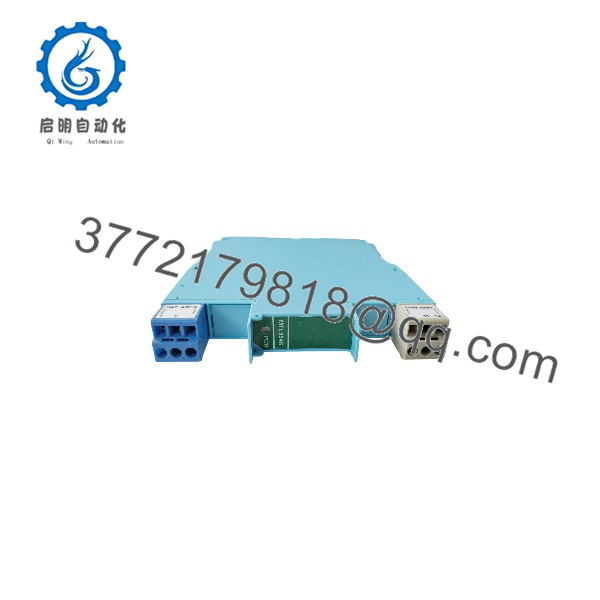

MTL5546
Firmware/Software Versions & Upgrade Notes
- Configuration Baseline: The MTL5546 is a hardware-configured galvanic isolator utilizing physical slide switches rather than programmable firmware. Ensure switch positions mirror legacy documentation.
- Compatibility Notes: Direct drop-in replacement for older MTL5000 series equivalents (such as the legacy MTL5046) when transitioning to modern MTL5500 DIN-rail architectures.
- Replacement Strategy: Always record the exact switch settings and wiring arrangement before un-plugging a failed unit. Avoid modifying fault detection parameters during an emergency swap to prevent unexpected trip alarms in the logic solver.
Frequently Asked Questions (FAQ)
Are these units genuinely new, or are they refurbished?
This unit is a Brand New Surplus module. It is entirely unused, preserved in factory-original packaging, and has never been installed in a live safety loop or subjected to bench repairs.
Why is New Surplus critical for safety instrumented systems (SIS)?
Solenoid drivers sit directly in emergency shutdown loops. Refurbished barriers often have aged power transistors and worn relay contacts that can fail to deliver the precise voltage required to open or close critical valves under emergency pressures. New Surplus ensures 100 percent original factory reliability.
Can the MTL5546 drive high-power pneumatic valves directly?
The module is designed to supply up to 45 mA at 11 V DC, which is standard for intrinsically safe pneumatic solenoid coils. Ensure your field valve specifications match these output power parameters.
Is line fault detection required for operation?
Line fault detection (LFD) monitors field wiring for breaks or shorts. While user-configurable via side switches, enabling it requires correct termination resistor configurations to avoid nuisance alarms.
What warranty is provided with this unit?
This New Surplus unit is backed by a comprehensive 1-year operational warranty, ensuring complete regulatory confidence and long-term dependable service in hazardous plant zones.
