Key Technical Specifications
| Parameter | Value |
|---|---|
| Display Size | 10.4 inch TFT color |
| Resolution | 800 x 600 pixels |
| Touch Technology | Resistive touch screen |
| Processor | Integrated RISC processor |
| Memory | 64 MB SDRAM / 128 MB Flash (typical for series) |
| Interfaces | Ethernet, RS232, RS485, USB |
| Operating Voltage | 24 V DC |
| Power Consumption | Max. 25 W |
| Operating Temperature | 0 to +50 °C |
| Storage Temperature | -20 to +70 °C |
| Protection Rating | IP65 front side |
| Dimensions (WxHxD) | Approx. 280 x 210 x 60 mm |
| Weight | Approx. 2.5 kg |
Product Introduction

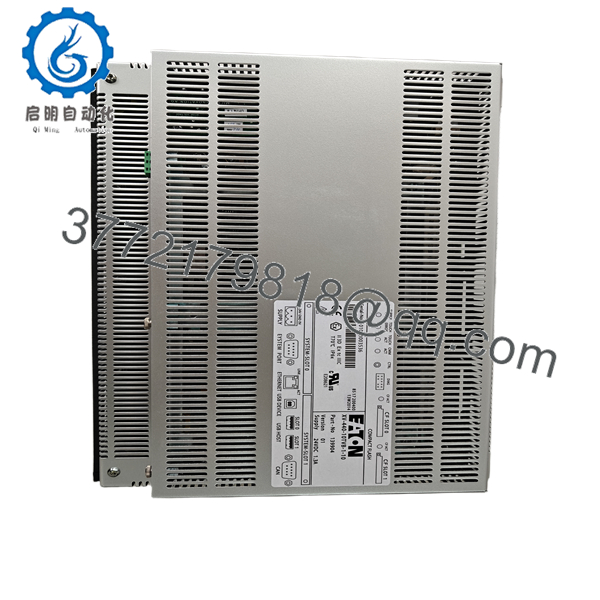

The Eaton XV-440-10TVB-1-10 is a 10.4-inch TFT color touch panel from the XV400 series designed for industrial machine visualization and operator control. It serves as the primary HMI interface in manufacturing lines, process control systems, and automation cells where reliable operator interaction with PLCs and drives is required.
Field teams choose this panel for its solid performance in standard industrial environments, straightforward integration with common protocols, and direct compatibility with Eaton and third-party control systems. It delivers clear visuals and responsive touch operation without unnecessary complexity.
- XV-440-10TVB-1-10
- XV-440-10TVB-1-10
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No display or backlight | Power supply issue | ✅ High | Measure 24 V DC at power terminals | Verify power supply and wiring before replacing HMI |
| Touch screen unresponsive | Calibration lost or overlay damage | ✅ High | Use engineering tool to recalibrate | Recalibrate first; replace only if hardware fault confirmed |
| No communication with PLC | Cable or protocol mismatch | ❌ Medium | Check Ethernet/RS485 LEDs and ping device | Confirm cable and node settings; test with known good cable |
| Frozen or erratic screen | Software crash or memory issue | ✅ Medium | Power cycle and reload project | Reload application via USB/Ethernet; replace if persists |
| Dim or flickering display | Internal backlight failure | ✅ High | Observe under different angles and loads | Unit usually needs replacement after backlight failure |
Contact technical support with photos of the unit, error messages, and diagnostic logs if these checks do not resolve the issue.
Frequently Asked Questions (FAQ)
Is the XV-440-10TVB-1-10 hot-swappable? No. Always power down the system before removing or installing this HMI. Hot-swapping can damage the unit or the connected control system.
What is the condition of this unit? This is New Original / New Surplus stock — factory sealed or removed from unused OEM equipment. It has passed full functional testing on our Eaton-compatible test rig before shipment.
Will this replace my older XV-400 series panel directly? In most cases yes, but verify firmware version and mounting cutout dimensions. Take photos of the old unit’s DIP switches and connections before removal.
Does it support Ethernet/IP or Modbus TCP? Yes, it supports common industrial Ethernet protocols including Modbus TCP. Confirm your specific PLC project matches the communication driver in the visualization software.
What is the warranty on this panel? We provide a 1-year warranty on tested New Surplus units. Coverage includes functional defects under normal operating conditions.
How do I transfer my existing project to this new panel? Use the Eaton Galileo or Visual Designer software to upload the project file via USB or Ethernet. Back up your current configuration first.
Why is the price lower than direct from the factory? This is surplus stock from canceled or excess OEM orders. You get the same genuine Eaton hardware without the full OEM lead time or markup. All units are individually tested.
