3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Display | 10.4″ TFT Color, VGA 640 x 480 pixels |
| Touch Technology | Infra-red (IR) |
| Colors | Adjustable: 256 or 65,536 |
| Processor | RISC CPU, 32-bit, 400 MHz |
| Memory | 64 MB DRAM, ~1.5 MB Flash, 32 KB NVRAM |
| Supply Voltage | 24 V DC (20.4–28.8 V DC) |
| Power Consumption | Max 26 W (typical), Heat dissipation 32 W |
| Interfaces | 1x Ethernet 100Base-TX/10Base-T, 1x RS232, 1x CAN, 2x USB Host, 1x USB Device |
| Operating Temperature | 0 to +50°C |
| Storage Temperature | -20 to +60°C |
| Protection | IP65 front, IP20 rear |
| Weight | Approx. 4.1 kg |
| Dimensions | 345 x 260 x 88 mm |
| Front | Stainless steel variant |
4. Product Introduction

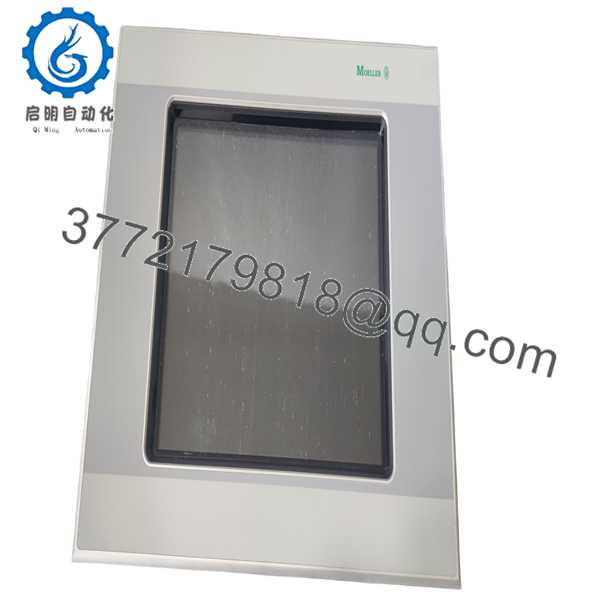

The Eaton XV-440-10TVB-1-500 is a 10.4-inch IR touch HMI panel from the XV400 series built for harsh industrial environments that need stainless steel fronts. It provides a VGA TFT color display with Ethernet, RS232, and CAN interfaces and supports optional PLC functionality through a user-installed license.
Maintenance crews select this model for its corrosion-resistant front plate, reliable performance in washdown or food-grade areas, and easy integration with existing control systems. The 24 V DC supply and flush mounting simplify swaps when older units fail. Always cross-check firmware version and license requirements with your current configuration.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No display or backlight | Power supply issue | High | Measure 24 V DC at power terminals | Verify incoming supply and fuse before replacing unit |
| Touch unresponsive | IR sensor obstruction or driver fault | Medium | Clean screen; check OS logs via engineering tool | Reboot and reload project; replace if persistent |
| No Ethernet communication | Cable/IP config mismatch | High | Ping from engineering PC; check link LEDs | Confirm IP settings and cable; test with known good cable |
| CAN bus errors | Baud rate or termination mismatch | Medium | Check diagnostic buffer in software | Match exact baud/termination from existing network |
| PLC function not running | Missing license or CF card | High | Verify license and CompactFlash presence | Install required LIC-PLC-MXP-MEDIUM and valid CF card |
| Intermittent freeze | Over-temperature or memory overload | Low | Monitor internal temp and project size | Reduce project complexity; ensure proper ventilation |
If diagnostics point to the panel itself, contact technical support with photos of the unit, error logs, and wiring details.
- XV-440-10TVB-1-500
- XV-440-10TVB-1-500
6. Frequently Asked Questions (FAQ)
Is this unit new original stock or refurbished? This is New Original / New Surplus from authorized channels. It ships in original packaging with full traceability. We perform inbound inspection and functional testing prior to shipment.
Does the stainless steel front change anything technically? The front plate is stainless steel for better corrosion resistance and cleanability. Core electronics, interfaces, and performance match the standard XV-440-10TVB-1-10 series.
Can I add PLC functionality later? Yes. Fit the LIC-PLC-MXP-MEDIUM license (article 140390) and load the appropriate CoDeSys software. The hardware supports it out of the box.
What software do I need to program the HMI and optional PLC? Use Galileo for visualization and XSOFT-CODESYS-2 or -3 for PLC programming. A CompactFlash card is required for the operating system and projects.
Is it hot-swappable? No. Always remove power before installing or removing the unit. Hot-swapping risks damage to the backplane or connected modules.
How long is the warranty? We provide a 1-year warranty on tested functional units. Extended options available on request.
Will this serve as a direct replacement for an older XV-440 unit? In most cases yes, but document your existing firmware version, project files, and any custom configurations first. The stainless front may require checking cutout and sealing compatibility.
