Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | MC-4/11/03/400 |
| Alternative Part Numbers | MC41103400, 13130245 |
| Manufacturer | ELAU (Schneider Electric) |
| Product Family | PacDrive MC-4 Servo Drive |
| Supply Voltage | 380-480VAC 3-phase |
| Supply Frequency | 48-62Hz (50/60Hz) |
| Output Current | 3A (continuous) |
| Output Voltage | 0-480VAC |
| Output Frequency | 0-600Hz |
| Control Voltage | 24VDC |
| Control Current | 1A |
| Number of Axes | 1 axis |
| Mounting Type | Wall mount / Panel mount |
| Dimensions | 260mm (H) × 260mm (W) × 69mm (D) |
| Weight | 2.98 kg (6.57 lbs) |
| Commodity Code | 903289 |
| Customs Tariff | 85044090 |
| Country of Origin | Germany |
| Firmware | V00.22.xx (VDM01U30AL00) |
| Safety Compliance | REACh, EU-RoHS |
| Typical Application | Blister packing machines, packaging automation |
| Warranty | 1 year (new) / 2 years (refurbished) |
| Max Servo Axes per Controller | Up to 40 axes per PacDrive Controller |
Product Introduction

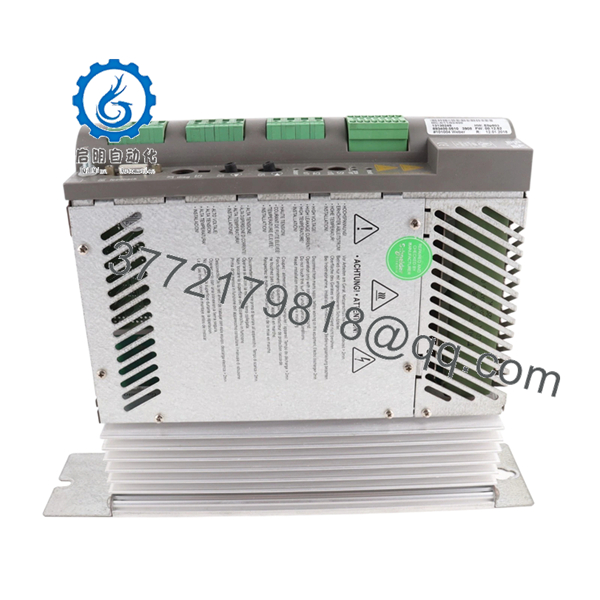

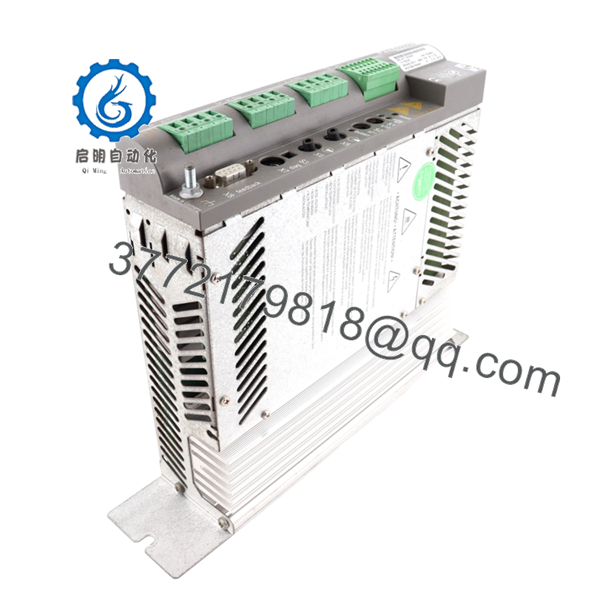

ELAU MC-4/11/03/400 is a PacDrive single-axis servo drive engineered for precise motion control in industrial automation. It accepts 380-480VAC 3-phase input and delivers 3A output current for servo motor control with automatic motor recognition.
This compact servo amplifier is designed for blister packing machines and packaging automation lines. The PacDrive system supports up to 40 servo axes per controller, with integrated mains supply and wall-mount design. It operates on 24VDC control voltage and is part of Schneider Electric’s ELAU product range, known for reliable industrial automation solutions.
- MC-4/11/03/400
- MC-4/11/03/400
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No power / blank display | Missing 380-480VAC input or blown fuse | ✅ High | Measure 3-phase voltage at input terminals; check fuses | Verify input power first; replace fuse if blown and retest |
| Overcurrent fault (OC) | Motor short circuit or overload | ✅ High | Measure motor winding resistance; check for ground fault | Check motor and cables first; replace drive if motor is OK |
| Overvoltage fault (OV) | Regenerative energy too high or braking resistor fault | ✅ High | Check braking resistor connection; measure DC bus voltage | Install/replace braking resistor; reduce acceleration rate |
| Undervoltage fault (UV) | Input voltage too low or phase loss | ✅ High | Measure all 3 phases; check for phase imbalance >10% | Correct input power; replace input reactor if needed |
| Motor overheating | Excessive load or cooling fan failure | ✅ Medium | Check motor temperature; verify fan operation | Reduce load or improve cooling; replace motor fan if failed |
| Communications error | Missing 24VDC control power or bus fault | ✅ High | Measure 24VDC at control terminals; check bus wiring | Verify control power; check fieldbus config and wiring |
| Following error / position error | Wrong encoder feedback or gain mismatch | ✅ High | Check encoder connection; read actual vs commanded position | Verify encoder wiring; retune servo gains |
| Drive won’t enable | Safety circuit open or enable signal missing | ✅ High | Check enable input signal; verify safety relay closed | Close safety circuit; verify 24VDC enable signal present |
Contact ELAU/Schneider Electric Support or your local distributor with fault codes and diagnostic logs for OEM assistance.
Frequently Asked Questions
Q: Is the ELAU MC-4/11/03/400 still in production?
A: This is legacy PacDrive hardware. Stock is typically new surplus or refurbished inventory. ELAU motion control products are now under Schneider Electric. Verify current availability with suppliers before ordering.
Q: What does this drive do?
A: It is a single-axis servo amplifier for the ELAU PacDrive system. It controls servo motors in packaging machines, blister packing equipment, and other industrial automation applications requiring precise motion control.
Q: What voltage does it require?
A: It requires 380-480VAC 3-phase input at 50/60Hz. Control voltage is 24VDC at 1A. Make sure your site power matches these requirements before ordering.
Q: Can I use this with any servo motor?
A: It supports ELAU PacDrive servo motors with automatic motor recognition. For non-ELAU motors, verify encoder compatibility and motor parameters. The drive outputs 0-480VAC at 0-600Hz.
Q: How many axes can one PacDrive controller handle?
A: Up to 40 servo axes can be connected to one PacDrive Controller. The MC-4/11/03/400 is a single-axis module, so you need one drive per axis.
Q: Is this drive hot-swappable?
A: No. Always power down the drive before installation or removal. Hot-swapping can damage the backplane, motor, or drive electronics.
Q: What’s the difference between new surplus and refurbished?
A: New surplus is unused original inventory with 1-year warranty. Refurbished units are tested/recertified with a standard 2-year warranty. Refurbished units are more sustainable and cost-effective.
Q: Why is this cheaper than buying new from Schneider?
A: This is legacy hardware available as new surplus or refurbished inventory, not current OEM production. The lower price reflects limited availability, not a different operating principle.
Q: What should I check before ordering?
A: Confirm the exact part number (MC-4/11/03/400), verify your supply voltage (380-480VAC 3-phase), check your motor type (ELAU PacDrive recommended), and confirm the condition (new surplus vs refurbished). Also verify the warranty terms (1 year vs 2 years) and whether you need exchange service availability.
