Elmo G-TUB30 Tubular Brushless Servo Motor Controller

Description

Key Technical Specifications

Important identification note:
The designation G-TUB30 identifies the Elmo Gold Line Tubular servo drive family, but the complete electrical specification depends on the exact suffix, firmware version, and hardware revision. Before replacement, verify the full label information, including voltage/current rating and interface configuration.

Product Introduction

The Elmo G-TUB30 is a compact digital servo amplifier from Elmo Motion Control’s Gold Line product family. It is designed for high-performance motion applications requiring precise control of brushless servo motors, including industrial automation equipment, robotics, semiconductor machinery, and precision positioning systems.

The G-TUB30 integrates servo amplification, feedback processing, and motion-control functions into a compact package suitable for OEM machine builders. Its digital control architecture allows accurate torque, velocity, and position regulation while supporting closed-loop operation through encoder feedback.

Because Elmo drives are commonly customized for OEM applications, replacement selection should not rely only on the model prefix. Engineers should confirm the installed drive voltage, motor parameters, feedback type, communication interface, and commissioning settings before replacing an existing unit.

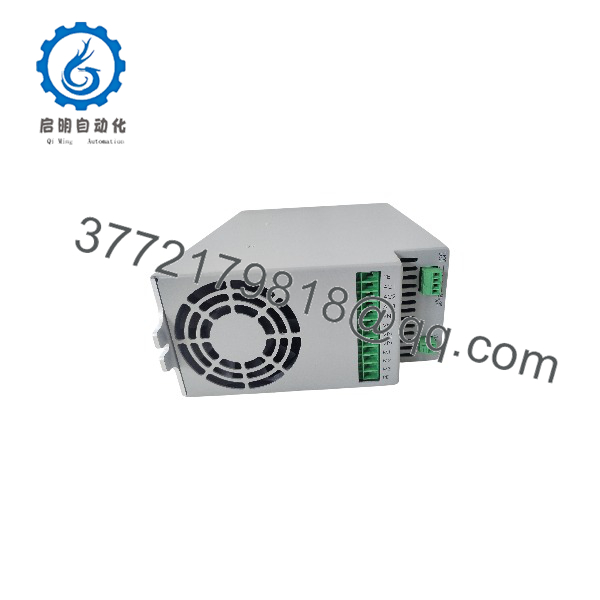

G-TUB30

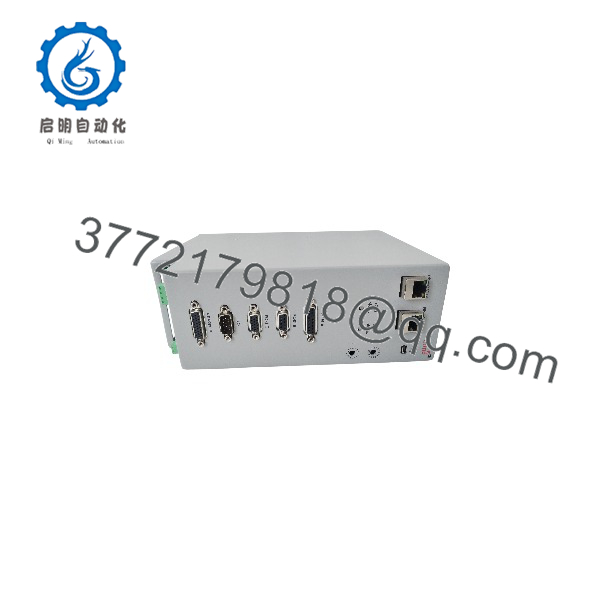

G-TUB30

Installation & Configuration Guide

Step 1 — Verify Existing Drive Information

Before replacement:

1. Record the complete Elmo part number.
2. Photograph the drive label and connectors.
3. Record supply voltage and current ratings.
4. Document motor model and rated parameters.
5. Record encoder/resolver feedback wiring.
6. Save existing drive configuration parameters.

Important:
Servo drives are configured for specific motors. Installing a mechanically compatible drive without transferring correct motor parameters may cause unstable operation or motor damage.

Step 2 — Remove the Existing G-TUB30

1. Stop the machine using the approved shutdown sequence.
2. Remove DC power supply input.
3. Wait for DC bus discharge.
4. Apply ESD protection.
5. Disconnect motor power wiring.
6. Disconnect feedback and communication cables.
7. Remove mounting hardware.
8. Remove the drive from the equipment.

Step 3 — Install Replacement Drive

1. Confirm the replacement matches the original G-TUB30 configuration.
2. Inspect connectors and terminals.
3. Install the drive in the original mounting position.
4. Connect motor power wiring.
5. Connect encoder feedback.
6. Connect communication interface.
7. Verify grounding and shielding connections.

Configuration Check:

Verify:

• Motor rated current
• Motor voltage
• Encoder resolution
• Feedback polarity
• Current limits
• Velocity limits
• Position loop parameters
• Communication address

Step 4 — Commissioning Procedure

1. Apply control power only.
2. Verify drive status indicators.
3. Connect Elmo setup software if available.
4. Load saved parameters.
5. Confirm encoder feedback.
6. Perform low-speed motor movement test.
7. Verify direction of rotation.
8. Tune servo parameters if required.
9. Test full machine operation.

Troubleshooting Guide

Drive Does Not Enable

Check:

• Control power supply
• Emergency-stop circuit
• Drive enable signal
• Fault status
• Communication state

Motor Vibrates or Oscillates

Possible causes:

• Incorrect motor parameters
• Incorrect encoder feedback
• Improper servo tuning
• Mechanical load problems

Position Error Increases

Check:

• Encoder wiring
• Feedback resolution
• Coupling/backlash
• Servo gain settings

Overcurrent Fault

Check:

• Motor wiring
• Short circuits
• Acceleration settings
• Mechanical overload

FAQ

What is the Elmo G-?

The Elmo G- is a compact digital servo amplifier designed for controlling brushless servo motors in industrial motion-control systems.

What applications use the G-?

Typical applications include:

• Robotics
• Semiconductor equipment
• Precision positioning machines
• Packaging equipment
• Automated manufacturing systems
• Laboratory automation equipment

Is G- a PLC module?

No. The G- is a servo drive/amplifier, not a PLC CPU or I/O module. It operates as part of a motion-control system and receives commands from a controller or motion network.

Can I replace G- with another Elmo drive?

Only after verifying compatibility. The replacement must match:

• Motor voltage
• Continuous and peak current
• Feedback type
• Communication interface
• Mechanical mounting
• Configuration parameters

Does the G- require software configuration?

Yes. Servo drives require commissioning parameters such as motor data, feedback settings, current limits, and control-loop parameters. Existing parameters should be backed up before replacement.

What should I check before purchasing an Elmo G-?

Provide:

• Complete model label
• Hardware revision
• Supply voltage
• Motor information
• Feedback type
• Communication interface
• Photos of connectors

This prevents replacement errors between similar Elmo Gold Line drive variants.

Is Elmo G- still manufactured?

The G- is considered a legacy motion-control product. Availability is generally through industrial spare-parts suppliers, surplus inventory, or tested refurbished channels rather than standard current production channels.
