3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Voltage Input Personality Module with Temperature Sensor |
| Compatible System | Emerson Ovation Analog Input Subsystem |
| Primary Function | Cold-junction compensation for thermocouples |
| Supported Ranges (with matching electronic module) | ±20 mV, ±50 mV, ±100 mV compensated (thermocouple) |
| Temperature Sensor Accuracy | ±0.5 °C over 0 °C to 70 °C |
| Sampling Rate (temp sensor) | Max 600 msec, typical 300 msec |
| Resolution (temp sensor) | ±0.5 °C |
| Power Supply | Derived from base / electronic module |
| Compatible Terminal Cover | 1C31207H01 (recommended) |
| System Compatibility | Emerson Ovation DCS |
4. Product Introduction
The Emerson 1C31116G04 is a Voltage Input Personality Module (PMOD) with an integrated temperature sensor for the Ovation analog input subsystem. It provides cold-junction compensation for thermocouple inputs by measuring the temperature at the terminal block.
This module is paired with the corresponding electronic (EMOD) cards (such as 1C31113G01/G02/G03) to support compensated thermocouple ranges of ±20 mV, ±50 mV, and ±100 mV. It is commonly used in power plants and process facilities where accurate thermocouple temperature measurement is required. The temperature sensor and optional terminal block cover (1C31207H01) help maintain uniform temperature across the terminal area for reliable compensation.

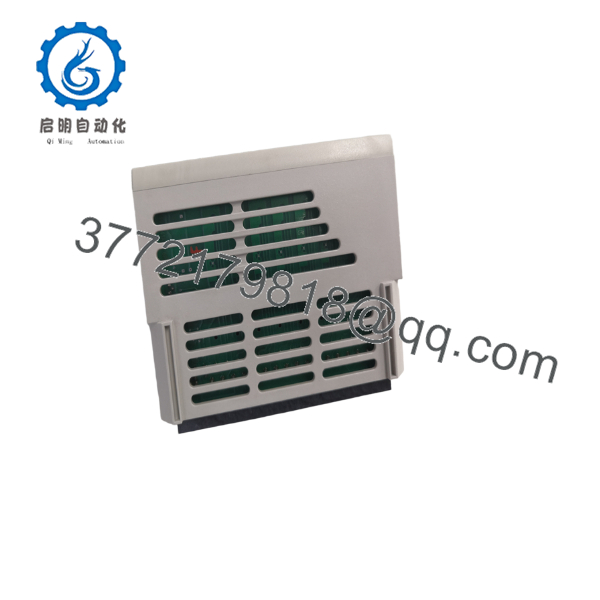

1C31116G04

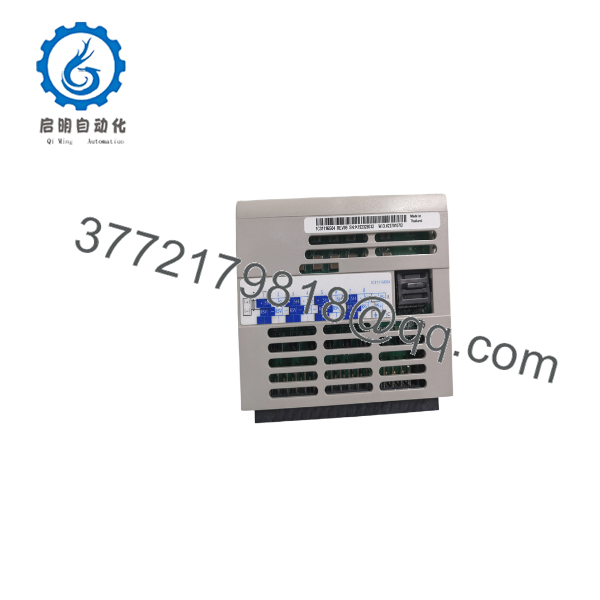

1C31116G04
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Thermocouple readings offset or drifting | Failed or inaccurate temperature sensor | ✅ High | Compare terminal block temperature reading to independent thermometer | Replace personality module if sensor is out of tolerance |
| No cold-junction compensation | Missing or faulty 1C31116G04 | ✅ High | Verify correct personality module is installed | Install correct PMOD and confirm configuration |
| Uneven compensation across channels | Missing terminal block cover or poor contact | ✅ High | Check for 1C31207H01 cover and proper seating | Install cover and ensure good thermal contact |
| Module not recognized | Poor backplane contact or wrong base | ✅ Medium | Reseat module; verify base and electronic module pairing | Confirm hardware matches Ovation configuration |
| Intermittent temperature readings | Loose connector or aging sensor | ✅ Medium | Reseat module and inspect contacts | Clean contacts or replace unit |
| High measurement error on TC inputs | Incorrect range selection or wiring | ✅ High | Verify thermocouple type and wiring polarity | Match configuration to actual sensor type |
If problems continue, capture Ovation diagnostic data, photos of the module and terminal block, and contact technical support with the serial number.
6. Frequently Asked Questions (FAQ)
Q: What is the 1C31116G04 used for?
A: It is the Voltage Input Personality Module with a built-in temperature sensor that provides cold-junction compensation for thermocouple inputs on the Ovation analog input subsystem.
Q: Which thermocouple ranges does it support?
A: When paired with the correct electronic module, it supports compensated ±20 mV, ±50 mV, and ±100 mV thermocouple ranges.
Q: Do I need the terminal block cover?
A: Yes, the 1C31207H01 terminal block cover is strongly recommended. It helps maintain a uniform temperature across the terminal area so the sensor can accurately compensate both modules under the cover if needed.
Q: Can this module be used for current inputs or non-compensated voltage?
A: No. This specific group (G04) is designed for voltage inputs with temperature sensing for thermocouple compensation. Other personality modules (G01–G03) handle different signal types.
Q: Is this a complete analog input card by itself?
A: No. It is a personality (companion) module that works with a matching electronic module and base unit. Both the electronic and personality modules are required for a functional analog input channel group.
Q: Why is surplus stock often less expensive?
A: New Surplus units are unused OEM material that never entered service—typically excess project inventory. They are functionally new but may lack the latest factory packaging or original manufacturer warranty paperwork. Every unit is tested and carries our warranty.
Q: How do you test these modules before shipping?
A: Each unit receives visual inspection, continuity checks, temperature sensor verification against a calibrated reference, and functional testing in a compatible Ovation analog input base. Test documentation is available on request.
