Emerson 1C31166G01 Ovation Link Controller Electronics Module

Parameter Specification
Manufacturer Emerson
Exact model 1C31166G01
Product type Ovation Link Controller electronics module
System family Emerson Ovation DCS
Primary function Serial data communication between an Ovation controller and a third-party device or system
Serial interfaces supported RS-232, RS-422, RS-485
Serial ports Two
Required personality module for RS-232 1C31169G01

Description

Core Product Summary

The Emerson 1C31166G01 is the Link Controller (LC) electronics module for the Emerson Ovation distributed control system. It gives an Ovation controller a serial data communications link to a third-party device or system through RS-232, RS-422, or RS-485 signaling.

The module provides two serial ports and is used with a separate personality module: the 1C31169G01 for an RS-232 link, or the 1C31169G02 for a four-wire RS-485 or RS-422 link. Operation also requires the appropriate Serial Link Controller (SLC) algorithm to reside in the Ovation controller. This makes the 1C31166G01 a system-specific communications interface rather than a standalone serial converter.



Key Technical Specifications

Parameter Specification
Manufacturer Emerson
Exact model 1C31166G01
Product type Ovation Link Controller electronics module
System family Emerson Ovation DCS
Primary function Serial data communication between an Ovation controller and a third-party device or system
Serial interfaces supported RS-232, RS-422, RS-485
Serial ports Two
Required personality module for RS-232 1C31169G01
Required personality module for RS-485/RS-422 1C31169G02
RS-485/RS-422 wiring Four-wire
Controller software requirement Appropriate SLC algorithm in the Ovation controller
Certification context Applicable for CE Mark certified Ovation systems



Engineering Selection Highlights

  • The 1C31166G01 is the Link Controller electronics module, so it must be paired with the correct Ovation personality module to establish the intended physical serial interface.
  • For RS-232 communication, use personality module 1C31169G01; for four-wire RS-485 or RS-422 communication, use personality module 1C31169G02.
  • The module supports two serial ports, allowing an Ovation controller to maintain serial links to external equipment through the configured LC subsystem.
  • The appropriate SLC algorithm must be present in the Ovation controller; hardware installation alone does not establish the serial-link function.
  • In CE Mark certified systems, the RS-232 application-port cable must be less than 10 meters (32.8 feet).
  • The four-wire RS-485/RS-422 personality-module arrangement uses separate transmit and receive pairs, so it is not a direct two-wire bus connection without an engineered interface.



System Compatibility & Integration Requirements

Item / Dependency Verified Compatibility or Requirement Practical Note
Control system Emerson Ovation The module is an Ovation Link Controller electronics module.
External connection Third-party device or system It provides a serial data link from the Ovation controller to external equipment.
RS-232 interface Personality module 1C31169G01 Required for an RS-232 serial link.
RS-485/RS-422 interface Personality module 1C31169G02 Provides a four-wire RS-485 or RS-422 link.
Controller configuration SLC algorithm in the Ovation controller The relevant Serial Link Controller algorithm must reside in the controller.
CE Mark certified systems RS-232 application-port cable under 10 meters (32.8 feet) Applies to the RS-232 personality-module configuration.

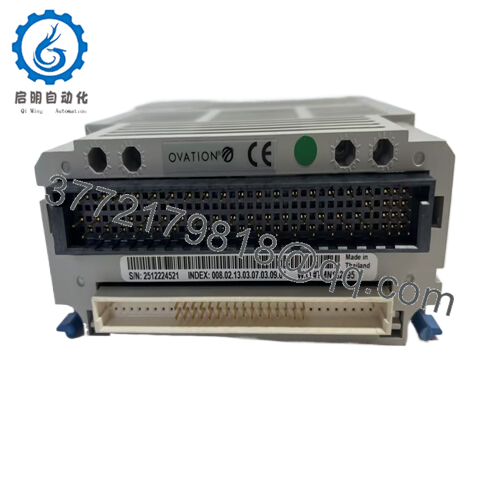

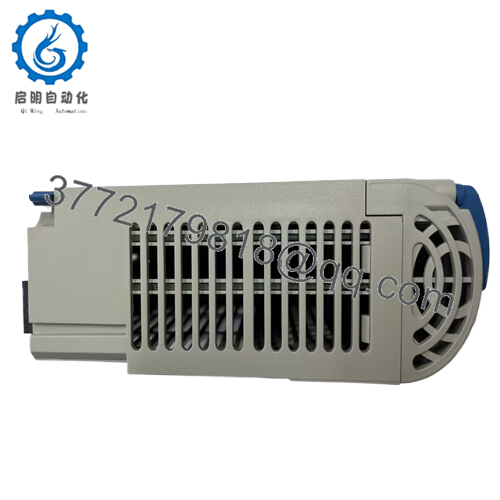

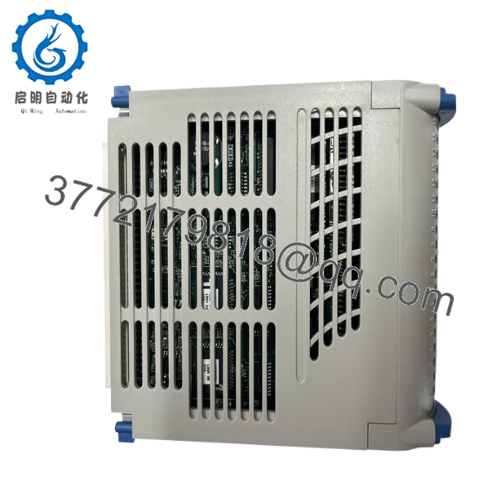

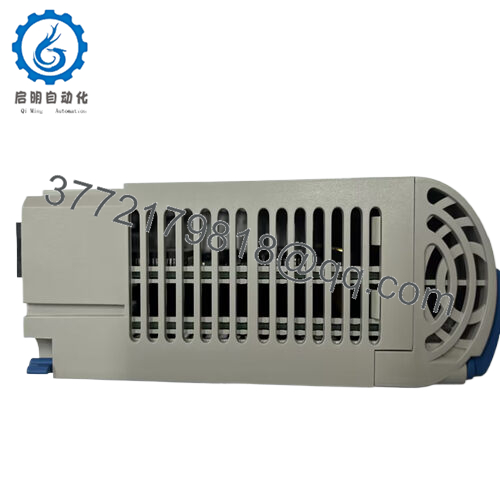

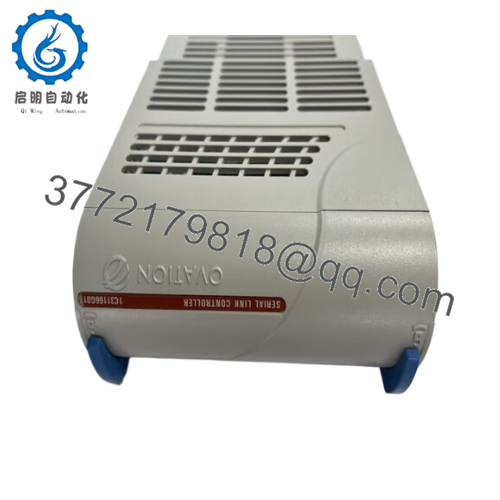

1C31166G01

1C31166G01

1C31166G01

1C31166G01

Dimensions, Mounting & Connection Notes

The available exact-model documentation identifies the 1C31166G01 as an Ovation electronics module that operates with a separate personality module, but it does not provide model-specific dimensions, weight, terminal torque, wire-size limits, or mounting-clearance values. The module is installed as part of the Ovation I/O subsystem and must be configured with the applicable personality module and controller SLC algorithm.



Detailed Product Overview

The Emerson 1C31166G01 is the electronics module in Emerson’s Ovation Link Controller subsystem. Rather than providing process I/O, it creates a serial communications path between an Ovation controller and equipment outside the Ovation system. This distinction matters during procurement: the 1C31166G01 supplies the Link Controller electronics, while the electrical interface is defined by the personality module installed with it.

Two serial ports are provided. The physical layer is selected through the personality module: 1C31169G01 provides RS-232, while 1C31169G02 provides a four-wire RS-485 or RS-422 connection. Because these are separate modules, a replacement or new installation must preserve the personality-module type that matches the existing field wiring and connected device. Substituting one personality module for another changes the serial interface and is not an equivalent configuration.

The Link Controller is intended for communication with a third-party device or system. It can handle many points over one serial port, but its operation depends on the appropriate SLC algorithm being loaded in the Ovation controller. That algorithm defines how the controller manages the serial link, including the communication behavior required by the external equipment. Before placing the link in service, the serial configuration should match the external device’s protocol, addressing, baud rate, and electrical topology.

For four-wire RS-485 or RS-422 installations, the transmit and receive pairs are separate. A two-wire RS-485 bus should not be connected directly to the four-wire Group 2 circuit without an engineered converter, because polarity and termination errors can disrupt every device on the link. Shielding, termination, and biasing should follow the engineered RS-485 or RS-422 topology and site cabinet standards.

The module is applicable for CE Mark certified Ovation systems. In that certification context, the RS-232 application-port cable must be shorter than 10 meters (32.8 feet). This constraint should be checked early in cabinet layout and cable routing for RS-232 integrations.



Applications & System Role

Within an Ovation control architecture, the 1C31166G01 acts as the electronics portion of the Link Controller subsystem. Its role is to connect the Ovation controller to third-party equipment over a serial data link, allowing the controller to exchange data with devices or systems that use RS-232, RS-422, or RS-485 communication.

Typical fit scenarios include integrating external control equipment, intelligent field devices, or other serial-based subsystems into an Ovation-based control environment. The exact protocol behavior, addressing, baud rate, and data mapping are determined by the SLC configuration in the Ovation controller and the requirements of the connected equipment.



FAQ

What is the Emerson 1C31166G01?
It is the Link Controller electronics module for the Emerson Ovation distributed control system. It provides the Ovation controller with a serial communications link to a third-party device or system.

Which serial interfaces does it support?
It supports RS-232, RS-422, and RS-485 serial communication through the appropriate personality module.

Does the 1C31166G01 work alone?
No. It requires a matching Ovation personality module for the selected physical interface and the appropriate SLC algorithm in the Ovation controller.

Which personality module is required for RS-232?
The 1C31169G01 personality module provides the RS-232 serial link.

Which personality module is required for RS-485 or RS-422?
The 1C31169G02 personality module provides a four-wire RS-485 or RS-422 serial link.

How many serial ports does it provide?
The Link Controller module provides two serial ports.

What controller software is required?
The appropriate Serial Link Controller (SLC) algorithm must reside in the Ovation controller for the module to perform its communication function.

Are there cable restrictions for RS-232 in CE Mark certified systems?
Yes. In CE Mark certified systems, the RS-232 application-port cable must be less than 10 meters (32.8 feet).
