3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Speed Detector Interface / Electronics Module |
| Number of Channels | 8 |
| Low Resolution Range | 200 Hz min – 51,200 Hz max (16-bit) |
| High Resolution Range | 0.72 Hz min – 65,535 Hz max (32-bit) |
| Supported Sensor Types | Pulse, magnetic pickup, encoder, sine wave (system dependent) |
| Power Supply | 24 VDC from Ovation backplane |
| Operating Temperature | –40 to +70 °C (common rating) |
| System Compatibility | Emerson Ovation DCS |
| Form Factor | Electronics module (EMOD) for Ovation I/O base |
4. Product Introduction

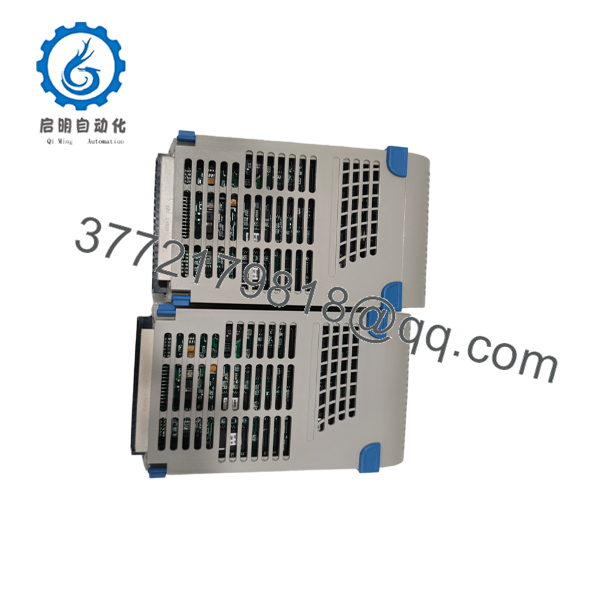

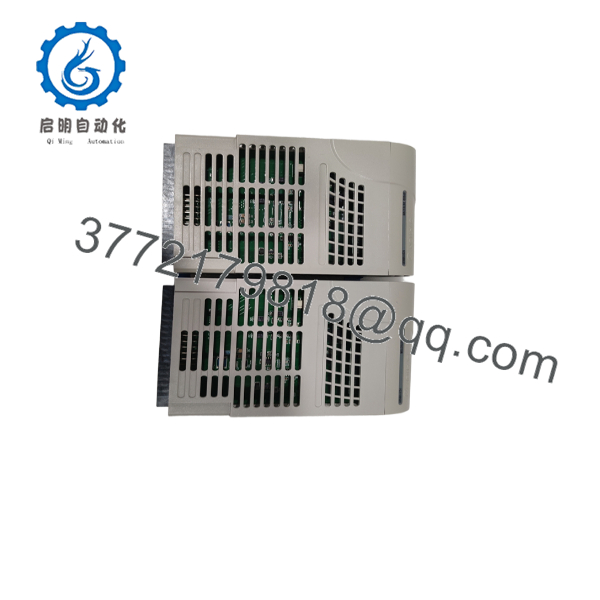

The Emerson 1C31189G01 is a Speed Detector Electronics Module for the Ovation distributed control system. It interfaces with speed sensors (magnetic pickups, pulse generators, or encoders) to provide accurate rotational speed or frequency measurement to the Ovation controller.
This 8-channel module supports both low-resolution and high-resolution measurement modes, covering a wide frequency range suitable for turbines, motors, pumps, and other rotating equipment. It is commonly used in power generation plants for turbine speed monitoring, overspeed protection inputs, and process applications that require reliable speed feedback.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No speed reading on channel(s) | Sensor failure, wiring open, or module fault | ✅ High | Measure sensor signal at module terminals with scope or meter | Verify sensor output and field wiring |
| Erratic or noisy speed values | Poor grounding, noise, or incorrect filtering | ✅ High | Check shield grounding and sensor signal quality | Improve grounding and adjust filtering if available |
| Reading stuck at zero or max | Channel failure or configuration error | ✅ High | Force test or swap with known-good channel | Replace module if channel remains faulty |
| Module not recognized | Poor seating or power issue | ✅ Medium | Check status LEDs and reseat in base | Confirm power and backplane contact |
| Incorrect scaling or resolution | Wrong mode selected in configuration | ✅ High | Verify high/low resolution setting in Ovation tools | Match configuration to actual speed range |
| Intermittent dropouts | Loose connector or aging component | ✅ Medium | Reseat module and inspect connectors | Clean contacts or replace unit |
If problems continue, capture Ovation diagnostic data, sensor signal waveforms if available, photos of the module and field wiring, and contact technical support with the serial number.
1C31189G01
1C31189G01
6. Frequently Asked Questions (FAQ)
Q: What is the 1C31189G01 used for?
A: It is an 8-channel Speed Detector Interface module that converts signals from speed sensors (pickups, encoders, etc.) into digital speed/frequency values for the Ovation controller.
Q: What frequency ranges does it support?
A: Low-resolution mode covers approximately 200 Hz to 51,200 Hz. High-resolution mode covers approximately 0.72 Hz to 65,535 Hz. Exact usable range depends on sensor type and configuration.
Q: Does it require a personality module?
A: Yes. Like most Ovation I/O, it typically pairs with a matching personality module and base unit for field terminations. Confirm the complete assembly required for your system.
Q: Can it be used for turbine overspeed applications?
A: It is commonly applied in speed monitoring and protection schemes. Always verify that the complete system (module, configuration, and voting logic) meets the required safety and response-time specifications for your application.
Q: Is this module still in production?
A: Many older Ovation specialty modules are no longer actively manufactured. New surplus and refurbished units remain available. Confirm compatibility with your specific Ovation revision before ordering.
Q: Why is surplus stock often less expensive?
A: New Surplus units are unused OEM material that never entered service—typically excess project inventory. They are functionally new but may lack the latest factory packaging or original manufacturer warranty paperwork. Every unit is tested and carries our warranty.
Q: How do you test these modules before shipping?
A: Each unit receives visual inspection, power-up verification, channel functional testing with simulated speed signals across both resolution ranges, and a short burn-in in a compatible Ovation base. Test documentation is available on request.
