3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Number of Channels | 8 |
| Input Type | RTD (Resistance Temperature Detector) |
| Resolution | 12 bits |
| Guaranteed Accuracy (@25 °C) | 0.10% ± [0.045 (Rcold/Rspan)]% (plus additional terms per datasheet) |
| Temperature Coefficient | 10 ppm/°C |
| Input Impedance | 100 MΩ (50 kΩ powered down) |
| Module Power | 3.6 W typical; 4.2 W maximum |
| Dielectric Isolation | Channel-to-channel: 200 V AC/DC; Channel-to-logic: 1000 V AC/DC |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | –40 to 85 °C (–40 to 185 °F) |
| Humidity (non-condensing) | 0 to 95% |
| Weight | Approx. 0.31–0.35 kg |
| Compatible Personality Module | 5X00121G01 |
4. Product Introduction
The Emerson 5X00119G01 is an 8-channel RTD Input Electronics Module (EMOD) for the Ovation distributed control system. It converts resistance signals from RTD sensors into precise temperature data for process monitoring and control in power generation, water treatment, and other continuous-process plants.
It pairs with the matching Personality Module (5X00121G01) and delivers 12-bit resolution with documented accuracy and isolation ratings. Plants choose this module when they need a direct, form-fit replacement that maintains existing Ovation I/O configuration and wiring practices without re-engineering the rack.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No LEDs / module dead on power-up | Backplane power or fuse failure | ❌ Low | Measure 24 V DC (or rack supply) at module connectors with multimeter | Check rack power supply and fuses first |
| All channels reading open or out-of-range | Wiring fault, open RTD, or wrong Personality Module | ✅ High | Verify correct 5X00121G01 Personality Module is installed; measure RTD resistance at field terminals | Confirm Personality Module match and field wiring |
| One or more channels intermittent | Loose terminal, lead resistance error, or poor 3-wire connection | ✅ High | Check terminal tightness; compare channel readings against known good RTD | Re-seat terminals; verify 2/3/4-wire configuration |
| High noise or drifting readings | Ground loop, shielding issue, or EMI | ✅ Medium | Inspect cable shield grounding (single-point preferred); check isolation | Correct grounding; verify channel-to-channel isolation |
| Module online but controller shows config error | Firmware/config mismatch or wrong slot address | ✅ High | Compare module ID and configuration in Ovation engineering tools against installed hardware | Reload or match configuration; confirm slot assignment |
| Thermal shutdown or high power draw | Overloaded rack or failed component | ✅ Medium | Measure module current draw; monitor rack temperature | Verify total rack load leaves ≥20 % margin |
If diagnostics remain unclear after these checks, capture the Ovation diagnostic buffer, photos of the module and wiring, and contact technical support with the serial number and firmware details.

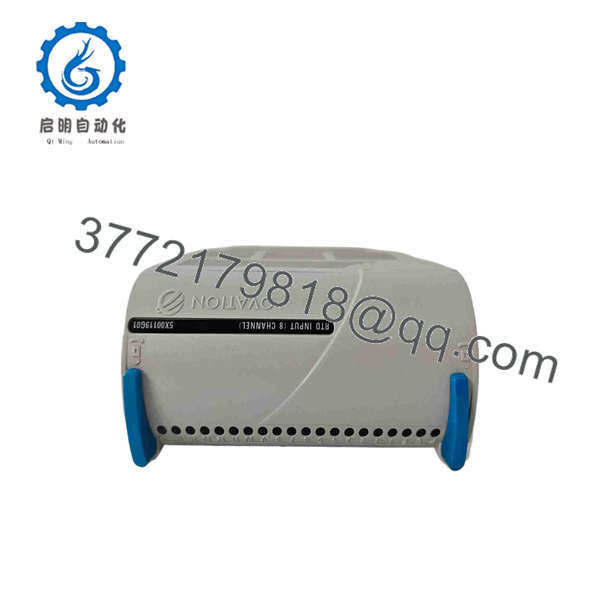

5X00119G01
5X00119G01
6. Frequently Asked Questions (FAQ)
Q: Does the 5X00119G01 require a specific Personality Module?
A: Yes. It is designed to work with the 5X00121G01 Personality Module. Using a different Personality Module will prevent proper operation or produce incorrect readings. Always confirm the pair before installation.
Q: Can I hot-swap this module?
A: No. Ovation EMODs are not designed for live insertion/removal under power. Power down the rack or isolate the I/O chain first. Hot-swapping risks damaging the backplane or the module itself.
Q: What RTD types and ranges does it support?
A: It supports multiple industrial RTD types and ranges (Pt, Cu, Ni, etc.) as defined in the Ovation I/O reference tables. Exact scale ranges, excitation currents, and accuracy vary by configuration. Always consult the specific range table for your application and verify against the OEM datasheet.
Q: Why is surplus stock often priced lower than new-from-factory?
A: New Surplus units are unused OEM material that never entered service—typically excess project stock or inventory that was opened for inspection. They are functionally new but may lack the original sealed packaging or current factory warranty paperwork. We test every unit under load and provide our own warranty coverage.
Q: Will configuration and calibration data stay after replacement?
A: The module itself does not store application configuration. Configuration resides in the Ovation controller and engineering database. After physical replacement you must ensure the controller recognizes the new hardware ID and that the correct range/scale parameters are applied. Always back up the current configuration before swapping.
Q: How do you test these modules before shipping?
A: Every unit undergoes visual inspection (no corrosion, rework marks, or UV damage), serial/traceability verification, power-on self-test on a genuine Ovation rack, channel-by-channel RTD simulation across multiple ranges, insulation resistance check, and a multi-hour burn-in with thermal monitoring. Test reports and photos are available on request.
Q: Is this an obsolete part?
A: The 5X00119G01 remains in active use across many Ovation installations. Availability of new surplus and tested units continues, but lead times can vary. We recommend confirming exact revision compatibility with your system documentation before ordering.
