3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Ethernet Link Controller (with Time Stamp) |
| Function | Native Ethernet interface at I/O level |
| Time Stamp Capability | Yes (supports Sequence of Events) |
| Communication | Ethernet (TCP/IP and related protocols) |
| System Compatibility | Emerson Ovation DCS |
| Form Factor | Ovation rack-mount Electronics Module |
| Power | Supplied via Ovation backplane |
| Weight | Approx. 0.3–0.64 lbs (0.14–0.29 kg) |
| Status | Discontinued by manufacturer |
4. Product Introduction

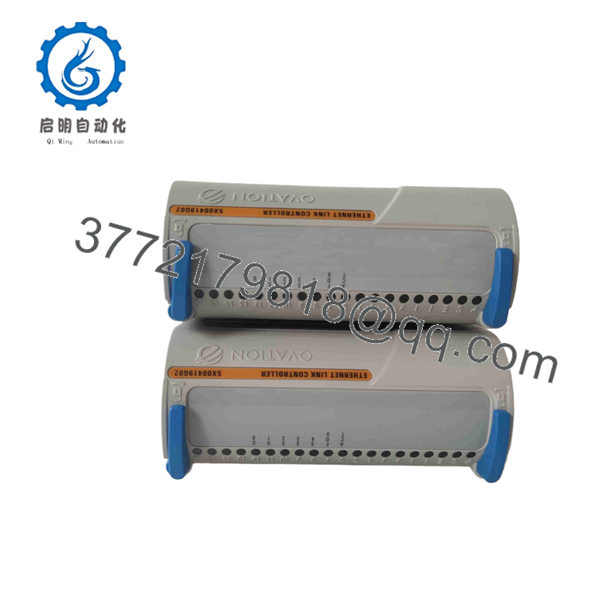

The Emerson 5X00419G02 is an Ethernet Link Controller module for the Ovation distributed control system. It provides native Ethernet connectivity directly at the I/O level, allowing the Ovation controller to exchange data with third-party devices and networks while supporting precise time-stamping for sequence-of-events applications.
This module is used in power generation and process plants that require reliable Ethernet integration without additional gateway hardware. It serves as a direct replacement for existing Ovation Ethernet Link Controllers, maintaining the original configuration and communication paths.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No Ethernet link / link LED off | Cable fault, switch port issue, or module failure | ✅ High | Check cable integrity and switch port status; observe module LEDs | Verify physical layer first before replacing module |
| Communication timeout with third-party devices | Protocol mismatch or configuration error | ✅ High | Confirm protocol package and IP settings in Ovation engineering tools | Match configuration to existing working module |
| Time stamps missing or inaccurate | Time synchronization failure | ✅ High | Check SOE/time-stamp status in diagnostics; verify network time source | Confirm time sync source and module configuration |
| Module not recognized by controller | Backplane contact or firmware mismatch | ✅ High | Reseat module; compare firmware/revision with system records | Ensure correct revision and full seating |
| Intermittent data dropouts | Network congestion or EMI | ✅ Medium | Monitor network traffic and error counters | Isolate network segment; check grounding |
| Module powers up but no data exchange | Personality or configuration mismatch | ✅ High | Verify module ID and configuration database match | Reload or mirror configuration from working unit |
If diagnostics remain unclear, capture Ovation diagnostic buffer, network traces, photos of the module and cabling, and contact technical support with the serial number and firmware details.
5X00419G02
5X00419G02
6. Frequently Asked Questions (FAQ)
Q: What does the 5X00419G02 do?
A: It is an Ethernet Link Controller module that provides native Ethernet connectivity at the I/O level in the Ovation system. It also supports time-stamping for sequence-of-events (SOE) applications.
Q: Is this module still in production?
A: No. It has been discontinued by the manufacturer. New surplus and tested units remain available through the secondary market, but stock is limited. Confirm exact revision compatibility before ordering.
Q: Can I hot-swap this module?
A: No. Power down the rack or isolate the I/O chain before removal or insertion. Live insertion risks damaging the backplane or the module.
Q: Does it support redundancy?
A: The Ovation Ethernet Link Controller architecture supports redundant pairs in many configurations. Verify your specific system design and algorithm setup for redundancy requirements.
Q: Will configuration data stay after replacement?
A: Configuration resides in the Ovation controller and engineering database, not permanently in the module itself. After physical replacement you must ensure the controller recognizes the new hardware and that the correct protocol and network parameters are applied. Always back up the current configuration first.
Q: Why is surplus stock priced differently from original factory pricing?
A: New Surplus units are unused OEM material that never entered service—typically excess project stock. They are functionally new but may lack original sealed packaging or current factory warranty. Every unit is functionally tested and carries our warranty coverage.
Q: How do you test these modules before shipping?
A: Each unit undergoes visual inspection, power-on self-test on a genuine Ovation rack, Ethernet link and communication handshake verification, time-stamp function check where applicable, and burn-in testing. Test reports and photos are available on request.
