Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | Emerson 8102-HO-IP |
| Product family | PACSystems PAC8000 / MTL 8000 Process I/O |
| Product type | Eight-channel analog output module |
| Number of output channels | 8 single-ended channels |
| Nominal output signal | 4–20 mA |
| Full output signal range | 1–23 mA |
| HART capability | HART pass-through; HART variable and status reporting |
| Resolution | 12 bits |
| Accuracy over temperature | ±0.25% of span |
| Output ripple | Less than 0.02% of span |
| Output compliance | 20 mA at 21.6 VDC supply into 700 Ω load |
| Open-loop detection threshold | 0.7 ±0.25 mA |
| Per-channel fault detection | Open-circuit detection |
| 4–20 mA response time | 25 ms maximum to Railbus availability |
| HART response time | 0.75 s per channel |
| Railbus isolation | 100 VAC, any channel to Railbus |
| Railbus current consumption | 100 mA typical; 150 mA maximum at 12 V |
| Field-power requirement | 24 VDC ±10%, bussed field power |
| Field-power consumption | 300 mA maximum |
| Field circuit classification | Non-incendive field circuits |
| FM non-incendive output rating | Voc 28.7 V; Isc 33 mA; Ca 0.17 µF; La 11.0 mH |
| Module key code | A4 |
| Module width | 42 mm |
| Weight | 200 g |
| Recommended standard terminal | 8602-FT-ST |
| Compatible fused terminal | 8604-FT-FU |
| Compatible non-incendive terminal | 8601-FT-NI |
| Compatible non-incendive fused terminal | 8603-FT-FU |
The Emerson 8102-HO-IP provides eight 4–20 mA analog outputs with HART pass-through and optional HART variable/status reporting. It needs 24 VDC bussed field power and supports up to a 700 Ω load at 20 mA with a 21.6 VDC supply. Match the terminal-base type and hazardous-area wiring requirements before ordering.
Product Introduction
The Emerson 8102-HO-IP is a PAC8000 modular I/O analog output module with eight single-ended 4–20 mA channels and HART capability. It is used to command field devices such as valve positioners, I/P converters, remote indicators, and other analog final-control equipment from a PAC8000 or MTL 8000 distributed I/O station.
Each channel provides 12-bit resolution, ±0.25% span accuracy, open-circuit detection, and HART pass-through. The module uses 24 VDC bussed field power and supports configurable startup and fail-state values. It is a current-output card, so it is not a direct replacement for voltage-output, digital-output, or intrinsically safe analog-output modules.

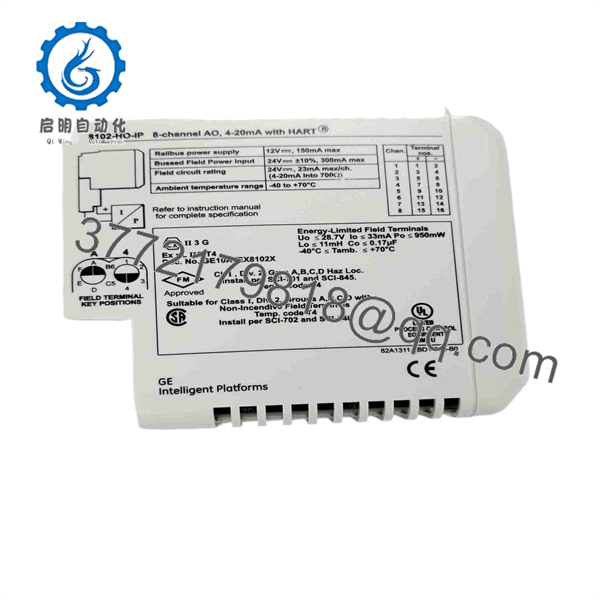

8102-HO-IP

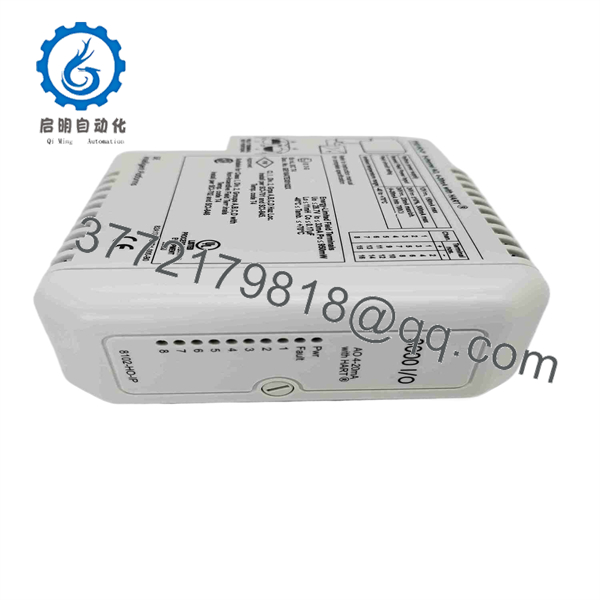

8102-HO-IP
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| All eight outputs read 0 mA | Missing 24 VDC bussed field power, Railbus power loss, I/O station fault, controller configuration issue | ⚠️ Medium | Measure 24 VDC field power at the terminal assembly and verify it remains within 24 VDC ±10%. Check Railbus status and confirm neighboring modules are online. | Check the common field supply, Railbus, and station controller before replacing the 8102-HO-IP. One card rarely causes every system-level fault by itself. |
| One channel reads 0 mA with a valid command | Open loop, failed field wiring, open fuse, incorrect terminal connection, inactive configured channel | ✅ High | Check channel diagnostics, then measure loop continuity with power isolated. Measure current in series with the field circuit and verify the output channel is configured Active. | Check the terminal block, field fuse, device input, and cable first. Replace the module only if the channel cannot source current into a verified test load. |
| Channel diagnostics show open circuit | Open cable, disconnected valve positioner, high loop resistance, failed field-device input | ⚠️ Medium | Inspect the field terminal and device connection. With the loop isolated, measure cable continuity and verify the connected device accepts a 4–20 mA input. | The open-loop threshold is approximately 0.7 mA. Treat the field circuit as suspect before replacing the output module. |
| Output current differs from commanded value | Incorrect scaling, loop resistance above limit, field supply too low, controller range configuration error | ⚠️ Medium | Command 4 mA, 12 mA, and 20 mA. Measure with a calibrated loop meter in series. Verify the load does not exceed 700 Ω at the available field voltage. | Correct scaling or loop loading first. A healthy module cannot maintain 20 mA into a load that exceeds its compliance capability. |
| Output stays at a fixed value after controller fault | Configured fail-safe value, last-value hold setting, communication loss behavior | ✅ High | Review the module configuration for initialization state and “Drive on fail-safe” selection. Compare actual output to the configured predefined or last value. | Do not call it a failed card until fail-safe settings are verified. A held output may be the intended process-safety behavior. |
| HART communicator cannot detect field device | HART reporting disabled, low loop impedance, incompatible device, poor field wiring, incorrect HART configuration | ⚠️ Medium | Confirm loop current is within the transmitter or positioner operating range. Verify HART variable/status reporting is enabled if required, and inspect the device-side wiring. | Start at the device and loop wiring. HART pass-through does not correct an improperly commissioned field instrument. |
| HART variables update slowly | Normal per-channel HART scan behavior, too many active HART channels, controller polling setup | ❌ Low | Check the expected update rate against the configured channel count and diagnostic behavior. The module specifies up to 0.75 s per HART channel. | This may be normal. Use direct 4–20 mA control for fast analog response; use HART data for secondary variables, device status, and diagnostics. |
| Output is noisy or unstable | Ground loop, shield termination error, field-power ripple, intermittent terminal connection, failing device input | ⚠️ Medium | Measure output ripple with an oscilloscope or high-resolution meter. Inspect shield routing and confirm signal cable separation from VFD output and high-current conductors. | Verify grounding and shielding practices before replacing the module. Avoid grounding analog shields at both ends unless the approved site design requires it. |
| Module will not seat or is rejected by the carrier | Incorrect base, wrong keying, bent connector, incompatible terminal assembly | ⚠️ Medium | Verify Module Key Code A4 and inspect the mating terminal/base hardware. Confirm the installed field terminal matches approved PAC8000 terminal types. | Never force the module into the base. Confirm keying and terminal compatibility before applying power. |
| Multiple analog outputs fail after maintenance | 24 VDC supply fuse open, common field-return issue, terminal-base disturbance, rail connection fault | ❌ Low | Check common field power, common return, fuse condition, and terminal seating. Review what was touched during maintenance. | Focus on shared wiring and power distribution before replacing the 8102-HO-IP. |
❗ Field-power warning: The 8102-HO-IP requires 24 VDC bussed field power. Railbus power alone does not make the analog output loops operate. Measure the actual field voltage at the terminal hardware before declaring the card defective.
❗ Load-compliance warning: At 20 mA and a 21.6 VDC field supply, the module supports up to 700 Ω loop load. Excess cable resistance, an incorrectly selected input resistor, or a weak field supply can prevent the output from reaching its commanded value. Do the loop calculation before replacing hardware.
❗ Terminal-base warning: Take a photo of the installed terminal assembly before removal. The module uses key code A4 and has different compatible terminal options for standard, fused, non-incendive, and fused non-incendive wiring. Forcing the wrong module or base can damage the connector and create an unsafe field-wiring condition.
❗ ESD warning: Use a grounded wrist strap and handle the card by its edges. Do not touch the backplane connector or terminal contacts. A static event may not create an immediate fault but can degrade an analog output channel enough to cause hard-to-find calibration drift later.
Keep these checks in mind and you will save yourself 90% of typical rework time. If the problem remains unresolved, provide technical support with photos of the module and terminal block, I/O diagnostics, 24 VDC field-power measurement, commanded-versus-measured loop current, field-device model, and HART communication logs.
Frequently Asked Questions (FAQ)
Q: What does the Emerson 8102-HO-IP do?
A: The 8102-HO-IP provides eight single-ended 4–20 mA analog-output channels for PAC8000 or MTL 8000 Process I/O systems. It commands analog field devices such as valve positioners, remote indicators, and I/P converters. Each channel also supports HART pass-through and can report HART variables and device status when configured.
Q: Is the 8102-HO-IP a current-output or voltage-output module?
A: It is a current-output module. Its nominal output range is 4–20 mA, with a full output capability of 1–23 mA. Do not substitute it for a 0–10 V, ±10 V, relay, or digital-output module simply because the terminal assembly looks similar.
Q: Does the module require external field power?
A: Yes. The 8102-HO-IP requires 24 VDC ±10% bussed field power and can draw up to 300 mA from that supply. It also draws power from the 12 V Railbus, up to 150 mA maximum. Verify both sources when diagnosing a dead or nonresponsive module.
Q: What is the maximum field load on each 4–20 mA channel?
A: The specified compliance is 20 mA at 21.6 VDC into a 700 Ω load. Keep total loop resistance below that limit, including cable resistance, field-device burden, barrier or isolator burden, and any series protection components. If the loop exceeds the available compliance, the output cannot reach full-scale current.
Q: Can I use HART devices with all eight channels?
A: Yes, the module supports HART pass-through and HART variable/status reporting. However, HART data updates more slowly than the analog current output; the stated HART response time is up to 0.75 seconds per channel. Use the 4–20 mA signal for fast control and HART data for configuration, diagnostics, secondary variables, and asset monitoring.
Q: What happens to the analog outputs if the I/O station or controller fails?
A: The behavior depends on the module configuration. You can configure an initialization state and choose whether each channel drives to a predefined value or holds its last value on fail-safe. Review those settings during commissioning. A fixed output after a communication failure may be the configured safety response, not a failed channel.
Q: Is the 8102-HO-IP suitable for hazardous areas?
A: The module supports non-incendive field circuits and specifies FM non-incendive wiring parameters per channel. Hazardous-area suitability depends on the complete installation: terminal assembly, wiring method, entity parameters, enclosure, area classification, local regulations, and approved system documentation. Do not rely on the module label alone for a hazardous-location design.
Q: Why may New Surplus stock cost less than factory stock?
A: New Surplus generally means unused original inventory acquired from excess MRO stock, canceled projects, distributor liquidation, or OEM spare shelves. It may not include current factory channel support, current production dates, or every original accessory. Before ordering, request photos of the exact unit, label and serial information, terminal compatibility confirmation, incoming inspection record, power-up test details, warranty terms, and actual shipping lead time.
