3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | A6110 |
| Function | Shaft relative vibration monitoring |
| Channels | Dual (independent or combined modes) |
| Input Type | Eddy current / differential (non-contact) |
| Compatible Sensors | Emerson PR6422, PR6423, PR6424, PR6425 |
| Input Voltage Range | 0 to –22 VDC |
| Frequency Range | Lower cutoff 1 or 5 Hz; upper 50–2000 Hz adjustable |
| Form Factor | 1-slot, 3U plug-in module |
| System Compatibility | AMS 6500 Machinery Health Monitor |
| Standards | Designed for API 670 machinery protection |
4. Product Introduction

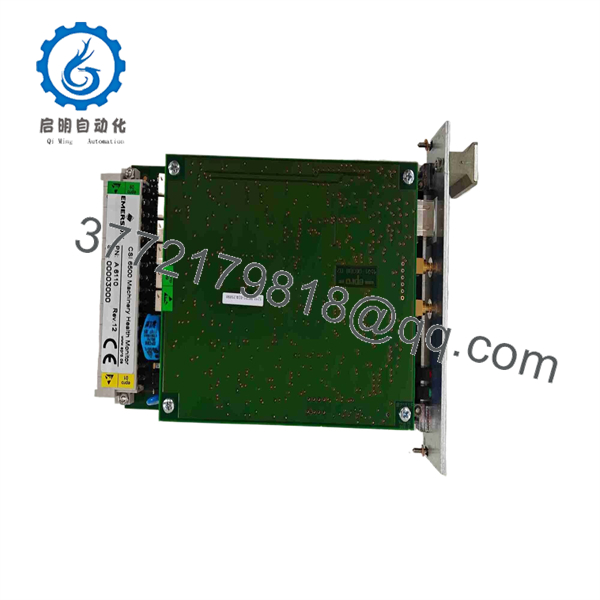

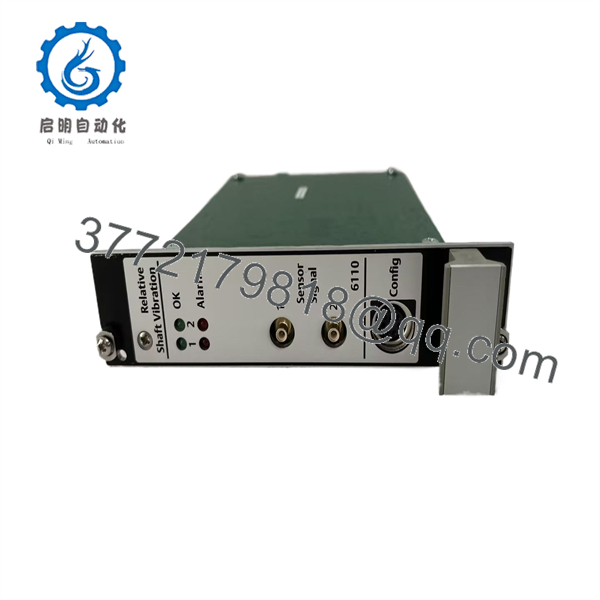

The Emerson A6110 is a dual-channel shaft relative vibration monitor module for the AMS 6500 Machinery Health Monitor system. It measures shaft vibration relative to the bearing housing using non-contact eddy-current displacement sensors and provides continuous protection for critical rotating equipment such as steam turbines, gas turbines, compressors, and hydro machines.
The module occupies a single slot, helping reduce cabinet space compared with older multi-channel cards. It compares measured vibration against configurable alarm setpoints and drives alarms or relays as required. Confirm sensor type, cable lengths, and AMS 6500 system configuration before installation.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No vibration reading | Sensor, cable, or power issue | ✅ High | Verify sensor gap, cable continuity, and power | Check sensor installation and module power |
| High or unstable reading | Incorrect gap or dirty probe | ✅ High | Measure probe-to-shaft gap and clean probe | Adjust gap per sensor datasheet; clean target area |
| Channel mismatch or cross-talk | Wiring or configuration error | ✅ High | Verify independent vs combined mode settings | Review AMS 6500 configuration software |
| Alarm trips unexpectedly | Setpoint too tight or noise | ✅ Medium | Review alarm setpoints and filter settings | Adjust setpoints and frequency filters |
| Module not recognized | Slot or backplane issue | ❌ Medium | Reseat module; check adjacent modules | Confirm proper seating and system power cycle |
| Drift over time | Temperature or sensor aging | ✅ Medium | Compare with known-good channel or portable meter | Calibrate or replace sensor/module as needed |
If issues continue, record exact alarm codes, sensor part numbers, and gap measurements, and photograph the module and wiring.
A6110
A6110
6. Frequently Asked Questions (FAQ)
Q: What does the A6110 measure?
A: It measures shaft relative vibration (shaft motion relative to the bearing housing) using non-contact eddy-current probes. This is the standard measurement for sleeve-bearing machines.
Q: How many channels does it have?
A: Two independent channels. They can be configured for independent monitoring or combined modes depending on the application.
Q: Which sensors are compatible?
A: Emerson / CSI eddy-current sensors such as PR6422, PR6423, PR6424, and PR6425 with appropriate drivers (e.g., CON 011/91 series). Confirm exact sensor and cable compatibility.
Q: Is this module API 670 compliant?
A: It is designed for use in API 670 machinery protection systems when properly configured within the AMS 6500 rack.
Q: Can I hot-swap the A6110?
A: Follow Emerson AMS 6500 procedures. In most cases the rack should be powered down or the specific slot isolated according to the system manual to avoid disruption or damage.
Q: What should I check before ordering a replacement?
A: Note the exact module part number, rack slot location, sensor models, cable lengths, and current configuration settings. Photograph the front panel and any labels.
Q: Is the A6110 still in production?
A: Availability of new modules varies. Many units on the market are new surplus or carefully tested. Confirm current stock status and any firmware or hardware revision differences when ordering.
