3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | A6312 / A6312-8 |
| Function | Speed, keyphasor, zero speed, rotation direction |
| Channels | Two independent channels |
| Input Type | Eddy current, differential |
| Compatible Sensors | Emerson 6422, 6423, 6424, 6425 |
| Input Voltage Range | 0 to ±27.3 VDC |
| Frequency / Speed Range | 0 – 20,000 Hz / up to 65,535 RPM |
| Form Factor | 1-slot, 3U plug-in module |
| System Compatibility | AMS 6500 / CSI 6500 / IMR 6000 |
| Standards | Designed for API 670 machinery protection |
| Special Features | Redundant mode with automatic switchover |
4. Product Introduction
The Emerson A6312 is a dual-channel Speed and Key Monitor module for the AMS 6500 / CSI 6500 Machinery Health Monitor system. It measures rotational speed, phase (keyphasor), zero speed, and direction of rotation on critical rotating machinery such as steam turbines, gas turbines, compressors, and hydro machines.
The module accepts inputs from eddy-current probes viewing a toothed wheel, keyway, or gear. It can be configured for redundant operation with automatic switchover from primary to backup tachometer. The A6312 occupies a single slot and integrates with other AMS 6500 monitors to form a complete API 670 protection system.

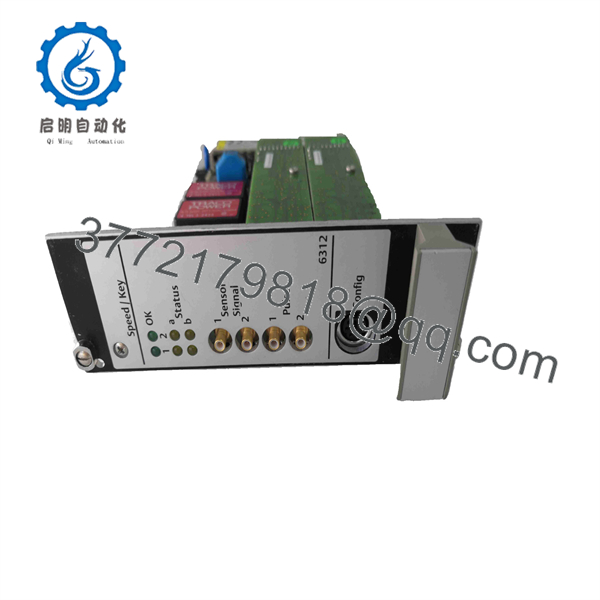

A6312

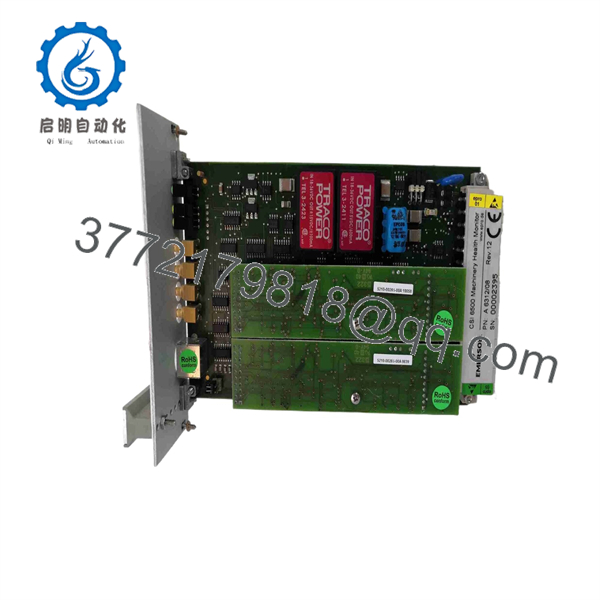

A6312
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No speed reading | Sensor, gap, or cable issue | ✅ High | Verify probe gap, cable continuity, and power | Adjust gap; check sensor and wiring |
| Erratic or jumping speed | Dirty target, loose probe, noise | ✅ High | Inspect target surface and probe mounting | Clean target; secure probe; check shielding |
| Zero-speed alarm false | Configuration or pulse detection issue | ✅ High | Review zero-speed time window settings | Adjust pulse-width and time-window parameters |
| Phase/keyphasor unstable | Multiple marks or axial movement | ✅ Medium | Confirm single key mark and axial position | Use single keyway; ensure proper axial alignment |
| Redundant switchover fails | Sensor or configuration mismatch | ✅ High | Verify both sensors in same axial plane | Check redundant mode setup and sensor health |
| Module not recognized | Slot or backplane issue | ❌ Medium | Reseat module; check system power | Confirm proper seating and power cycle |
If problems continue, record exact alarm codes, sensor part numbers, gap voltages, and configuration settings.
6. Frequently Asked Questions (FAQ)
Q: What does the A6312 measure?
A: Rotational speed, keyphasor (phase reference), zero speed, and direction of rotation using eddy-current probes on a toothed wheel or keyway.
Q: How many channels does it have?
A: Two independent channels. It can also be configured for redundant primary/backup operation.
Q: Which sensors are compatible?
A: Emerson eddy-current sensors such as 6422, 6423, 6424, and 6425 (with appropriate drivers). Confirm exact sensor and cable compatibility.
Q: Can it detect reverse rotation and zero speed?
A: Yes. Both functions are supported and configurable.
Q: Is this module API 670 compliant?
A: It is designed for use in API 670 machinery protection systems when properly configured within the AMS 6500 / CSI 6500 rack.
Q: What should I check before ordering a replacement?
A: Note the exact module part number (A6312 or -8), rack type, sensor models, and current configuration. Photograph the front panel and labels.
Q: Is the still in production?
A: Availability of new modules varies by exact variant. Many units on the market are new surplus or carefully tested. Confirm current stock and revision when ordering.
