Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Emerson EMC |
| Model | DX-205 |
| Product Family | DX Series Positioning Drives |
| Drive Rating | 5 in-lb |
| Amplifier | DXA-205 |
| Motor | DXM-202 |
| Cable | TDT-XX |
| Drive Type | Digital positioning servo drive |
| Application | Servo positioning / motion control |
| Programming | PC-based programming software |
| Interface | Serial PC interface for programming |
| Optional I/O | IOM-1, PCM-1, PCM-2, PCM-5 modules |
| Input/Output Expansion | IOM-1 provides additional optically isolated I/O |
| Typical Single-Phase Line Rating | 10 A guideline for DX-205 |
| Feedback Wiring | Shielded cable required |
| Documentation Status | Legacy Emerson EMC product documentation |
The important distinction here is that DX-205 is the positioning-drive system designation, while DXA-205 is the amplifier model. A current secondary-market listing identifies DXA-205 as the amplifier for the DX-205 drive system and also lists 850023-01 as an alternate part number.
The Emerson EMC manual specifies the DX-205 as a 5 in-lb positioning-drive configuration and lists the associated DXA-205 amplifier, DXM-202 motor, and TDT-XX cable. The same documentation lists a 10 A typical line-current guideline for the DX-205.
Product Introduction
The Emerson DX-205 is a legacy digital positioning servo-drive system from Emerson EMC’s DX Series. It is designed for machine motion applications requiring controlled servo positioning, with the DX-205 configuration using a DXA-205 amplifier and DXM-202 motor.
For replacement work, don’t confuse DX-205 with DXA-205. The latter is the amplifier component, while DX-205 identifies the complete positioning-drive configuration. Optional I/O and PCM modules were available for expanding the drive’s machine-interface capabilities.

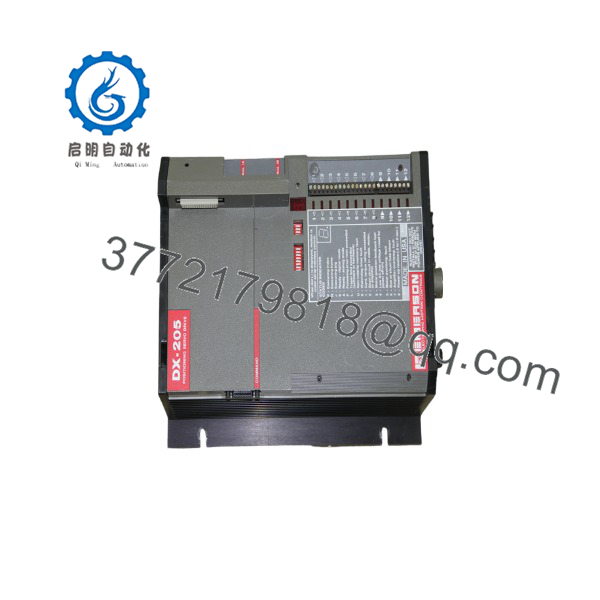

DX-205
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Motor does not move | Drive power, amplifier, enable signal, or motor connection | ✅ High | Verify incoming power and amplifier status before checking the motor | Check the and external enable circuit first |
| Positioning error | Feedback, tuning, mechanical load, or configuration | ✅ High | Compare commanded and actual position using the drive’s diagnostic/programming interface | Check feedback wiring and mechanical coupling |
| Servo hunts or oscillates | Incorrect tuning or mechanical resonance | ✅ High | Monitor position error and motor response at low speed | Review servo parameters before replacing hardware |
| Drive faults immediately | Power issue, amplifier fault, motor problem, or configuration error | ✅ High | Record the exact fault condition before cycling power | Diagnose the fault code rather than replacing the entire system |
| Motor runs but misses position | Feedback or mechanical problem | ✅ High | Inspect feedback wiring and verify mechanical coupling | Do not assume the amplifier is defective |
| Intermittent operation | Cable, connector, shielding, or power issue | ⚠️ Medium | Inspect TDT-XX cable connections and shielding | Check cabling before replacing the drive |
| Controller cannot communicate with drive | PC/serial interface or programming connection issue | ⚠️ Medium | Check serial connection and programming hardware | Verify communication hardware before condemning the drive |
| Insufficient machine I/O | Basic drive I/O capacity exceeded | ❌ Low | Check whether an IOM-1 or other expansion module is installed | Confirm the required I/O architecture |
| Motor overheats | Excessive load, tuning, duty cycle, or environmental condition | ⚠️ Medium | Check load, operating cycle, and motor temperature | Investigate application conditions before replacing electronics |
Field check: The Emerson documentation specifically describes PC-based programming as an important tool for changing, uploading, downloading, and troubleshooting drive parameters. Use the programming interface to capture the existing configuration before replacing a functioning amplifier.
If the diagnosis remains uncertain, provide the supplier with the DX-205/ identification label, amplifier revision, motor model, cable designation, fault information, and photographs of the installed assembly.
Frequently Asked Questions (FAQ)
What is the Emerson DX-205?
The DX-205 is an Emerson EMC digital positioning servo-drive configuration rated at 5 in-lb. The documented configuration consists of a amplifier, DXM-202 motor, and TDT-XX cable.
Is DX-205 the same part as ?
No. This is an important procurement distinction. DX-205 identifies the positioning-drive configuration, while is the amplifier used in that configuration. Secondary-market documentation also lists as the amplifier for the DX-205 system.
What motor is used with the DX-205?
The Emerson EMC system documentation lists the DXM-202 motor with the DX-205 and configuration.
Can I replace only the amplifier?
Potentially, but verify the complete existing configuration first. The amplifier is a specific component of the DX-205 system. Check the amplifier model, motor, cable, machine parameters, and application requirements before ordering a replacement.
Does the DX-205 support additional I/O?
Yes. Emerson EMC documentation describes optional IOM-1, PCM-1, PCM-2, and PCM-5 plug-on modules. The IOM-1 expands the drive’s I/O capability, with its lines described as optically isolated and configurable for current-sinking or current-sourcing arrangements.
How should I troubleshoot a DX-205 before replacing it?
Start with the basics: record the fault condition, verify incoming power, inspect the amplifier and motor connections, check the feedback circuit, and verify the existing drive parameters. The original documentation emphasizes using a PC and serial interface for programming and troubleshooting.
Is the Emerson DX-205 a current-generation Emerson drive?
No. The DX-205 belongs to the legacy Emerson EMC DX Series. Emerson’s current automation portfolio is centered on newer platforms such as PACSystems and other modern control and motion products.
