- Key Technical Specifications
| Parameter | Specification |
| Part / Model Number | UES815S-24A / UES815S-24A/24V |
| Manufacturer | Emerson Automation Solutions / Epro GmbH |
| System Compatibility | MMS Series Turbomachinery Monitoring & Protection Racks |
| Input Voltage Range | 100–240 VAC (47–63 Hz) or direct 24 VDC industrial input |
| Output Voltage | Regulated +24 VDC (15W nominal backplane drive output) |
| Efficiency | > 85% at nominal load |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Protection Features | Short-circuit protection, over-voltage clamp, thermal shutdown |
| Form Factor | Modular plug-in card for 19-inch MMS card cages |
| Weight | ~0.20 kg (0.44 lbs) |
- Product Introduction
The Emerson Epro UES815S-24A is a specialized power supply module built for Epro (now Emerson) Machinery Monitoring Systems (MMS), such as the MMS 6000 and MMS 3000 series. Critical turbomachinery—including steam/gas turbines, high-pressure compressors, and large industrial pumps—relies on MMS racks for continuous vibration, shaft displacement, and speed monitoring.
The UES815S-24A conditions external line or DC auxiliary power into ripple-free +24 VDC power, feeding processing cards, transmitter modules, and eddy current sensor drivers (such as CON011 / CON021 signal converters). Engineered for high uptime in power generation and petrochemical plants, it features onboard over-current and over-voltage safeguards to prevent power anomalies from propagating across sensitive monitoring backplanes.
- Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
| Rack power LED off / All MMS cards unpowered | Input fuse blown or primary power rail loss | ✅ High | Measure AC/DC incoming supply at terminal rail; check front-panel power LED | Verify main supply voltage. Replace internal chassis fuse or replace UES815S-24A module if primary stage has failed. |
| 24V output voltage below tolerance (< 21.6V DC) | Internal filter capacitor degradation or backplane short | ✅ High | Disconnect rack cards one-by-one while monitoring 24V DC rail with a DMM | Isolate whether a downstream sensor card is overloading the bus. If voltage stays low with no load, replace UES815S-24A. |
| Excessive AC ripple on 24V output rail | Aging output filter stage or power factor degradation | ✅ High | Check 24V output using an oscilloscope set to AC coupling (looking for > 100mV ripple) | High ripple causes false vibration readings on sensor cards. Replace the power module immediately. |
| Module shuts down intermittently when hot | Thermal protection tripping due to rack cooling fan failure | ✅ High | Inspect rack ventilation filters and cabinet cooling fans; measure heatsink temp | Clear cabinet air filters and verify rack fans. If thermal shutdown occurs under normal temperatures, swap out the module. |

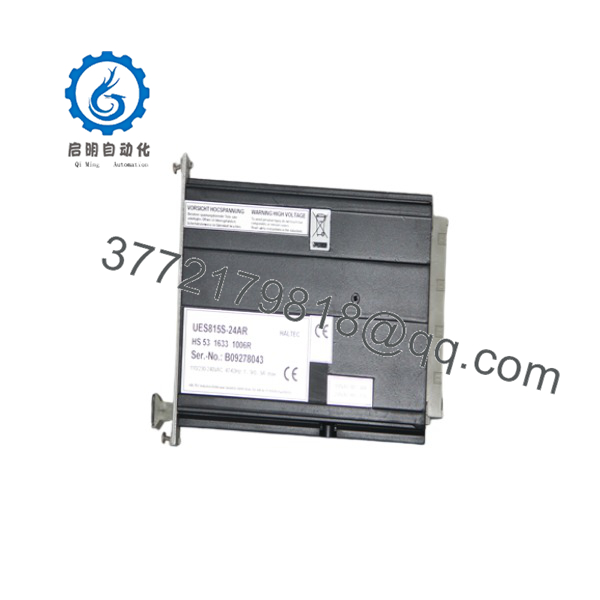

UES815S-24A

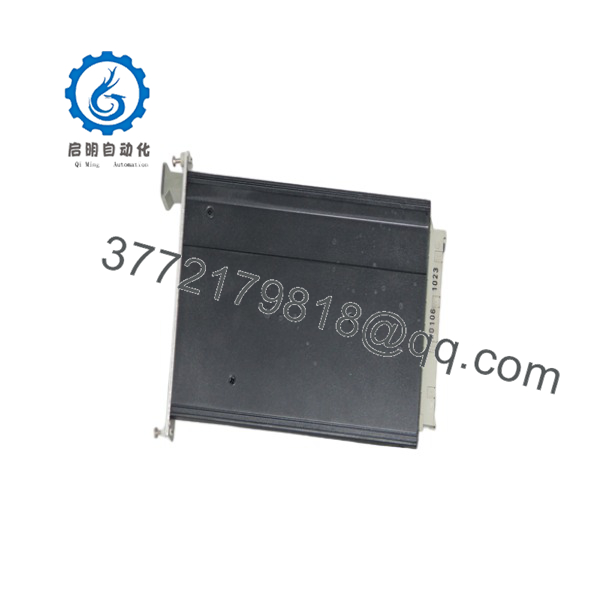

UES815S-24A
- Frequently Asked Questions (FAQ)
Q: Who originally manufactured the ?
A: The module was originally developed by Epro GmbH (formerly Philips MMS Division), which was later acquired by Emerson Electric Co. to expand their machinery protection and Reliability Solutions portfolio.
Q: Can the be used to power non-Epro 24V devices?
A: While it outputs standard 24 VDC, it is specifically designed around Eurocard rack form factors and backplane pinouts for MMS turbomachinery monitoring card cages.
Q: Is the still actively manufactured by Emerson?
A: No. Legacy Epro MMS systems have transitioned to mature/legacy product lifecycles (superseded by modern AMS 6500 ATG systems). Replacement modules are supplied via high-quality new surplus or certified refurbished stock.
Q: What causes most failures in modules?
A: Long-term exposure to elevated ambient cabinet temperatures in power plants leading to electrolytic capacitor drying, or primary line surges from unstable plant supply grids.
Q: How are surplus or refurbished Epro modules verified before shipment?
A: Each module undergoes a 5-step SOP quality inspection: visual PCB and connector pin check, 100–240V input isolation test, full-load 24V DC ripple and regulation check on an active MMS rack backplane, 4-hour thermal soak under electrical load, and ESD static-shield packaging prior to dispatch.
