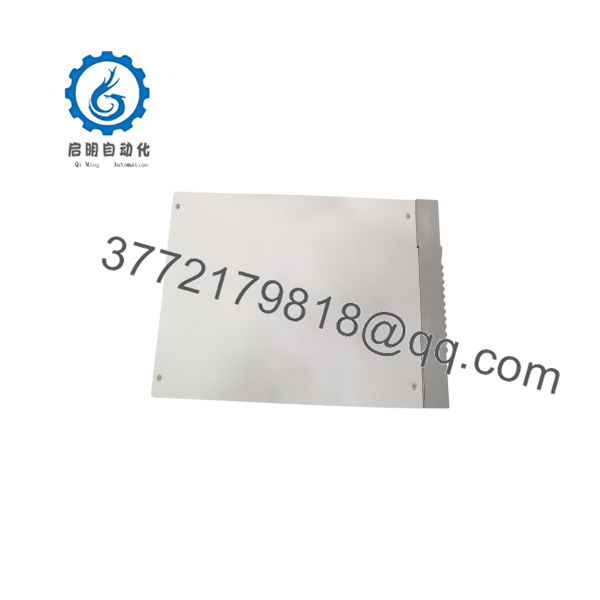

Emerson HD22005-2 220 VDC 5 A Rectifier Module

Description

Key Technical Specifications

Parameter	Value
Manufacturer	Emerson
Model	HD22005-2
Product Type	High-Frequency Rectifier / Charging Module
System	PowerMaster Intelligent High-Frequency Switching Electric Power System
Input Voltage	323–475 VAC
Input Configuration	3-phase, 3-wire
Input Frequency	50 Hz ±10%
Maximum Input Current	≤4 A
Nominal Output Voltage	220 VDC
Adjustable Output Voltage	198–286 VDC
Rated Output Current	5 A
Maximum Output	105–110% of rated current
Power Factor	≥0.92
Efficiency	≥94%
Voltage Regulation Accuracy	≤±0.5%
Current Regulation Accuracy	≤±1%
Soft-Start Time	3–8 s
Constant-Current Range	10–100%
Short-Circuit Protection	Foldback; recoverable
Overtemperature Protection	Approximately 85°C; recoverable after cooling
Cooling	Forced/controlled cooling system; verify unit revision
Operating Modes	Automatic / Manual
Communication	Remote monitoring/control through system controller
Lifecycle	Legacy / discontinued

The PowerMaster technical guide identifies HD22005-2 as a 220 V/5 A rectifier. It specifies a 323–475 VAC three-phase input, 50 Hz ±10%, ≥0.92 power factor, ≥94% efficiency, and a 198–286 VDC output range for the 220 V series.

The same documentation specifies ≤±0.5% voltage regulation accuracy, ≤±1% current regulation accuracy, 3–8 second voltage rise time, and short-circuit foldback protection.



Product Introduction

The Emerson HD22005-2 is a 220 VDC, 5 A high-frequency rectifier/charging module used in Emerson PowerMaster intelligent DC power systems. It converts three-phase AC input into regulated DC power for DC distribution and battery-charging applications. The documented input range is 323–475 VAC, with a nominal 220 VDC output.

This is a legacy power-system component rather than a general-purpose 220 VDC power supply. Its automatic/manual control functions, remote monitoring, protection circuits, and system-controller interface must be considered when replacing it. Industrial spare-parts sources identify HD22005-2 as a discontinued Emerson component.

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation — Approximately 10–15 Minutes

⚠️ Safety First

1. Notify operations and obtain an approved DC-system maintenance window.
2. Place the connected DC load and battery system in the required safe state.
3. Apply lockout/tagout (LOTO) to the applicable AC input.
4. Confirm the rectifier’s operating condition and whether other modules are carrying the DC load.
5. Verify the input and output voltages with properly rated test equipment.
6. Do not assume the output is de-energized simply because the AC input is isolated. A connected battery bank can maintain the DC bus.

Tools Required

• CAT-rated digital multimeter
• ESD wrist strap
• Appropriate insulated screwdrivers
• Wire/connector labels
• Smartphone/camera
• Torque screwdriver where specified

Data Backup

Before removing the original HD22005-2:

1. Photograph the complete nameplate.
2. Record the module’s position in the rectifier rack.
3. Photograph power and communication connections.
4. Record the controller/PCU configuration.
5. Photograph DIP switches or address settings.
6. Record automatic/manual mode settings.
7. Record the operating voltage and current displayed by the system.
8. Save available system configuration and alarm records.

⚠️ The DC output can remain energized from the battery even after the rectifier input has been disconnected.

Stage 2: Removing the Old Module — Approximately 5–10 Minutes

1. Confirm the approved isolation procedure is active.
2. Verify the relevant AC input is de-energized.
3. Verify the DC-side condition before disconnecting the module.
4. Photograph all connectors and switch settings.
5. Label connections if multiple modules have similar wiring.
6. Release the module’s mechanical retention.
7. Withdraw the HD22005-2 carefully and straight.
8. Inspect the connector and rack contacts.
9. Check for evidence of overheating, arcing, corrosion, or damaged contacts.

Keep the old module available until the replacement passes loaded testing.

Stage 3: Installing the New Module — Approximately 5–10 Minutes

1. Use ESD protection when handling the replacement.
2. Verify the exact model: .
3. Confirm that the replacement is the 220 V/5 A version.
4. Compare the replacement connector arrangement with the removed unit.
5. Verify address and operating-mode settings.
6. Insert the module into the correct rack position.
7. Secure the mechanical locking mechanism.
8. Reconnect all applicable power and communication connections.
9. Check connector engagement and polarity.
10. Confirm the module is mechanically seated before energization.

Configuration Clone — Critical

The technical guide describes automatic/manual operation and address/control-mode selection. Do not simply leave a replacement module at factory-default settings. Reproduce the original configuration and confirm the system controller recognizes the module.

Self-Checklist

• verified
• 220 VDC / 5 A rating verified
• Correct rack position
• DIP/address settings copied
• Automatic/manual mode checked
• Power connectors secured
• Communication connection secured
• Mechanical lock engaged

Stage 4: Power-On & Testing — Approximately 10–20 Minutes

1. Perform a final visual inspection.
2. Verify the AC input wiring.
3. Verify the DC output polarity and connections.
4. Confirm the system is ready for rectifier startup.
5. Energize the AC input according to the approved procedure.
6. Observe the startup sequence.
7. Verify the output voltage.
8. Confirm the system controller recognizes the rectifier.
9. Check voltage and current readings.
10. Verify alarm and protection status.
11. Apply the required load gradually.
12. Confirm stable operation under load.
13. Verify remote monitoring signals.
14. Check the module for abnormal heating, noise, or repeated fault cycling.

⚠️ Do not evaluate a replacement solely at no-load. A rectifier can show correct voltage while failing under actual DC load.

Technical Pitfall & Survival Guide

❗ 1. Confusing With HD22010-2

Both are 220 V-series rectifiers, but their rated output currents differ:

• 5 A
• HD22010-2: 10 A

The PowerMaster documentation explicitly separates these models.

Do not substitute based on the 220 V designation alone.

❗ 2. Forgetting the Battery Is Still Connected

This is the most serious field hazard.

The belongs to a DC power system that can include a battery bus. Isolating the AC input does not necessarily remove DC voltage from the rectifier output.

Treat the DC terminals as energized until the approved isolation procedure and meter verification establish otherwise.

❗ 3. Incorrect Automatic/Manual Configuration

The PowerMaster documentation describes automatic and manual operating modes. In automatic mode, the system controller can control output voltage, current limit, and system operation; manual mode allows local adjustment.

A replacement module with the wrong mode setting can appear electrically healthy while not behaving correctly within the DC system.

❗ 4. Ignoring the Input Range

The specified input range is 323–475 VAC, three-phase, three-wire. This is not a conventional single-phase 220/230 VAC power supply.

Verify the upstream AC distribution before connecting a replacement.

❗ 5. Replacing a Module Without Checking the Other Rectifiers

If multiple rectifier modules operate in parallel, the remaining modules affect the replacement procedure and available load capacity.

Before removing one module, determine:

• Number of installed rectifiers
• Current DC load
• Battery charging status
• Remaining rectifier capacity
• Alarm state
• Controller recognition

This prevents a maintenance job from turning into a DC-bus interruption.



Frequently Asked Questions (FAQ)

What is the Emerson ?

The is a 220 VDC, 5 A high-frequency rectifier/charging module used in Emerson PowerMaster intelligent DC power systems. Its primary function is AC-to-DC conversion and regulated charging/DC-bus supply.

What is the input voltage of ?

The documented input is 323–475 VAC, three-phase, three-wire, with a nominal frequency of 50 Hz ±10%. The specified maximum input current is ≤4 A.

What is the output rating?

has a 220 VDC nominal output and 5 A rated output. The documented adjustable output range for the 220 V series is 198–286 VDC. Maximum output is specified at approximately 105–110% of rated current.

Is obsolete?

Available Emerson DC-system service documentation identifies as a discontinued component. Specialist industrial suppliers continue to list the model as spare stock.

For a plant that still depends on this hardware, maintaining a tested spare is worth considering.

Can be hot-swapped?

Some supplier documentation for the Emerson DC-system family states that charging and monitoring modules can support hot-plug/online maintenance, but this does not mean every installation can be serviced live without restrictions. The actual rack configuration, battery condition, load, and site procedure must be checked first.

For safety-critical work, follow the installed system’s Emerson procedure rather than relying on a generic statement that the module is hot-swappable.

Is the same as HD22005-3?

No. The model suffix identifies different generations/configurations. Industrial spare-parts listings separately identify and HD22005-3/HD22005-3A. Do not treat the suffix as optional when ordering a replacement.

What condition should I specify when buying an ?

Specify the condition explicitly:

• Factory Sealed
• New Original / New Surplus
• Refurbished / Tested

For a production DC system, request photographs of the actual module, nameplate/serial information, startup test results, loaded output-voltage test, and warranty terms. One current market listing identifies a new with a one-year warranty, but seller-specific warranty terms should always be confirmed before purchase.
