Key Technical Specifications
- Manufacturer: Emerson
- Model: KJ1501X1-BB1
- Alternate Part Number: 12P0678X032
- Description: System Power Supply (DC/DC)
- Output Voltage: 24 Vdc nominal
- Output Voltage Adjustment Range: 23.5–28.5 Vdc
- Output Current: 5 A (1.5× nominal current supported for >4 seconds minimum, while holding output >20 Vdc)
- Output Power: 120 W nominal, 180 W for 4 seconds minimum (surge/inrush condition, while holding output >20 Vdc)
- Output Ripple: <50 mV peak-to-peak, 0 Hz to 20 MHz bandwidth
- Output Hold-Up Time: >20 ms to 95% output voltage at full load
- Dimensions: 4.3 × 12.5 × 18.5 cm
- Weight: 0.4 kg
- Application: DeltaV distributed control system backplane/rack power
⚠️ Verify input voltage/current against the physical nameplate or Emerson’s official DeltaV documentation before ordering. Distributor listings for this exact part disagree on input specifics — some describe it strictly as a DC-input module (consistent with its “DC/DC” designation), while at least one listing’s hold-up-time note references a 100–230 Vac condition that appears to be carried over from a related AC/DC sibling part (KJ1501X1-BA2). Don’t rely on secondhand resale copy for the input rating on a DeltaV power module — cross-check against your existing installed unit or an Emerson-issued reference.
Product Introduction
The Emerson KJ1501X1-BB1 is a DeltaV System Power Supply (DC/DC), also cataloged under alternate part number 12P0678X032, engineered to deliver regulated 24 Vdc backplane power (adjustable 23.5–28.5 Vdc) at up to 120 W continuous, 180 W for short surge conditions, to a DeltaV controller rack. It’s built into Emerson’s broader KJ1501X1 System Power Supply family, which spans multiple input-type variants (AC/DC and DC/DC) across suffixes like -BA2, -BB1, and -BC1.
This is a maintenance-replacement part for existing DeltaV installations in power generation, petrochemical, and water treatment facilities — Emerson has discontinued it, so buyers are sourcing genuine or reconditioned units to keep an already-installed rack running rather than specifying it into new system design. Because the KJ1501X1 family has several input/output variants that look similar at a glance, confirming the exact suffix and alternate part number against your existing unit’s nameplate matters more than usual here.

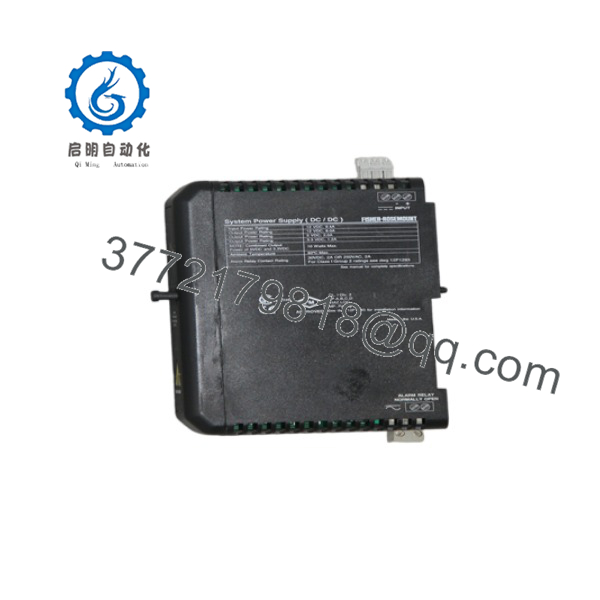

KJ1501X1-BB1
KJ1501X1-BB1
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No output, module appears dead | Loss of input power to the module | ❌ Low | Measure input terminals at the power backplane | Check upstream input source/breaker before replacing |
| Output present but out of the 23.5–28.5 Vdc range | Voltage adjustment drift or backplane loading issue | ❌ Low | Measure output at the backplane connector under actual system load | Verify against total connected load before condemning unit |
| DeltaV system reports power supply fault/alarm | Internal module fault, or redundant partner supply issue in a dual-PSU config | ✅ High | Check DeltaV diagnostics for the specific power supply alarm and slot reference | Cross-reference with system diagnostics before swapping |
| Excess ripple/noise affecting I/O communication | Aging internal components (common on older discontinued PSU stock) | ✅ High | Scope the output rail at the backplane connector, 20 MHz bandwidth | Aging units are a known factor — don’t assume it’s the I/O card first |
| Intermittent output dropout under load spikes | Module operating near or beyond 120 W sustained rating | ❌ Low | Check actual connected load against the 120 W / 180 W surge rating | Verify system load calculation before replacing the supply |
Since this module runs in a distributed control system, always cross-reference the actual DeltaV diagnostic alarm and slot number before pulling any power supply — a rack-level power issue can look identical to a single-module fault from the field. If you’re still stuck, contact technical support with the DeltaV diagnostic screenshot, the module’s exact nameplate part number, and the connected load calculation.
Frequently Asked Questions (FAQ)
Is the KJ1501X1-BB1 still in current production?
No — it’s listed as discontinued by Emerson across multiple distributor records. You’re sourcing this as a maintenance replacement for an existing DeltaV rack, not for a new system design.
Can I substitute a -BA2 or -BC1 for this part?
Don’t assume it. The BA2 variant is an AC/DC input supply (100–264 Vac input), while the BB1 and BC1 are DC/DC input variants with different output current and power ratings between them. These aren’t interchangeable without confirming your rack’s actual input source and power budget. Match the exact suffix, or verify compatibility against Emerson’s own documentation first.
Why is this cheaper than sourcing new from Emerson?
Because Emerson isn’t producing it new anymore — what’s available is surplus, reconditioned, or pulled stock. Ask your supplier directly whether it’s factory-sealed new surplus or a used/refurbished unit, and what functional testing (if any) was performed before resale.
Does this module retain configuration or redundancy settings when swapped?
There’s nothing user-configurable on the power supply itself — output voltage adjustment is a fixed hardware range, not a field-programmable parameter. If your rack uses a redundant dual-PSU configuration, confirm both units are the same part number and revision before installing.
Is it hot-swappable?
Many DeltaV system power supplies are designed for hot-swap replacement in redundant configurations — but confirm this specifically against your system’s configuration (single vs. redundant PSU) before pulling a live unit. Don’t assume hot-swap capability on a non-redundant single-PSU rack.
What warranty applies to a surplus or reconditioned unit?
This varies significantly by seller on discontinued DeltaV parts — some list 30-day refund windows, others 12-month warranties. Get the specific terms in writing for your purchase, since Emerson’s original factory warranty won’t apply to resold stock this far past discontinuation.
