Emerson KJ3001X1-CA1 DeltaV 32-Channel DI Card

Description

Key Technical Specifications

The available technical documentation identifies the module as a 32-channel, 24 VDC dry-contact input card and specifies the LocalBus, bussed-field-power, environmental, and terminal-key data above.

Product Introduction

The Emerson KJ3001X1-CA1 is a DeltaV M-Series 32-channel discrete input card designed for 24 VDC dry-contact field signals. It provides a high-density interface for binary states such as switch contacts, equipment status contacts, permissives, alarms, and limit-switch signals.

The module is associated with VE4001S2T2B4 and uses the DeltaV I/O terminal architecture with terminal key position B3. Its field circuits are rated at 24 VDC and 5 mA per channel.

KJ3001X1-CA1

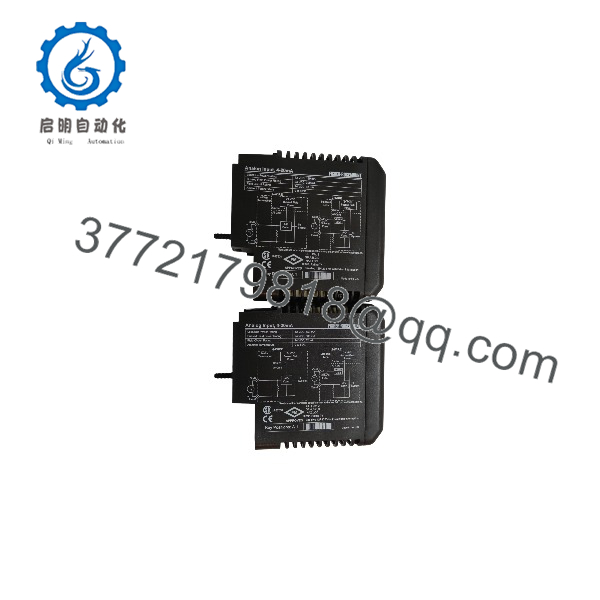

KJ3001X1-CA1

Installation & Configuration Guide

Stage 1 — Pre-Installation

1. Confirm the complete module designation KJ3001X1-CA1.
2. Record the assembly/part number printed on the actual module.
3. Check whether the installed module is identified as VE4001S2T2B4.
4. Verify that the application requires a 32-channel 24 VDC dry-contact DI card.
5. Confirm the terminal block key position and corresponding DeltaV terminal assembly.
6. Compare the existing wiring with the approved DeltaV I/O documentation.
7. Back up the DeltaV configuration and record channel assignments before replacement.
8. Place the control system in the approved maintenance state.
9. De-energize the applicable field circuits before removing the module.

Stage 2 — Removal

1. Confirm that the relevant field circuits are de-energized.
2. Follow the site’s electrical isolation and lockout/tagout procedure.
3. Identify and document all connected field channels.
4. Disconnect the module/terminal interface according to the DeltaV installation procedure.
5. Remove the KJ3001X1-CA1 from the carrier.
6. Inspect the connector, terminal block, and adjacent I/O modules for contamination or mechanical damage.
7. Store the removed module in an ESD-controlled location.

Hazardous-area warning: The available Emerson instruction sheet states that non-sparking field circuits must be de-energized before removing or inserting the product. It also directs users to the DeltaV Zone 2 installation documentation for hazardous-area applications.

Stage 3 — Installation

1. Verify the replacement model and hardware identification.
2. Confirm the terminal keying matches the installed I/O architecture.
3. Inspect the card for bent pins, damaged connectors, or contamination.
4. Install the KJ3001X1-CA1 into the correct DeltaV carrier position.
5. Reconnect the associated terminal interface.
6. Verify all field wiring against the approved channel schedule.
7. Confirm that dry-contact circuits do not exceed the documented 24 VDC / 5 mA-per-channel field-circuit rating.
8. Check shield, grounding, and cable segregation requirements where applicable.
9. Do not alter the terminal keying simply to force physical compatibility with another I/O card.

Stage 4 — Power-On and Testing

1. Restore system power according to the approved maintenance procedure.
2. Verify the module status and DeltaV diagnostics.
3. Confirm that all 32 configured channels are recognized as expected.
4. Operate representative field contacts and verify the corresponding input-state changes.
5. Check alarm, permissive, interlock, and equipment-status points associated with the card.
6. Verify that no unexpected channel faults or communication diagnostics are present.
7. Compare the final channel states against the pre-maintenance records.
8. Return the system to service only after the required functional checks are complete.

FAQ

What is the Emerson KJ3001X1-CA1?

The is a 32-channel DeltaV M-Series discrete input card for 24 VDC dry-contact signals. It is used to bring binary field states into the DeltaV control system.

How many inputs does provide?

It provides 32 discrete input channels. The field interface is specified for 24 VDC dry-contact applications.

What is the field-circuit rating?

The documented field-circuit rating is 24 VDC at 5 mA per channel. The bussed field-power rating is listed separately as 24 VDC at 150 mA.

What is the LocalBus power requirement?

The documented LocalBus power rating is 12 VDC at 75 mA.

What terminal key position does use?

The available technical documentation identifies B3 as the terminal key position. DeltaV’s keyed terminal architecture is intended to prevent incompatible I/O card and terminal-block combinations.

What is the operating temperature range?

The documented ambient operating range is 0 to 60°C, with 5–95% relative humidity, non-condensing. The associated installation documentation also specifies environmental shock and vibration limits.

Is a terminal block or an I/O card?

It is primarily identified as a 32-channel discrete input card. Some aftermarket listings incorrectly describe the itself as an “I/O terminal block,” so procurement should use the complete model and function rather than the generic description.

What part number is associated with ?

Public inventory records associate the model with several assembly numbers, including 12P1980X042, 12P1980X062, and 12P1980X032. This is an important procurement point: do not assume that every 12P1980X0xx suffix is automatically interchangeable. Match the installed module’s nameplate, revision, terminal arrangement, and DeltaV configuration.

Does the module require calibration?

No. The available Emerson instruction material states that the unit contains no user-serviceable parts and that calibration is not required.

Can be removed while the field circuit is energized?

For the documented non-sparking field-circuit installation, the instruction sheet states that the field circuits must be de-energized before removing or inserting the product. Follow the applicable DeltaV installation procedure for the actual cabinet and hazardous-area classification.

What should be checked before ordering a replacement?

Verify the following against the installed module:

• VE4001S2T2B4 designation where applicable
• Complete 12P1980X0xx assembly number
• Hardware revision
• 32-channel dry-contact DI function
• 24 VDC field interface
• Terminal key position B3
• Existing DeltaV terminal block and carrier
• Cabinet wiring and channel assignment

For a production-critical replacement, a clear photograph of the module nameplate and terminal side is preferable to relying on the KJ model number alone.
