3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Model Designation | SVU 1-40 / Alpha-40A |
| Input Voltage | 200–230 VAC, 3-phase |
| Input Frequency | 50/60 Hz |
| Input Current | 13.4 A at 200 V |
| Rated Output Current | 12.5 A (L-axis) |
| Maximum Output Voltage | 230 V |
| Power Rating | Approx. 3 kW |
| Axes | Single axis |
| Interface | PWM Type A/B |
| Cooling | Natural air cooling |
| Protection Class | IP20 (panel mount) |
| Weight | Approx. 5 kg (11 lbs) |
| Manual Reference | B-65192 |
4. Product Introduction
The FANUC A06B-6089-H104 is a single-axis Alpha series servo amplifier (SVU 1-40). It accepts 200–230 VAC three-phase input and delivers a rated 12.5 A output current to drive compatible Alpha servo motors. This Type B generation unit is commonly found on older machining centers and lathes running Fanuc 0, 16, 18, or 21 series controls.
It pairs with motors such as the α6/3000 and α12/2000 class. The amplifier provides the power stage and current control needed for precise axis motion. Because the model is discontinued, most available units are new surplus or carefully refurbished and load-tested. Confirm motor current rating and CNC interface type before installation.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No LED display on power-up | Missing control power or blown fuse | ✅ High | Measure 200–230 VAC at main input terminals; check internal fuses | Restore input power or replace fuses first |
| HV (Overvoltage) alarm | Regenerative energy or line spike | ✅ High | Check DC link voltage; inspect regenerative resistor | Verify resistor connection and capacity |
| LV or LVDC alarm | Low control or DC link voltage | ✅ High | Measure control voltage and DC bus with multimeter | Check incoming voltage and power supply section |
| HCL / Overcurrent alarm | Motor short, wiring fault, or overload | ✅ High | Megger motor windings; inspect power cables to motor | Isolate motor; test amp with known-good motor |
| No motor motion, amp shows ready | Enable signal or parameter issue | ❌ Medium | Verify CNC enable signal and servo on command | Check CNC diagnostics and wiring to amplifier |
| Intermittent IPM or DCOH alarm | Overheating or failed power module | ✅ High | Feel heat sink temperature after short run; inspect cooling path | Clean heat sink; replace unit if IPM fault repeats |
If alarms persist after these checks, capture the exact alarm code, take clear photos of the LED display and wiring, and contact technical support with the CNC model and motor part number.

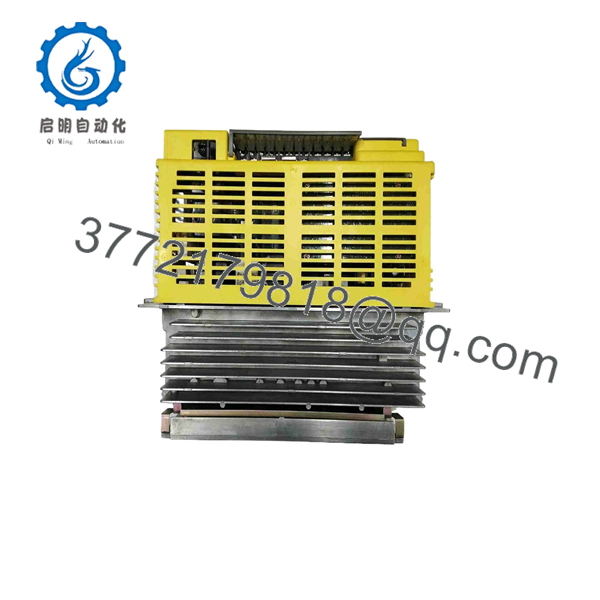

A06B-6089-H104

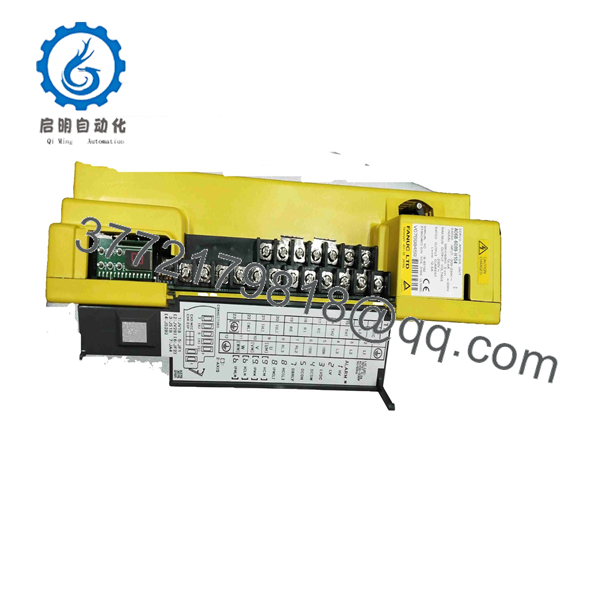

A06B-6089-H104
6. Frequently Asked Questions (FAQ)
Q: Is the A06B-6089-H104 still supported by FANUC?
A: No. This is a discontinued Alpha series amplifier. Genuine new production units are no longer available from FANUC. Current market supply consists of new surplus stock or professionally refurbished units that have been tested under load.
Q: What motors does this amplifier drive?
A: It is sized for smaller Alpha motors such as the α6/3000, α12/2000, and similar 40 A class units. Always match the motor’s continuous and peak current ratings to the amplifier’s 12.5 A continuous capability. Oversizing the motor will cause overcurrent trips.
Q: Can I replace a dual-axis unit with this single-axis amplifier?
A: No. The A06B-6089-H104 is strictly single-axis (SVU 1-40). Dual-axis machines require the corresponding multi-axis modules. Confirm the original part number on the machine before ordering.
Q: Does this unit need parameter setup after installation?
A: Yes. After mounting and wiring, the CNC must recognize the amplifier and motor. Load the correct servo parameters and perform a basic axis test at reduced speed. Mismatched parameters are a common cause of following errors or alarms on first power-up.
Q: What are the most common failure modes on these older Alpha amps?
A: Aging electrolytic capacitors, failed IPM modules, and degraded regenerative circuits rank highest. Units that sit unused for years often show leaky capacitors or weak DC link performance. Proper load testing catches these issues before the unit ships.
Q: Is the interface the same as later Alpha i series amplifiers?
A: No. This is an earlier Type B PWM interface. Later Alpha i and βi series use different connectors and communication methods. Do not assume pin-for-pin compatibility with newer drives.
Q: What should I check before swapping the amplifier?
A: Photograph the existing wiring, note DIP switch or jumper settings if present, and confirm the motor part number. Verify incoming voltage is within 200–230 VAC and that the regenerative resistor (if external) is intact. Power down completely and discharge residual energy before disconnecting cables.
