FANUC A660-2007-T364 Robot Teach Pendant Cable

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

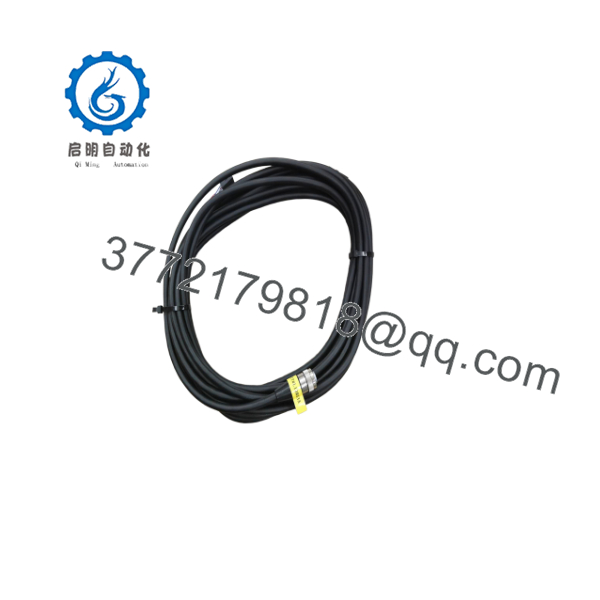

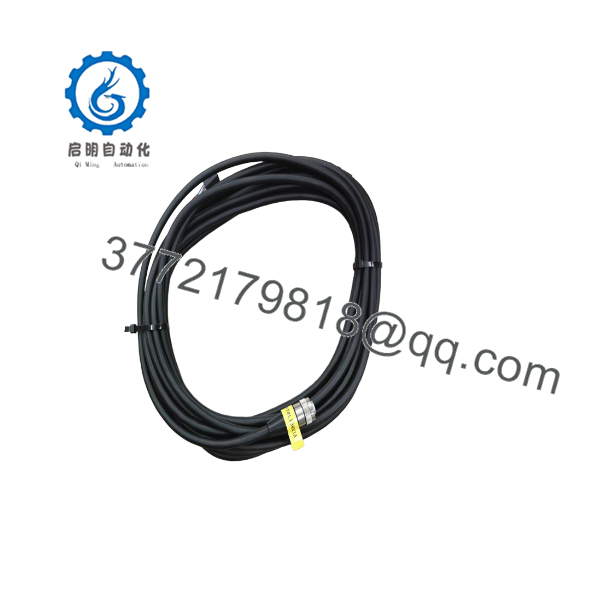

The FANUC A660-2007-T364 is a 10-meter heavy-duty teach pendant cable engineered to link the iPendant handheld unit to FANUC R-30iB and R-30iB Mate robot controllers. Designed for extreme flex life in harsh manufacturing environments, it carries high-speed communication signals, 24 VDC operating power, dual-channel E-Stop safety circuits, and deadman switch wiring.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.

Keeping an A660-2007-T364 cable as New Surplus provides vital Total Cost of Ownership (TCO) risk protection. Teach pendant cables suffer continuous mechanical stress, oil exposure, and foot traffic, making them high-frequency failure points. Refurbished or repaired cables often feature spliced internal conductors or degraded shielding that cause intermittent E-Stop alarms, halting the entire robotic automation cell. Saving 150 on a repaired cable can cost 50,000 in unplanned downtime when a broken safety trace trips an automated assembly line. We recently saw an automotive stamping plant try to save procurement budget by buying a patched, second-hand pendant cable. Two weeks later, an intermittent core break triggered false emergency stops, halting the line for 6 hours. Our pricing reflects the true cost of acquiring pristine New Surplus inventory, guaranteeing 100% signal continuity and operational peace of mind.

A660-2007-T364

A660-2007-T364

Installation & Configuration Guide

• Stage 1: Pre-Installation (Prep & Safety)

  Power down the FANUC robot controller completely at the main cabinet breaker and follow lock-out/tag-out safety procedures. Attach a grounded ESD wristband. Inspect the physical cable routing path from the internal controller board through the cabinet gland to the operator station.

• Stage 2: Removal

  Unscrew the cabinet-side internal cable connector from the main board/panel header. Loosen the cable strain relief gland on the controller wall. Disconnect the circular connector from the base of the teach pendant by rotating the metallic locking ring counterclockwise, then carefully pull the damaged cable free.

• Stage 3: Installation (Clone & Seat)

  Feed the cabinet end of the New Surplus A660-2007-T364 cable through the enclosure access port and tighten the strain relief gland to maintain cabinet IP sealing. Align the internal multi-pin connector and plug it firmly into the controller socket. Connect the metal circular end to the iPendant, turning the locking collar clockwise until it snaps fully into its detent position.

• Stage 4: Power-On & Testing

  Switch on the main controller power. Confirm the iPendant boots up completely without display flicker. Verify that the dual-channel Emergency Stop button, three-position enabling switch (deadman), and shift key combinations operate cleanly without triggering SRVO-001 or SRVO-002 safety gate alarms.

Firmware/Software Versions & Upgrade Notes

• Hardware Mapping: The A660-2007-T364 cable is purely a physical signal and safety conductor. It requires no firmware flashing or parameter modification during installation.
• Pinout Integrity: Verify that your existing controller utilizes the standard R-30iB pinout matching the drawing (10-meter standard length). Substituting non-standard pinout cables across different controller generations (such as R-J3iB vs. R-30iB) can short the 24V supply line to safety input channels.
• Handling Warning: Never pull, yank, or lift the teach pendant by cable assembly. Exceeding the minimum dynamic bend radius or subjecting the connectors to extreme tensile loads will fracture the delicate internal twisted pairs and trigger instant safety circuit fault codes.

Frequently Asked Questions (FAQ)

• Q: Is this FA cable original brand new surplus or a repaired assembly?

  A: This item is 100% Brand New Surplus. It is not used, not repaired, and not pulled from a scrapped robot cell. It features virgin polyurethane jacketing, untarnished copper pins, and factory-molded strain reliefs.

• Q: Why avoid buying a cheaper refurbished or repaired teach pendant cable?

  A: Pendant cables carry critical dual-channel Emergency Stop circuits. Refurbished or resoldered cables frequently harbor micro-fractures inside the fine copper strands. These micro-fractures cause nuisance safety trips under slight bending, stopping your production line unexpectedly and causing massive downtime losses.

• Q: Does this cable include both the cabinet connector and the pendant connector?

  A: Yes, is a complete factory cable assembly, featuring the pre-terminated internal cabinet connector on one end and the heavy-duty quick-disconnect circular connector on the pendant end.

• Q: Will this cable work with an older R-30iA controller?

  A: While some late-model R-30iA controllers share physical connectors with the R-30iB series, you must check the exact drawing suffix (e.g., vs. earlier T-series drawings) to confirm length and wiring schematics before swapping across controller generations.

• Q: What warranty comes with this New Surplus pendant cable?

  A: We back this New Surplus unit with a comprehensive 1-year replacement warranty, providing complete operational reliability for your maintenance operations.
