Fatek F1-130DR 30-Point PLC Main Unit Base Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The AutomationDirect F1-130DR is a self-contained fixed-I/O micro PLC engineered for small-scale industrial automation, machine control, and remote monitoring applications. Featuring 10 DC inputs and 8 heavy-duty 7 A relay outputs directly integrated into a compact chassis, it eliminates the need for separate rack components or external high-current relays in standard switching applications.

Because the DirectLOGIC 105 series is a legacy architecture, sourcing this exact module as New Surplus is a critical risk-mitigation move for plant maintenance teams. Sourcing authentic New Surplus ensures original dielectric isolation and fresh relay contacts, completely avoiding the secondary downtime costs caused by degraded, secondhand components. Securing a unused unit provides immediate drop-in restoration without spending tens of thousands of dollars on panel redesigns or rewiring to modern PLC architectures.

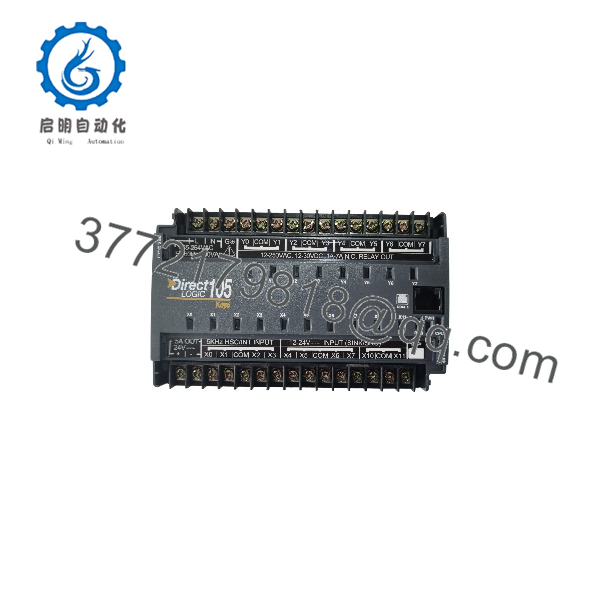

F1-130DR

F1-130DR

F1-130DR

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Enforce Safety Protocols: Perform Lock-Out/Tag-Out (LOTO) on the main 110/220 VAC distribution line supplying the PLC panel.
2. ESD Protection: Attach an ESD grounded wrist strap before unboxing the unit to avoid static discharge across the RJ12 serial port or terminal block.
3. Documentation: Take a high-resolution photograph of all field wiring connections, terminal label strips, and existing cable tags.

Stage 2: Removal

1. Disconnect Field Wiring: Loosen terminal strip screws and carefully remove line power, DC sensor lines, and relay load connections.
2. Unmount Unit: Unlatch the DIN-rail locking tab at the bottom of the unit using a flathead screwdriver, or remove the four panel-mounting corner screws.
3. Inspect Backplane and Terminals: Check the mounting surface for heat discoloration or debris.

Stage 3: Installation (Clone & Seat)

1. Mount New Module: Direct-mount the F1-130DR to the DIN rail or backplate, ensuring a solid mechanical earth-ground connection via the ground terminal.
2. Wire Termination: Re-wire input and output leads following your documented wiring scheme. Torque terminal screws to 4.4 in-lbs (0.5 Nm) to prevent loose connections.
3. Connect Serial Communications: Connect the RS-232 programming cable to the 6-pin RJ12 port.

Stage 4: Power-On & Testing

1. Rail Verification: Before energizing, test for shorts between the 24 VDC auxiliary power terminals (+24V and 0V).
2. Apply Power: Energize the 100–240 VAC supply. Verify the PWR LED illuminates solid green.
3. Logic Transfer & Verification: Upload or transfer the compiled ladder logic program using DirectSOFT software. Toggle test inputs to ensure corresponding LED indicators and physical relay outputs activate cleanly.

Firmware/Software Versions & Upgrade Notes

• Recommended Software Environment: DirectSOFT32 or DirectSOFT6 (Version 4.0 or higher is recommended for full Windows compatibility).
• Protocol Compatibility: Uses standard DirectNet or K-Sequence protocol over RS-232C at 9600 baud, 8 data bits, 1 stop bit, odd parity.
• Hardware Revisions: The F1-130DR uses internal firmware stored on non-volatile flash/EEPROM memory. Ensure that ladder memory address allocations match the CPU V-memory map of your specific model generation.
• Firmware Swap Warnings: Never interrupt main power during program clearing or ladder downloads. A power loss during an active write cycle can corrupt internal V-memory scratchpads, requiring a complete memory reset via the DirectSOFT system menu.

Frequently Asked Questions (FAQ)

Q: Why is this New Surplus F1-130DR priced higher than used listings online, but lower than original factory list?

A: Our pricing reflects verified, unused OEM inventory sourced from authorized factory surplus channels. While used or repaired modules are priced lower, they carry high risk from thermal stress and contact oxidation. Our New Surplus units guarantee 100% operating lifespan without the massive capital expense of a total system overhaul.

Q: Are these units truly factory new, or are they pulled from decommissioned cabinets?

A: Every unit we ship as New Surplus is 100% unused and original. They are never pulled from decommissioned panels, never repaired, and never re-conditioned. Packaging is opened solely by our quality control engineers for anti-counterfeit inspection and visual pin/contact checks.

Q: Is the DirectLOGIC F1-130DR obsolete, and can I still stock it for emergency backup?

A: Yes, the DL105 series is an mature, legacy PLC platform. Because active production has slowed down or ceased, keeping 1–2 units on-site as safety buffer stock is the recommended strategic insurance policy to eliminate risk of extended plant downtime.

Q: Can I hot-swap the F1-130DR while the control cabinet is powered on?

A: No. The F1-130DR is a fixed-I/O micro controller with integrated power, CPU, and I/O. Removing or connecting field wiring or main power terminals while live can cause arcing, trip upstream breakers, or damage internal logic circuits. Always de-energize the cabinet before servicing.

Q: Will my ladder logic program stay in memory during extended power outages?

A: Yes. The F1-130DR utilizes non-volatile EEPROM retentive memory to retain user logic and critical V-memory registers. However, if a unit has remained without power in storage for several years, we recommend performing a scratchpad memory initialization via DirectSOFT prior to loading fresh logic.

Q: What warranty coverage comes with this New Surplus PLC?

A: Every F1-130DR New Surplus unit includes our full 1-Year functional replacement warranty. If the module exhibits any technical defect under normal operating conditions, we replace it immediately from our dedicated stock.
