FOXBORO FBM201D 8 Channel 0 to 20mA Analog Input Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The FOXBORO FBM201D (RH926AH) is an 8-channel analog input module engineered for Foxboro I/A Series and EcoStruxure Distributed Control Systems (DCS). It converts 0–20 mA or 4–20 mA analog signals from field transmitters into digital format, transmitting high-precision data across dual-redundant 2 MB/s Fieldbus networks to control processors (CPs). The “D” designation highlights its dual-redundant fieldbus interface, guaranteeing continuous data transmission even if one communication rail fails.

As 200 Series DIN-rail hardware ages and faces discontinuation, securing factory-sealed New Surplus FBM201D modules is a vital strategy for plant asset management and Total Cost of Ownership (TCO) control. Buying New Surplus guarantees unused internal A/D conversion components and pristine backplane contacts—completely eliminating signal drift, communication drops, and costly emergency shutdowns caused by degraded, refurbished units.

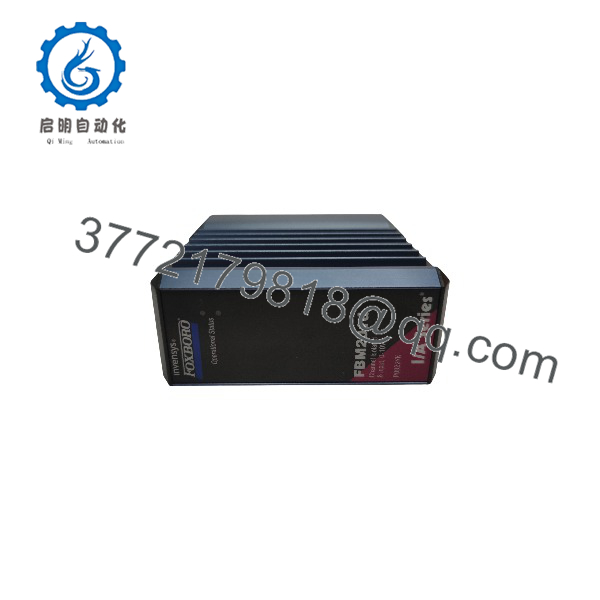

FBM201D

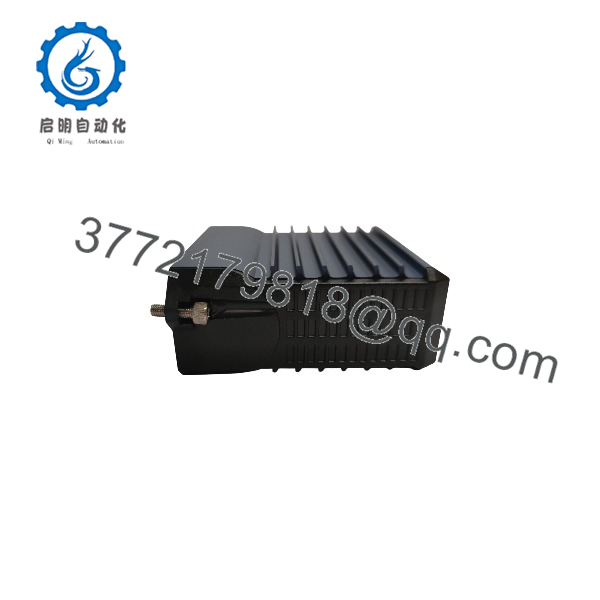

FBM201D

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Perform standard Lock-Out/Tag-Out (LOTO) procedures on field transmitter power loops and DCS cabinet power distribution units.
2. Put on a grounded ESD wrist strap before handling the card to protect micro-electronic components from electrostatic discharge.
3. Record the module slot location on the 200 Series baseplate and check the baseplate keying pin positions.

Stage 2: Removal

1. Unlatch the top and bottom red module-securing clips on the front face of the FBM201D module.
2. Pull the module straight forward off the DIN-rail baseplate connectors to prevent bending internal pin headers.
3. Inspect the exposed baseplate connector slot for dust, debris, or thermal discoloration.

Stage 3: Installation (Clone & Seat)

1. Verify that the physical letter-keying on the baseplate slot matches the FBM201D keying tabs to prevent accidental insertion of an incorrect card type.
2. Align the FBM201D housing with the guide rails on the baseplate slot and press firmly until the module locks into place.
3. Engage top and bottom retaining latches to ensure vibration-proof seating against the backplane.

Stage 4: Power-On & Testing

1. Re-energize the cabinet power supply rails supplying the 200 Series baseplate.
2. Monitor front-panel LEDs: confirm the operational status LED illuminates green and communication LEDs (A and B) blink active.
3. Verify 4–20 mA transmitter input values and signal quality parameters on the Foxboro Workstation display.

Firmware/Software Versions & Upgrade Notes

• Software Compatibility: The is supported across Foxboro I/A Series System Software (v8.x) and EcoStruxure Control Software environments.
• Redundancy Configuration: The “D” suffix signifies dual fieldbus module capability. Ensure your software compound/block configuration (AIN blocks) reflects dual-path communication parameters.
• Hardware Migration: When upgrading legacy 100 Series modules (like the FBM01 or FBM04) to the , Termination Assembly (TA) cables or conversion adapter cables are required to interface existing field wiring terminals to the 200 Series baseplate.

Frequently Asked Questions (FAQ)

Is this FOXBORO module brand new or pulled from active service?

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.

What is the key difference between the standard FBM201 and the ?

The features a dual-redundant Fieldbus communication interface (“D” = Dual), allowing the card to communicate simultaneously over two independent 2 MB/s Fieldbus channels (Bus A and Bus B) for high-availability process applications.

Why pay a premium for New Surplus over cheap refurbished cards online?

Refurbished analog cards often suffer from aged capacitors and thermal degradation from years of continuous operation, leading to measurement drift or total channel loss. A single false signal trip on a critical process loop can cost tens of thousands of dollars in downtime—far exceeding the small savings of a refurbished card.

Does the supply transmitter loop power directly?

The acts as an analog current receiver. Loop power for 2-wire transmitters must be supplied either via an external 24 V DC power supply or through a powered Termination Assembly (TA) designed for 2-wire instrumentation.

Is the hot-swappable while the baseplate is live?

Yes. Foxboro 200 Series modules support live insertion and removal (hot-swapping) on energized baseplates without interrupting communication on adjacent modules, provided ESD precautions are observed.

What warranty comes with this New Surplus module?

Every New Surplus FOXBORO unit comes with a full 1-year replacement warranty, accompanied by serial verification and complete pre-shipment quality inspection reports.
