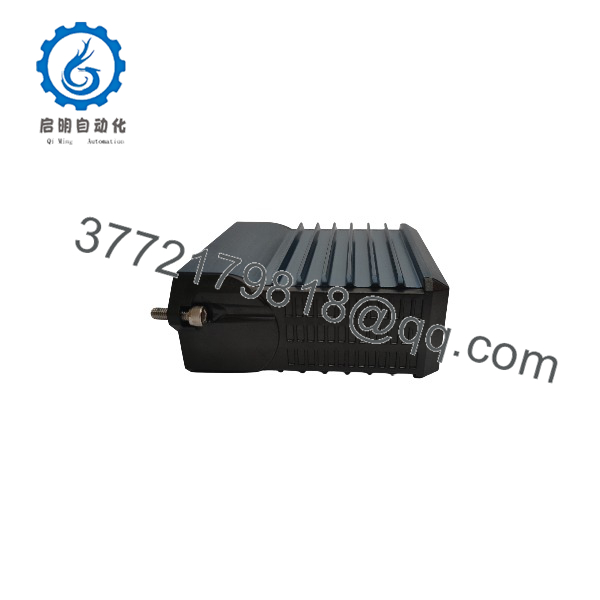

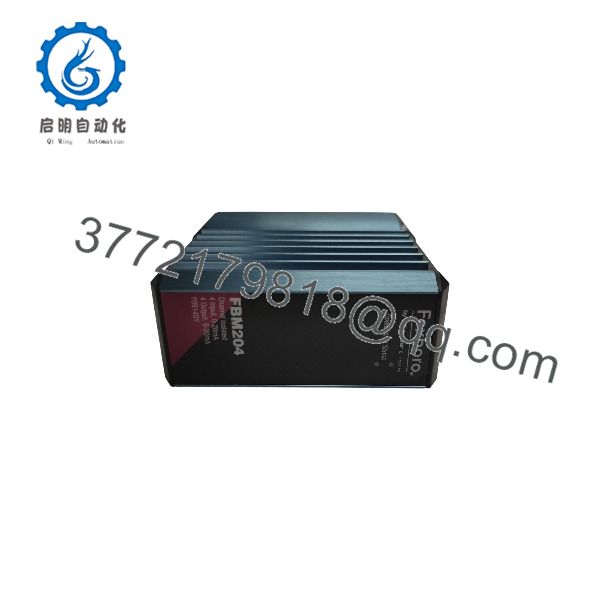

Foxboro FBM204 I/A Series 0-20 mA Analog I/O Module

  • Model: Foxboro FBM204
  • Brand: Foxboro (Invensys / Schneider Electric)
  • Series: I/A Series 200 Fieldbus Modules
  • Core Function: Analog signal conversion and isolation
  • Product Type: Analog Input / Analog Output Fieldbus Module
  • Key Specs: 4 × 0-20 mA analog inputs, 4 × 0-20 mA analog outputs, galvanic channel isolation, redundant Fieldbus communication
  • Condition: New Original / New Surplus
  • ⚠️ Obsolete Model – Limited Stock Available
Get a Quote
Categories: , , , , SKU: FBM204 Brand:

Description

Key Technical Specifications

Parameter Value
Product Model FBM204
Manufacturer Foxboro
System Platform Foxboro I/A Series DCS
Product Type 0-20 mA Analog I/O Interface Module
Input Channels 4 analog input channels
Output Channels 4 analog output channels
Input Signal Range 0 to 20 mA DC
Output Signal Range 0 to 20 mA DC
Input Application 4-20 mA transmitters, self-powered current sources
Output Load Capability Up to 750 Ω
Input / Output Isolation Galvanically isolated from other channels and ground
Communication Interface I/A Series Fieldbus via FCM
Fieldbus Configuration Optional redundant Fieldbus connection
Conversion Method Sigma-Delta analog conversion
Input Accuracy ±0.03 % of span
Output Accuracy ±0.05 % of span (0.1 to 20 mA range)
Output Resolution 13-bit
Output Settling Time 30 ms maximum
HART Compatibility Electrically compatible with standard HART signals
Power Supply 24 V DC redundant input (+5 %, −10 %)
Power Consumption 7 W maximum
Heat Dissipation 3.5 W maximum
Operating Temperature 0 to +60 °C
Storage Temperature −40 to +85 °C
Humidity 5 to 95 % RH, non-condensing
Mounting I/A Series FBM baseplate
Termination Dedicated FBM204 termination assemblies

The Foxboro FBM204 is a mixed analog input/output Fieldbus Module containing four 20 mA DC analog inputs and four 20 mA DC analog outputs. Each channel is electrically isolated, allowing connection of field transmitters and control devices within Foxboro I/A Series DCS installations.



Product Introduction

The Foxboro FBM204 is an I/A Series analog I/O Fieldbus Module designed for process control applications requiring both transmitter acquisition and analog control outputs. It converts field-level 0-20 mA signals into digital process data and generates analog output commands for devices such as control valves and actuators.

The module provides four isolated analog inputs and four isolated analog outputs, with configurable fail-safe behavior and compatibility with standard HART signals. It remains common in legacy Foxboro I/A Series installations where maintaining existing control strategies is preferred over full DCS migration.



Installation & Configuration Guide



Stage 1: Pre-Installation Preparation (Approx. 10 minutes)

⚠️ Safety First

  1. Notify the control room before removing the FBM204.
  2. Confirm affected control loops can be safely transferred to manual or standby operation.
  3. Apply lockout/tagout procedures if cabinet access requires power removal.
  4. Wait at least 5 minutes after power removal before handling the module.

Tools Required

  • ESD wrist strap
  • PH1 screwdriver
  • Digital multimeter
  • Wire labels
  • Smartphone for configuration photos

Data Backup

Before removal:

  1. Record the existing FBM204 model and hardware revision.
  2. Photograph the module location and termination wiring.
  3. Document AI and AO channel assignments.
  4. Record analog scaling values in the I/A Series configuration database.
  5. Save output fail-safe settings.



Stage 2: Removing the Old Module (Approx. 10 minutes)

Steps

  1. Open the I/A Series cabinet.
  2. Confirm the correct slot position.
  3. Label every field connection before removal.
  4. Disconnect termination wiring carefully.
  5. Release the module retaining mechanism.
  6. Pull the straight outward from the baseplate.
  7. Inspect the connector pins and mounting area.

⚠️ Note:
Keep the original module until the replacement completes communication checks and loop testing. Legacy DCS systems often rely on exact slot assignment and termination hardware.



Stage 3: Installing the New Module (Approx. 10 minutes)

Steps

  1. Wear an ESD strap before handling the replacement .
  2. Verify:
    • Model number matches .
    • Correct hardware revision.
    • Correct termination assembly.
  3. Configuration Clone (Critical):
    • Copy AI channel assignments.
    • Copy AO channel assignments.
    • Match scaling parameters.
    • Verify fail-safe output settings.
    • Confirm Fieldbus addressing.
  4. Insert the module into the I/A Series baseplate.
  5. Secure the locking mechanism.
  6. Reconnect field wiring.

Self-Checklist

  • Correct installed
  • Termination assembly verified
  • AI wiring confirmed
  • AO wiring confirmed
  • Configuration matches original



Stage 4: Power-On & Testing (Approx. 15 minutes)

Pre-Power Check

  1. Verify 24 V DC supply availability.
  2. Check analog loop polarity.
  3. Confirm no wiring shorts exist.

Power-On Steps

  1. Restore module power.
  2. Check FBM status LEDs.
  3. Verify Fieldbus communication.
  4. Confirm module status in the Foxboro workstation.
  5. Simulate analog input signals.
  6. Verify analog output current with a multimeter.
  7. Perform control loop checkout.

⚠️ Troubleshooting Note

  • If AI values are incorrect, verify transmitter scaling and wiring.
  • If AO output is unstable, check load resistance and output configuration.
  • If communication fails, inspect Fieldbus termination and module addressing.
FBM204

FBM204

FBM204

FBM204

Frequently Asked Questions (FAQ)

Q1: Can the Foxboro be hot-swapped?

Some Foxboro I/A Series installations support online replacement procedures, but this depends on the installed baseplate, termination assembly, and system configuration. Always follow the site-specific maintenance procedure before removing an active module.

The itself does not remove the need for proper loop control precautions because analog outputs may affect field devices.

Q2: Is the Foxboro obsolete?

The belongs to the Foxboro I/A Series 200 family. Many process plants continue operating I/A Series systems, so replacement modules are still required for maintenance and lifecycle support. Availability is mainly dependent on remaining inventory and surplus stock.

Q3: What signals can the handle?

The handles mixed analog current signals:

  • Four 0-20 mA DC analog inputs
  • Four 0-20 mA DC analog outputs

Input channels can connect to 4-20 mA transmitters or self-powered current sources. Output channels drive external loads such as valve positioners or controllers.

Q4: Are and FBM205 interchangeable?

No. They belong to the same analog I/O family but have different channel functions and termination requirements.

Before replacement, verify:

  • Exact module model.
  • Termination assembly part number.
  • Existing AI/AO channel allocation.
  • Control database configuration.

A similar-looking module can create incorrect process control behavior.

Q5: Will replacing an erase my control configuration?

No. The main control strategy and I/O database are stored within the Foxboro control system. However, the replacement module must match the configured hardware location and signal assignments.

Always export or document:

  • Channel configuration.
  • Scaling.
  • Fail-safe settings.
  • Output behavior.

Q6: Why is surplus pricing lower than OEM pricing?

Legacy DCS modules often enter the market through excess inventory, plant upgrades, system replacement projects, or maintenance stock liquidation.

A professional supplier should clearly identify the condition:

  • New Original / New Surplus: Unused inventory condition.
  • Factory Sealed: Original unopened packaging when available.
  • Refurbished (tested): Inspected and function-tested before shipment.

Price alone does not confirm module condition.

Q7: What inspection process should be completed before installing a surplus ?

A proper inspection process should include:



Inbound Inspection & Traceability

  • Verify source documentation.
  • Confirm model number and revision.
  • Check serial number markings.
  • Inspect housing condition.
  • Confirm no corrosion, scratches, repair marks, or contamination.
  • Audit accessories.



Live Functional Testing

Test environment:

  • Genuine Foxboro I/A Series test rack.

Testing steps:

  • Power-up LED verification.
  • Fieldbus communication check.
  • Analog input simulation.
  • Analog output current measurement.
  • Channel isolation verification.
  • Continuous operation monitoring.
  • Official test report generation.



Electrical Parameter Testing

  • Insulation resistance test using 500 V Megger where applicable.
  • Ground continuity check.
  • Analog channel electrical verification.



Firmware & Configuration Verification

  • Record hardware revision.
  • Document module identification.
  • Save test configuration.
  • Photograph labels and connectors.



Final QC & Packaging

  • QC inspector sign-off.
  • Anti-static ESD bagging.
  • Bubble wrap protection.
  • Heavy-duty corrugated boxing.
  • QC Passed label with inspection date.

Q8: What are the most common replacement mistakes?

❗ The most common mistake is confusing analog input/output wiring during replacement.

I have seen maintenance teams install the correct module but reconnect field wiring incorrectly because the original terminal documentation was missing.

Common problems:

  • Mixing AI and AO terminal connections.
  • Incorrect termination assembly selection.
  • Missing output fail-safe configuration.
  • Incorrect loop scaling.
  • Ignoring HART wiring requirements.

Take photos before removal. Record every channel assignment. That small preparation step prevents long commissioning delays on legacy I/A Series systems.
