FOXBORO FBM205 4 In 4 Out Redundant Analog Input Output Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The FOXBORO FBM205 (RH914BC) is a high-density combination 4-input / 4-output analog interface module designed for Foxboro I/A Series and EcoStruxure Distributed Control Systems (DCS). It processes four 0–20 mA or 4–20 mA transmitter inputs while concurrently driving four 0–20 mA control outputs to final control elements like control valves, VFDs, and actuators, all while maintaining continuous dual-redundant Fieldbus communications.

As legacy 200 Series DIN-rail components enter discontinuation stages, holding genuine New Surplus FBM205 modules on-site provides a high-ROI insurance policy against unexpected downtime. Sourcing unused, factory-sealed modules eliminates signal drift, channel decay, and backplane shorts typical of worn, refurbished cards—protecting closed-loop control integrity across critical plant assets.

FBM205

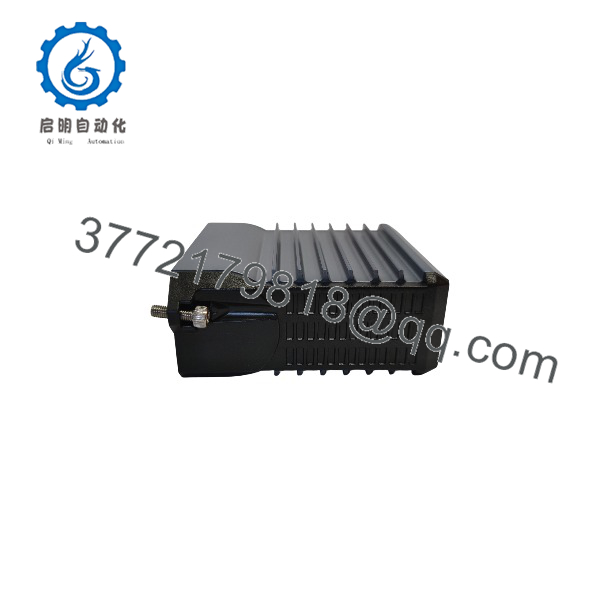

FBM205

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute full Lock-Out/Tag-Out (LOTO) protocols for field loop power supplies and DCS cabinet main power distribution.
2. Put on an ESD-grounded wrist strap before removing the module from its anti-static packaging to protect high-density A/D and D/A circuitry.
3. Record the target baseplate slot location and verify keying pin positions on the baseplate connector.

Stage 2: Removal

1. Unlatch the red module-securing retainers located at the top and bottom of the FBM205 faceplate.
2. Pull the module straight forward off the DIN-rail baseplate guides to prevent bending backplane pin headers.
3. Inspect the exposed baseplate receptacle for dust or mechanical damage prior to seating the replacement unit.

Stage 3: Installation (Clone & Seat)

1. Confirm physical keying alignment on the 200 Series baseplate slot matches the FBM205 physical keying tabs.
2. Slide the module straight into the slot guide tracks and press firmly until fully seated against the backplane connector.
3. Lock top and bottom retaining latches to secure the module against panel vibration.

Stage 4: Power-On & Testing

1. Restore 24 V DC power supplies to the baseplate.
2. Observe front-panel status indicators: verify the operational status LED glows steady green and active communication LEDs blink.
3. Verify input transmitter values and output command values on the Foxboro Workstation display to ensure complete loop handshake.

Firmware/Software Versions & Upgrade Notes

• Software Compatibility: The FBM205 integrates with Foxboro I/A Series System Software (v8.x) and EcoStruxure Control Software environments.
• Redundancy Configuration: Software compound and block configurations (AIN and AOT blocks) should be verified for dual-path Fieldbus routing (Bus A and Bus B).
• Migration Paths: If migrating from legacy 100 Series combination cards (such as the FBM09), specific 100-to-200 Series Termination Assembly (TA) cables or baseplate field-wiring adapters are required.

Frequently Asked Questions (FAQ)

Is this FOXBORO card brand new or refurbished?

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.

Why should our plant buy New Surplus instead of cheaper refurbished options?

Refurbished combination cards frequently suffer from capacitor aging and degraded D/A converters from continuous thermal stress. A failure on an analog output channel driving an active control valve can trigger a major process trip, easily costing $50,000+ in lost throughput—dwarfing the minor savings of a refurbished card.

What is the primary operational advantage of the combination ?

The handles both analog inputs and outputs within a single 200 Series module slot. This maximizes rack space efficiency for small-to-medium process skid loops requiring balanced input monitoring and output actuation.

Can the channels be configured independently for 4–20 mA operation?

Yes. The physical card processes full-scale 0 to 20 mA signals (0 to 65,535 counts). Defining the 4 to 20 mA operational range (e.g., 20% live zero elevation) is handled seamlessly in the Foxboro software block parameters.

Can the module be hot-swapped while the baseplate is live?

Yes. Foxboro 200 Series modules support live insertion and removal (hot-swapping) on energized baseplates without interrupting Fieldbus communication on adjacent modules, provided proper ESD procedures are followed.

What warranty comes with this New Surplus module?

Every New Surplus FOXBORO module comes with a full 1-year functional replacement warranty, supported by serial verification and complete pre-shipment quality inspection documentation.
