Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Foxboro, formerly Invensys Process Systems; now part of Schneider Electric |
| Module designation | FBM207 |
| Common assembly part number | P0914TD |
| Product family | Foxboro I/A Series / EcoStruxure Foxboro DCS |
| Product type | Voltage monitor / contact sense discrete input module |
| Discrete input channels | 16 independent channels |
| Standard FBM207 function | DC voltage monitoring |
| FBM207b function | 24 V DC contact sensing |
| FBM207c function | 48 V DC contact sensing |
| Standard input voltage support | Up to 60 V DC; 120 V AC/125 V DC and 240 V AC require the correct termination assembly |
| Contact sensing range | 15–60 V DC with the appropriate module/termination arrangement |
| Channel isolation | Each input galvanically isolated from every other channel and from ground |
| Isolation withstand | 600 V AC for 1 minute, input-to-ground and channel-to-channel |
| Communications | Redundant 2 Mbps module fieldbus to associated FCM or FCP |
| Pulse-count performance | No missing pulses from 0 to 250 Hz |
| Input filtering | Software-configurable; digital filtering is available on supported 200 Series firmware versions |
| Redundant supply input | 24 V DC, +5% / −10% |
| Maximum power consumption | FBM207: 3 W; FBM207b: 4 W; FBM207c: 5 W |
| Maximum heat dissipation | FBM207: 5.5 W; FBM207b: 4 W; FBM207c: 5 W |
| Mounting | Modular baseplate; DIN rail or 19-inch rack mounting arrangement |
| Environmental classification | ISA S71.04 Class G3 harsh industrial environment |
| Field wiring | System-specific Foxboro termination assembly; TA selection determines supported field voltage and signal conditioning |
The Foxboro FBM207/b/c product specification defines this family as a 16-channel voltage-monitor or contact-sense input module. The standard FBM207 monitors voltage signals; FBM207b and FBM207c provide 24 V DC and 48 V DC contact-sense functions respectively. Each channel is galvanically isolated, and higher-voltage field circuits require the correct Foxboro termination assembly with attenuation and optical isolation.
Product Introduction
The Foxboro , commonly marked P0914TD, is a 16-channel isolated discrete input module for I/A Series and EcoStruxure Foxboro DCS systems. It monitors field-voltage states from equipment such as motor starters, valve limit switches, breaker auxiliaries, alarm contacts, relay outputs, permissive circuits, and local/remote selectors.
The is not just a generic 24 V DC input card. The standard version is a voltage-monitor module, while FBM207b and FBM207c are contact-sense variants. The termination assembly determines whether the installation supports low-voltage DC, 120 V AC/125 V DC, or 240 V AC field signals. Match the exact module variant and termination assembly before ordering.
FBM207

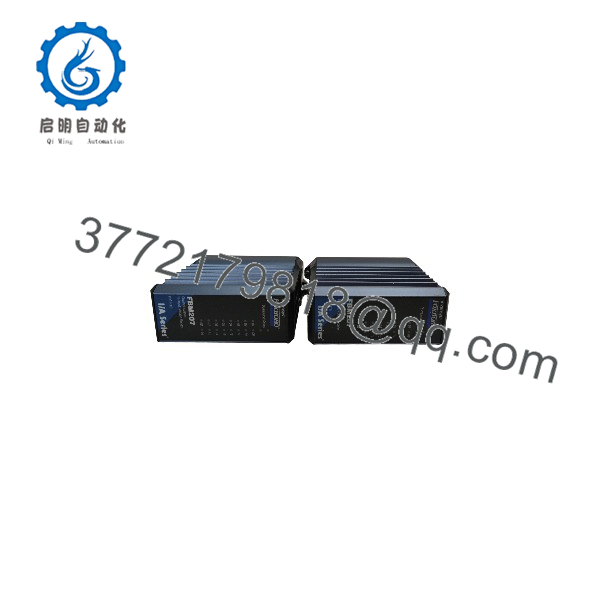

FBM207
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Module is absent or all 16 inputs show bad quality | Redundant 24 V DC supply loss, fieldbus fault, loose module, failed baseplate, failed | ✅ High | Check the DCS module diagnostic first. Measure the redundant 24 V DC supply at the baseplate and inspect module seating, connectors, and baseplate contacts under approved isolation. | Restore supply and mounting integrity before replacing the . All-channel failure often points to power or fieldbus hardware. |
| One input stays OFF with an active field signal | Open conductor, blown field fuse, incorrect terminal assembly, insufficient field voltage, failed relay contact, failed input channel | ⚠️ Medium | Measure the actual field voltage at the corresponding termination-assembly terminal. Confirm the voltage and signal type match the installed /TA combination. | Repair the field circuit or select the correct termination arrangement before replacing the module. |
| One input stays ON after the field device opens | Shorted cable, welded auxiliary contact, water ingress, crossed conductors, incorrect wiring, failed input channel | ⚠️ Medium | Disconnect the signal conductor at the termination assembly under approved procedure. If the DCS point remains ON, inspect the TA and module input. If it turns OFF, troubleshoot external wiring or the field device. | Isolate the external circuit before condemning the . |
| Several discrete inputs fail after a power event | Common field supply loss, failed fuse block, damaged termination assembly, field cable fault, surge damage | ⚠️ Medium | Check common field supply, fuse status, grounding, TA connectors, and affected cable routes. Inspect for heat marks or damaged suppression components. | Fix the shared field issue before replacing the input module. |
| Input flickers or chatters | Contact bounce, electrical noise, poor shielding, damaged cable, filter time too short, weak field voltage | ⚠️ Medium | Trend the DCS point at high resolution. Measure field voltage during switching. Check contact condition and review configured digital filter time. | Correct the contact or noise issue first; increase filtering only if the control narrative allows the added response delay. |
| Pulse count is inaccurate | Pulse frequency exceeds supported range, noisy pulse source, incorrect pulse configuration, field wiring issue | ⚠️ Medium | Measure pulse frequency using a calibrated meter or oscilloscope. Confirm the source remains within the documented 0–250 Hz no-missing-pulse range. | Use a suitable high-speed input solution if the source exceeds 250 Hz. Correct noise and configuration issues before replacing hardware. |
| Input status changes after module replacement | Incorrect FBM variant, wrong termination assembly, DCS configuration mismatch, terminals transferred incorrectly | ✅ High | Compare complete old and new labels: , P0914TD, revision, and associated TA. Verify DCS database type, signal range, and channel mapping. | Do not treat , FBM207b, and FBM207c as interchangeable. Complete a point-by-point functional checkout after replacement. |
| Input card fails shortly after installation | Wrong voltage applied, wrong TA, lightning/surge event, poor panel grounding, ESD damage | ✅ High | Verify field voltage against the installed TA rating. Inspect surge protection, cabinet ground bonding, and connector condition. Use ESD controls during handling. | Eliminate the electrical cause before installing another module. A replacement will fail again if a 240 V AC circuit is landed on an incorrect low-voltage termination assembly. |
Field note: The usual trap is treating an as a universal input card. It is not. I have seen a module replaced for an “input failure” when the actual problem was a 125 V DC field contact landed through the wrong termination assembly. The DCS card was fine; the field interface was wrong. Confirm the module, TA, and field voltage as one matched set.
If you need technical support, provide photos of the and P0914TD labels, termination assembly part number, baseplate, affected terminals, DCS diagnostics, measured field voltage, and the relevant I/O drawing.
Frequently Asked Questions
What does the Foxboro do?
The is a 16-channel discrete input module that monitors voltage or contact states from field equipment and sends that status to the Foxboro DCS. Typical signals include pump running feedback, motor starter auxiliaries, valve open/closed limits, breaker position contacts, alarm relay outputs, and process permissives.
Is P0914TD the same as ?
P0914TD is a commonly used assembly number for the module. Before ordering, match the entire identity label—including module type, part number, revision, and any suffix markings—because the family includes FBM207b and FBM207c contact-sense variants with different electrical functions.
What is the difference between , FBM207b, and FBM207c?
| Module | Primary Function | Contact-Sense Supply |
|---|---|---|
| Voltage monitoring | Not the standard contact-sense version | |
| FBM207b | Contact sensing | 24 V DC ±15% |
| FBM207c | Contact sensing | 48 V DC ±15% |
The standard monitors field voltage. FBM207b and FBM207c support dry-contact or solid-state switch sensing using their respective internal contact-sense supplies. Do not swap these variants without confirming field wiring, field devices, termination assembly, and DCS database configuration.
Can the accept 120 V AC, 125 V DC, or 240 V AC signals?
Yes, but only with the correct Foxboro termination assembly. The module family supports 120 V AC/125 V DC and 240 V AC discrete signals through termination assemblies that add the required voltage attenuation and optical isolation. Do not land those voltages directly without confirming the installed TA part number and wiring drawing.
Can I use the for high-speed pulses?
Only for relatively low-speed pulse signals. The documentation specifies no missing pulses from 0 to 250 Hz. That may suit slow totalizer, shaft-speed, or contact-pulse applications, but it is not suitable for a high-frequency turbine-meter or encoder pulse train. Measure the maximum real field frequency before selecting it.
Can I hot-swap an ?
Use the approved Foxboro DCS maintenance procedure and your site’s process-safety rules. Do not assume removal is harmless. Pulling this module can change the reported state of up to 16 permissives, alarms, and equipment feedback signals; that can trigger nuisance trips, block a startup, or mask a real field condition.
Before removal, identify affected logic, place equipment in a safe operating state, notify operations, handle alarm bypasses only under authorization, verify the intended replacement variant, and use a grounded ESD wrist strap.
Why is one discrete input stuck ON or OFF?
Start at the field terminal, not the DCS card. Measure the real voltage at the termination assembly, inspect the relay or limit switch, check fuse and common-return condition, then isolate the field conductor. If the DCS point follows field disconnection, the problem is outside the module. If the point remains wrong after verified field isolation and correct TA wiring, then the input channel or termination assembly becomes a credible suspect.
Is this New Surplus or Refurbished?
The seller must state this clearly. New Original / New Surplus means unused legacy inventory with original identity-label and storage-condition checks. Refurbished (tested) means used hardware that has been inspected and functionally tested.
For a refurbished , request actual-unit photos, label confirmation, 24 V DC power-on verification, DCS or bench communication check, a 16-channel voltage-input simulation, isolation-test record where available, terminal-interface inspection, and a written test report. Test videos and photos should be available upon request.
What should I verify before ordering an replacement?
- Exact module label: , , revision, and visible suffix
- Whether the installed device is standard , FBM207b, or FBM207c
- Associated termination assembly part number and wiring orientation
- Field signal type: DC voltage, dry contact, solid-state switch, 120 V AC, 125 V DC, or 240 V AC
- Actual field voltage at the affected terminal
- Pulse frequency, if using the point for counting
- DCS database type, configured input filtering, and diagnostic history
- Baseplate condition, redundant 24 V DC supply, and fieldbus health
- Required condition: New Original/New Surplus or Refurbished (tested)
Keep these checks in mind and you will avoid most replacement rework.
