Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | FBM214B (P0927AH) |
| Manufacturer | Foxboro (Schneider Electric) |
| Product Type | HART Communication Analog Input Module |
| Series | Foxboro Evo™ / I/A Series |
| Input Channels | 8 individually isolated channels |
| Input Signal | 4–20 mA analog with HART FSK overlay |
| Supported HART Versions | HART 5, 6, and 7 |
| ADC Resolution | 15-bit |
| Measurement Accuracy | ±0.03% of full scale |
| Input Update Rate | 100 ms |
| HART Communication Speed | 2 messages per second |
| Maximum HART Cable Distance | Up to 3,030 m (10,000 ft), depending on loop conditions |
| Internal Loop Supply | 18.5 VDC minimum at 20.5 mA |
| Operating Environment | Industrial Class G3 enclosure compatibility |
The FBM214B provides eight independently isolated analog input channels that accept conventional 4–20 mA transmitters as well as HART-enabled field devices. Each channel incorporates its own HART modem, allowing simultaneous analog measurement and digital device communication.
Product Introduction
The Foxboro FBM214B is a HART communication analog input module developed for the Foxboro Evo™ and I/A Series distributed control systems. It acquires conventional 4–20 mA process signals while simultaneously exchanging digital HART data with intelligent transmitters, enabling device diagnostics, configuration, and process monitoring through a single wiring pair.
Compared with standard analog input modules, the FBM214B integrates a dedicated HART modem for each channel and provides galvanic isolation between channels, reducing electrical interference and improving signal integrity. It is commonly installed in oil and gas, power generation, chemical processing, pharmaceutical manufacturing, and other continuous process industries where HART instrumentation is widely deployed.

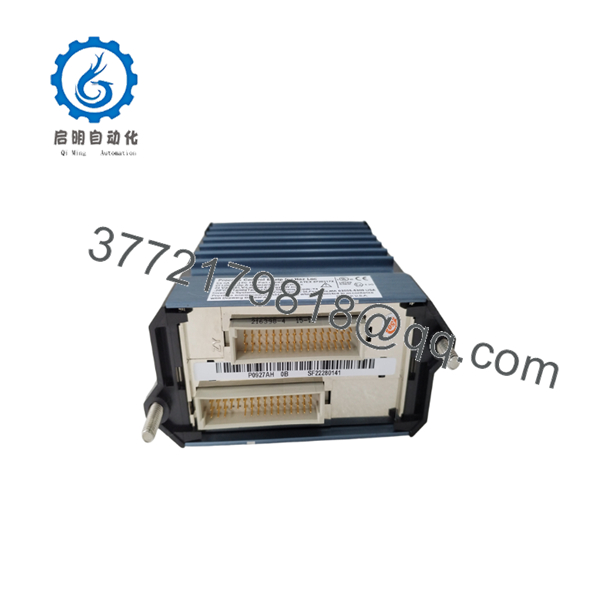

- FBM214B

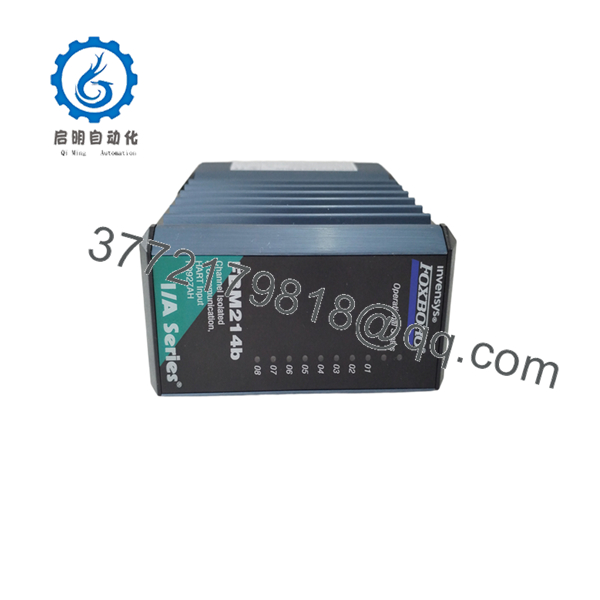

- FBM214B
Installation & Configuration Guide
Stage 1 – Pre-Installation Preparation (10 Minutes)
⚠️ Safety First
- Notify operations personnel of the planned maintenance.
- Apply Lock-Out/Tag-Out (LOTO).
- Remove cabinet power.
- Wait at least 5 minutes before touching the module.
Required Tools
- ESD wrist strap
- Phillips screwdriver
- Digital multimeter
- Wire markers
- Smartphone for recording wiring
Before Removal
- Back up the Foxboro database.
- Record channel assignments.
- Photograph all terminal wiring.
- Record transmitter tag numbers.
Stage 2 – Remove the Existing Module (5 Minutes)
- Disconnect the field terminal assembly.
- Label every cable.
- Release the retaining latch.
- Pull the module straight from the baseplate.
⚠️ Do not discard the old module until the replacement has completed commissioning.
Inspect:
- Connector pins
- Backplane contacts
- Moisture
- Dust
- Corrosion
Stage 3 – Install the New (10 Minutes)
- Wear an ESD wrist strap.
- Verify the replacement part number.
- Confirm hardware revision compatibility.
- Insert the module fully into the baseplate.
- Reconnect the field terminal assembly.
- Verify all channel wiring.
Checklist:
- ✔ Module seated correctly
- ✔ Wiring secure
- ✔ Ground verified
- ✔ Terminal assembly locked
Stage 4 – Power-Up & Functional Test (10 Minutes)
- Verify the 24 VDC supply.
- Restore cabinet power.
- Observe module LEDs.
- Connect with Foxboro engineering software.
- Confirm module recognition.
- Verify all HART devices communicate normally.
- Compare live analog values against field transmitters.
⚠️ Common Startup Problems
No HART communication
- Verify loop resistance.
- Check transmitter addressing.
- Confirm HART compatibility.
Incorrect analog reading
- Verify loop polarity.
- Confirm transmitter calibration.
- Check termination wiring.
Module fault indication
- Review diagnostic messages.
- Verify firmware compatibility.
- Inspect baseplate connections.
Frequently Asked Questions (FAQ)
Q1. Can the communicate with ordinary 4–20 mA transmitters?
Yes. The module supports both standard analog transmitters and HART-enabled smart transmitters on the same module without requiring separate hardware.
Q2. Does every channel support HART communication?
Yes. Each of the eight channels includes its own dedicated HART modem, allowing simultaneous analog measurement and digital communication independently on every channel.
Q3. Can this module be hot-swapped?
Whether online replacement is permitted depends on the Foxboro system architecture and plant maintenance procedures. Unless your system documentation explicitly supports online replacement, de-energize the I/O subsystem before replacing the module.
Q4. Which HART versions are supported?
The supports field devices compliant with HART Version 5, Version 6, and Version 7 specifications.
Q5. What is the difference between FBM211 and ?
The FBM211 is a conventional analog input module intended for standard process measurements. The adds native HART communication, allowing engineers to retrieve transmitter diagnostics, configuration parameters, and other digital device information while continuing to measure the analog 4–20 mA signal.
Q6. Is the still available?
The is considered a legacy product in many Foxboro installations. New surplus inventory and professionally tested units remain available through industrial automation spare-parts suppliers, but procurement lead times can vary depending on hardware revision and market availability.
