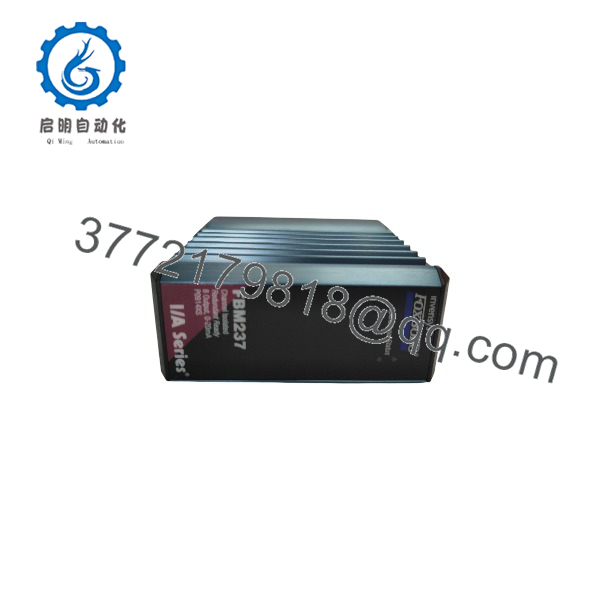

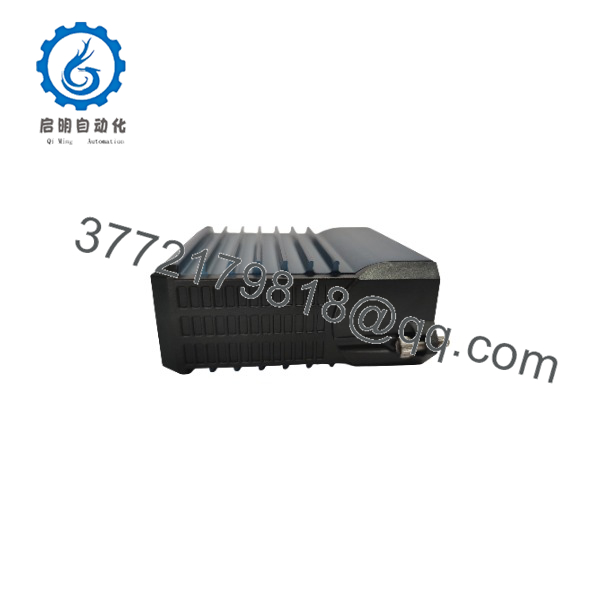

Foxboro FBM237 P0914XS 8-Channel 0-20mA Output Module

  • Model: FBM237 P0914XS
  • Brand: Foxboro (Invensys / Schneider Electric)
  • Series: I/A Series 200 Fieldbus Modules
  • Core Function: Isolated analog output control
  • Product Type: Analog Output Fieldbus Module
  • Key Specs: 8 × 0-20 mA DC outputs, 13-bit resolution, redundant Fieldbus-ready architecture
  • Condition: New Original / New Surplus
  • ⚠️ Obsolete Model – Limited Stock Available
Get a Quote
Categories: , , , , Brand:

Description

Key Technical Specifications

Parameter Value
Product Model FBM237
Ordering Code P0914XS
Manufacturer Foxboro (Invensys / Schneider Electric)
System Platform Foxboro I/A Series DCS / Foxboro Evo
Product Type Analog Output Interface Module
Output Channels 8 isolated analog output channels
Output Signal Range 0 to 20 mA DC
Maximum Output Range 0 to 20.4 mA DC
Output Accuracy ±0.05 % of span
Output Resolution 13-bit
Output Load Capacity 750 Ω maximum
Output Settling Time 30 ms maximum
Temperature Coefficient ±50 ppm/°C
Channel Isolation Galvanic isolation channel-to-channel and channel-to-ground
Isolation Rating 600 VAC for 1 minute test
Communication Interface I/A Series Fieldbus
Fieldbus Speed 2 Mbps redundant Fieldbus
Redundancy Support Single operation or redundant FBM pair
Fail-Safe Function Configurable Hold / Fallback output
HART Compatibility Electrically compatible with standard HART signals
Power Supply 24 V DC +5 %, −10 %
Power Consumption 7 W maximum
Heat Dissipation 5 W maximum
Operating Temperature −20 to +70 °C
Storage Temperature −40 to +70 °C
Humidity Range 5 to 95 % RH, non-condensing
Environmental Rating ISA S71.04 Class G3 harsh environment capable
Mounting Foxboro I/A Series modular baseplate
Dimensions 102 mm × 45 mm × 104 mm
Weight Approximately 185 g

The Foxboro FBM237 is an 8-channel isolated 0-20 mA analog output Fieldbus Module designed for I/A Series DCS applications. It supports single-module operation or redundant module pairing for applications where maintaining analog output availability is required.



Product Introduction

The Foxboro FBM237 P0914XS is an I/A Series analog output interface module used to generate 0-20 mA DC control signals for field devices such as control valves, actuators, and current-driven positioners. Each of the eight output channels provides electrical isolation from other channels and system ground.

The module supports redundant FBM configurations, allowing plants to maintain output availability during module maintenance or hardware replacement. It is commonly installed in legacy process control systems where existing I/O architecture must remain in service.

FBM237

FBM237

FBM237

FBM237

Installation & Configuration Guide



Stage 1: Pre-Installation Preparation (Approx. 10 minutes)

⚠️ Safety First

  1. Notify operations before removing the FBM237.
  2. Confirm affected control loops can be transferred to manual control.
  3. Verify safe conditions for connected valves, actuators, and final control elements.
  4. Apply lockout/tagout procedures if cabinet power isolation is required.
  5. Wait at least 5 minutes after power removal before handling the module.

Tools Required

  • ESD wrist strap
  • PH1 screwdriver
  • Digital multimeter
  • Wire labels
  • Smartphone for photos
  • Loop calibrator (recommended)

Data Backup

Before removal:

  1. Record:
    • FBM237 model number
    • P0914XS part number
    • Module slot position
    • Redundancy arrangement
  2. Photograph:
    • Terminal wiring
    • Module location
    • Cable routing
  3. Document:
    • Output channel assignments
    • Control valve tags
    • Output scaling
    • Fail-safe settings



Stage 2: Removing the Old Module (Approx. 10 minutes)

Steps

  1. Open the Foxboro I/A Series cabinet.
  2. Verify the correct FBM237 location.
  3. Label every analog output connection.
  4. Disconnect field wiring carefully.
  5. Release the module locking mechanism.
  6. Pull the straight outward from the baseplate.
  7. Inspect:
    • Backplane connector pins
    • Module contacts
    • Dust contamination
    • Mechanical damage

⚠️ Note:
Keep the original module until the replacement completes output verification. Incorrect analog output testing can move valves or actuators unexpectedly.



Stage 3: Installing the New Module (Approx. 15 minutes)

Steps

  1. Wear an ESD strap before handling the replacement .
  2. Verify:
    • Model:
    • Part Number: P0914XS
    • Correct termination assembly
    • Correct redundancy configuration
  3. Configuration Clone (Critical):
    • Match module slot position.
    • Copy output channel assignments.
    • Verify output scaling values.
    • Confirm fail-safe output behavior.
    • Check redundant pair configuration.
  4. Insert the module into the I/A Series baseplate.
  5. Secure locking tabs.
  6. Reconnect field wiring.

Self-Checklist

  • P0914XS verified
  • Termination assembly confirmed
  • Output wiring checked
  • Redundancy settings documented
  • Module fully seated



Stage 4: Power-On & Testing (Approx. 20 minutes)

Pre-Power Check

  1. Verify 24 V DC supply.
  2. Check output loop polarity.
  3. Confirm actuator or positioner wiring.

Power-On Steps

  1. Restore cabinet power.
  2. Observe status LEDs.
  3. Verify Fieldbus communication.
  4. Confirm module health in Foxboro workstation.
  5. Test each 0-20 mA output channel.
  6. Verify output current with a calibrated meter.
  7. Confirm field device response.

⚠️ Troubleshooting Note

  • If output current is incorrect, check scaling and load resistance.
  • If the module shows communication faults, inspect Fieldbus connections.
  • If one channel fails, check the individual termination wiring before replacing the module.



Frequently Asked Questions (FAQ)

Q1: Can the Foxboro P0914XS be hot-swapped?

The supports redundant module configurations where one module in a redundant pair can be replaced without disturbing the healthy module’s field output. However, actual replacement procedures depend on the installed I/A Series hardware and site maintenance rules.

Do not assume every installation allows live replacement. Verify the cabinet design first.

Q2: What devices connect to the ?

The is used with analog current-driven field devices, including:

  • Control valve positioners
  • I/P converters
  • Actuators
  • Current input controllers

The module converts DCS output commands into 0-20 mA control signals.

Q3: Is the obsolete?

The belongs to the Foxboro I/A Series hardware family. Many process plants continue operating I/A Series systems, so replacement demand remains for maintenance inventory and lifecycle support. Availability depends on remaining stock and tested units.

Q4: Are and FBM238 interchangeable?

No.

The is an analog output module. The FBM238 is a mixed discrete I/O module.

Before replacement, verify:

  • Module type
  • Signal type
  • Termination assembly
  • I/O database configuration

Installing the wrong FBM family member can create incorrect process signals.

Q5: Will replacing the erase my control logic?

No. The Foxboro DCS stores control strategies and I/O configuration separately from the physical module.

However, verify:

  • Output channel mapping
  • Scaling values
  • Fail-safe settings
  • Redundancy configuration

before returning the loop to automatic control.

Q6: Why is surplus pricing lower than OEM pricing?

Legacy automation modules often enter the market through:

  • Plant spare inventory
  • DCS modernization projects
  • Excess engineering stock
  • Equipment retirement programs

The condition should be clearly identified:

  • New Original / New Surplus: Unused inventory condition.
  • Factory Sealed: Original unopened packaging when available.
  • Refurbished (tested): Inspected and function-tested.

Q7: What inspection process should be completed before installing a surplus ?



Inbound Inspection & Traceability

  • Verify supplier documentation.
  • Confirm and markings.
  • Check serial numbers.
  • Inspect housing condition.
  • Confirm no corrosion, scratches, repair marks, or contamination.
  • Audit accessories.



Live Functional Testing

Test environment:

  • Genuine Foxboro I/A Series FBM test rack.

Testing steps:

  • Power-up LED verification.
  • Fieldbus communication test.
  • Eight-channel current output simulation.
  • Load testing with calibrated resistors.
  • Continuous operation monitoring.
  • Test report generation.



Electrical Parameter Testing

  • Insulation resistance test using 500 V Megger where applicable.
  • Ground continuity check.
  • Output current accuracy verification.



Firmware & Configuration Verification

  • Record hardware revision.
  • Document module identification.
  • Save test records.
  • Photograph labels and connectors.



Final QC & Packaging

  • QC inspector sign-off.
  • Anti-static ESD bagging.
  • Bubble wrap protection.
  • Heavy-duty corrugated boxing.
  • QC Passed label with inspection date.

Q8: What are the most common replacement mistakes?

❗ The most common mistake is testing analog outputs without isolating the connected field device.

I have seen technicians force a 20 mA output during commissioning while a valve was still connected, causing unexpected actuator movement.

Common issues:

  • Incorrect output scaling.
  • Wrong termination assembly.
  • Missing redundancy configuration.
  • Incorrect channel mapping.
  • Testing live outputs without process coordination.

Document the original settings before removal. For DCS analog output modules, careful preparation prevents most commissioning delays.
