Foxboro FBMSSW I/A Series DCS Control Module

Description

Key Technical Specifications

Product Introduction

The Foxboro FBMSSW is a specialized I/A Series fieldbus module designed for closed-loop servo control applications. It interfaces with LVDT-equipped hydraulic or pneumatic actuators, generating servo drive current while processing position feedback signals from the actuator sensor.

This module is typically installed in process plants requiring accurate valve positioning control, including turbine systems and critical process control loops. Before replacement, verify the exact I/A Series hardware revision and application configuration because FBMSSW is not a general-purpose analog or digital I/O module.

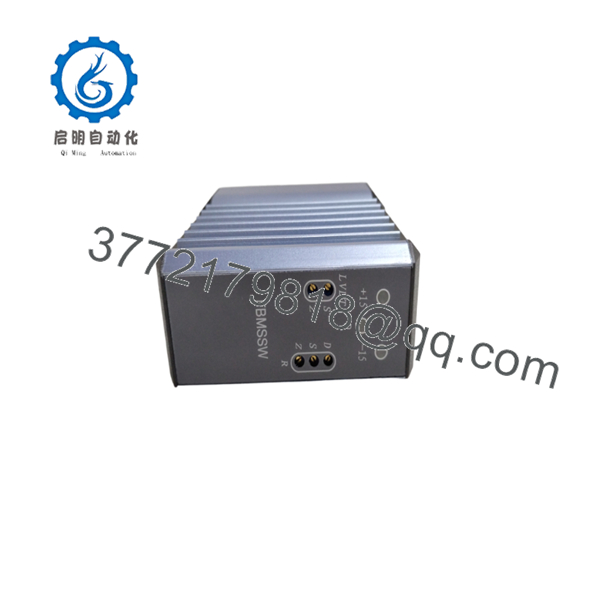

FBMSSW

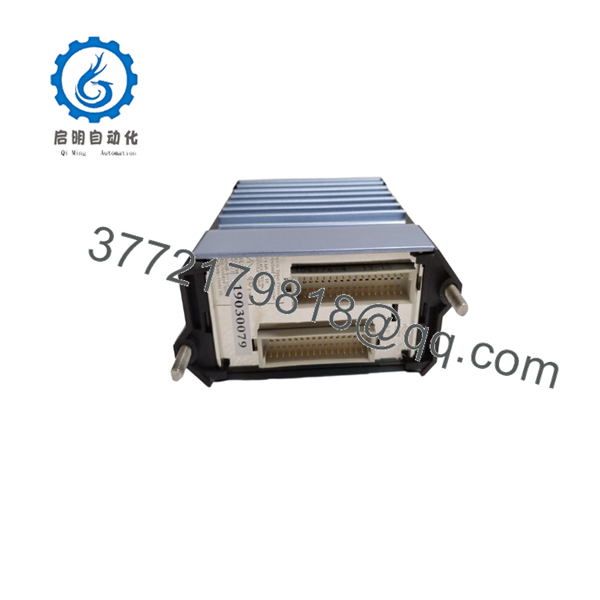

FBMSSW

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 15 minutes)

⚠️ Safety First

Before replacing an FBMSSW:

1. Notify operations about the planned intervention.
2. Place the controlled actuator or valve into a safe operating condition.
3. Apply lockout/tagout procedures where required.
4. Confirm cabinet power status before removing the module.

Tools Required

• ESD wrist strap
• Digital multimeter
• PH1 screwdriver
• Wire labels
• Smartphone/camera for documentation

Data Backup

Record:

• Current FBMSSW slot position.
• Field wiring connections.
• LVDT wiring polarity.
• Servo output wiring.
• Existing control block configuration.
• Module diagnostic status.

Stage 2: Removing the Existing Module (Estimated Time: 10 minutes)

1. Open the I/A Series cabinet access area.
2. Identify the FBMSSW module location.
3. Photograph the wiring and module indicators.
4. Disconnect field connections carefully.
5. Release module retaining clips.
6. Pull the module straight from the carrier.

⚠️ Do not remove the module by pulling on field wiring.
LVDT and servo wiring errors can create calibration problems during commissioning.

Stage 3: Installing the Replacement FBMSSW (Estimated Time: 15 minutes)

1. Confirm replacement identification:

   Foxboro FBMSSW

2. Check physical condition:
   • Connector pins
   • Housing damage
   • Corrosion marks
   • Label readability
3. Install the module into the correct FBM carrier position.
4. Verify seating.
5. Reconnect:
   • LVDT excitation wires
   • LVDT feedback wires
   • Servo output connections
   • Auxiliary power connections

Configuration Checklist

☐ Correct FBM slot
☐ LVDT wiring verified
☐ Servo polarity checked
☐ Auxiliary voltage confirmed
☐ Field connections secured

Stage 4: Power-On & Testing

1. Restore system power.
2. Check FBMSSW diagnostic indicators.
3. Verify module communication with the I/A Series controller.
4. Confirm LVDT feedback value.
5. Perform actuator stroke test.

Recommended checks:

• Minimum position command.
• Mid-range position command.
• Maximum position command.
• Feedback tracking accuracy.

⚠️ Troubleshooting Note

If the actuator moves incorrectly:

• Verify LVDT polarity.
• Check excitation wiring.
• Confirm servo output direction.
• Compare replacement module configuration with the original unit.

A module swap without recording the original configuration can lead to unexpected actuator movement.

Frequently Asked Questions (FAQ)

Q1: Is Foxboro FBMSSW a standard I/O module?

No. FBMSSW is a dedicated servo control module. It is designed for applications requiring LVDT feedback processing and servo actuator control, not standard analog or digital signal handling.

Q2: What applications use FBMSSW?

Typical applications include:

• Hydraulic control valves
• Pneumatic actuators
• Turbine control systems
• Precision process positioning loops

The module is selected when closed-loop position feedback is required.

Q3: Is FBMSSW obsolete?

FBMSSW belongs to the legacy Foxboro I/A Series product family. Many installed systems continue operating these modules, so replacement units are commonly sourced from industrial surplus inventories. Verify availability and condition before purchase.

Q4: Can I replace FBMSSW with another FBM module?

No direct substitution should be assumed. FBMSSW has dedicated servo and LVDT functions. Replacing it with a standard FBM analog module will not provide equivalent control functionality.

Q5: Will replacing FBMSSW erase the control configuration?

The control strategy is normally stored in the Foxboro system database rather than only inside the field module. However, document the existing configuration before replacement and verify module recognition after installation.

Q6: What should I verify before ordering FBMSSW?

Confirm:

• Existing part number: FBMSSW
• Foxboro I/A Series compatibility
• Servo application type
• LVDT sensor compatibility
• Existing wiring arrangement
• Module condition and warranty

Q7: Why is FBMSSW available from automation spare suppliers?

Because many Foxboro I/A Series installations remain in service after OEM production changes. Suppliers typically provide:

• New surplus inventory
• Tested used modules
• Refurbished units

Request inspection records, serial number photos, and warranty terms before purchasing.
