FOXBORO FBMSVH Special Vibration / High-Speed Interface Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Foxboro FBMSVH (P0926SV) is a specialized Fieldbus Module designed to bridge high-speed vibration monitoring systems and machinery protection racks (such as Bently Nevada monitoring suites) into the Foxboro I/A Series and EcoStruxure DCS environment. It translates complex dynamic variables—such as axial position, overall vibration amplitude, and shaft displacement—into process quantities used by Control Processors for critical interlocks and operator alarms.

Because the FBMSVH monitors critical rotating machinery (turbines, large compressors, and boiler feed pumps), maintaining a New Surplus module on site acts as essential insurance against unplanned trips. Buying New Surplus guarantees factory-grade dielectric isolation and pristine backplane communication circuits. Refurbished specialty cards often suffer from invisible signal line degradation or aged internal power regulators that can corrupt vibration telemetry or trigger false emergency shutdowns.

FBMSVH

FBMSVH

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify machine protection trip bypasses are active on the DCS HMI before servicing the module.
2. Put on a grounded ESD wrist strap connected to the cabinet frame grounding point.
3. Confirm field supply voltages at the External Termination Assembly (ETA) match the system drawing specifications.
4. Document existing baud rates, node address DIP switch settings, and keying configurations on the baseplate slot.

Stage 2: Removal

1. Unfasten the top and bottom captive screws securing the FBMSVH module to the baseplate.
2. Unlatch the module retaining levers by pivoting them outward.
3. Draw the module straight out along the guide rails to protect the gold-plated backplane pin assembly.

Stage 3: Installation (Clone & Seat)

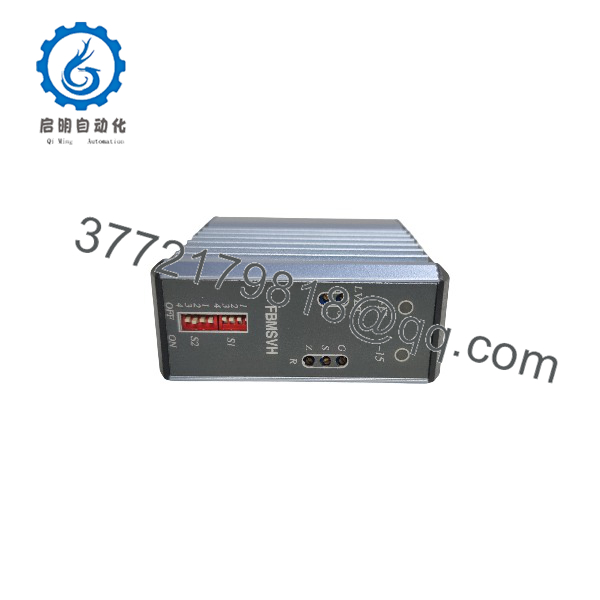

1. Set the DIP switches on the new FBMSVH to match the node ID and channel profile of the removed unit.
2. Align the module card edges with the baseplate guide slots.
3. Slide the card into position until the rear connector fully mates with the backplane.
4. Tighten the top and bottom captive screws to 0.5 Nm (4.4 in-lb) to complete earth grounding.

Stage 4: Power-On & Testing

1. Re-apply system power to the 24 V DC baseplate power rails.
2. Check the front-panel status LEDs:
   • Solid Green: Module passed power-on self-test and joined the 2 Mbps Fieldbus.
   • Red / Flashing: Communication fault, incorrect switch settings, or hardware failure.
3. Clear temporary software overrides and monitor live vibration points in the Foxboro System Definition Utility (SDU) to verify signal handshakes.

Firmware/Software Versions & Upgrade Notes

• Recommended Firmware Version: Version 2.10 or higher for standard I/A Series software releases v8.x through EcoStruxure DCS v9.x.
• Backward Compatibility: Compatible with standard 200 Series baseplates (P0926AE/AF) and FCP270/FCP280 Control Processors.
• Firmware Upgrade Risks: Do not flash firmware while the module is actively reporting vibration data to safety logic. A firmware mis match or failed download will cause the Control Processor to assign a BAD status to connected ECB blocks, potentially causing downstream trip logic to execute or fail to respond.

Frequently Asked Questions (FAQ)

What primary purpose does the Foxboro FBMSVH serve in a DCS rack?

The FBMSVH (P0926SV) serves as a specialized interface module that brings high-speed machinery monitoring data (such as bearing vibration and shaft position) directly into the Foxboro Control Processor block execution cycle without overloading standard analog input channels.

How do I know this FBMSVH module is genuine New Surplus and not refurbished?

Every FBMSVH module we supply originates from surplus project inventory and OEM spare holds. They arrive in factory anti-static bags with untouched backplane contacts, pristine housings, and verifiable OEM serial tags—completely free from wear or solder rework.

Is the FBMSVH module hot-swappable during plant operations?

While 200 Series baseplates support module hot-swapping, you must bypass any associated machinery trip logic in the DCS prior to removal. Pulling an active FBMSVH will interrupt the data feed to the CP, which may trigger automated failsafe mechanisms if trip interlocks are armed.

Does the FBMSVH module require manual programming during replacement?

No manual programming is stored on the card itself. The module receives its operational parameters, channel mapping, and scan rates from the Control Processor (ECB / driver block configuration) upon power-up and bus discovery.

What warranty coverage comes with this New Surplus FBMSVH module?

We provide a 1-year functional replacement warranty on all New Surplus Foxboro components. If the FBMSVH exhibits hardware diagnostics errors or bus communication failures within 12 months, we replace the unit directly from our stock.
