Key Technical Specifications
| Parameter | Specification |
| Control Loop Type | Closed-loop proportional / proportional-integral servo positioning |
| Feedback Sensor Input | LVDT (Linear Variable Differential Transformer) or 0–10 V DC |
| Command Input Signal | 4–20 mA DC or 0–10 V DC from Field Control Processor |
| Servo Output Signal | Current drive (up to ±100 mA) or Voltage drive (±10 V DC) |
| Power Supply Requirements | +15 V DC and −15 V DC auxiliary rail / 24 V DC baseplate bus |
| Isolation | 1,000 V AC galvanic isolation between field logic and bus |
| Calibration Controls | Front panel potentiometers / DIP switches for Gain, Zero, Span |
| Operating Temperature | −20 to +60°C (−4 to +140°F) |
| Relative Humidity | 5 to 95% non-condensing |
| Form Factor | Standard Foxboro I/A Series fieldbus enclosure module |
Product Introduction & Supply Chain Strategy
The Foxboro FBMSVH is a specialized servo valve driver module designed for Foxboro I/A Series distributed control systems. It manages closed-loop positioning of electro-hydraulic and pneumatic actuators on steam turbine governor valves, fuel throttle valves, and hydraulic positioning rigs using real-time LVDT feedback.
Stocking this unit as New Surplus secures critical hardware for high-value turbine and combustion loops where factory lead times exceed 16 weeks. Maintaining an on-site spare mitigates severe financial exposure from unexpected governor valve trips, while bypassing the internal component fatigue and drift issues common in second-hand alternatives.
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- De-energize hydraulic power units (HPU) and implement Lock-Out/Tag-Out (LOTO) on valve actuator supplies.
- Put on a grounded wrist strap before removing the module from its anti-static bag.

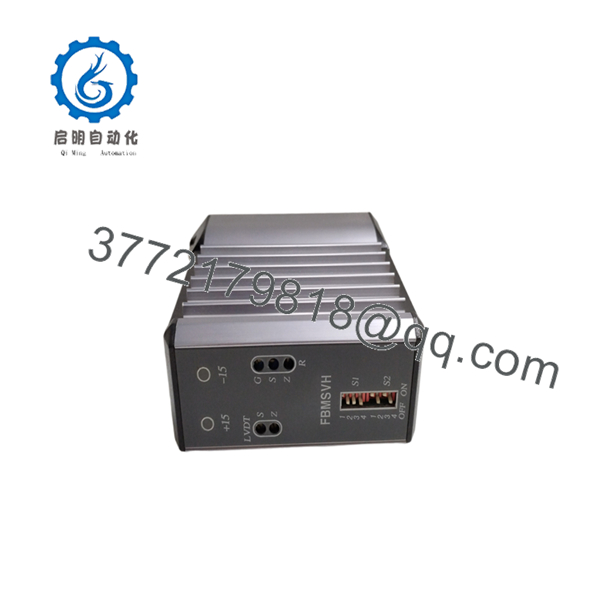

- Photograph the front panel DIP switch positions (S1 and S2) and calibration settings on the existing module.
- Verify auxiliary ±15 V DC power supplies before inserting the replacement card.
Stage 2: Removal
- Unfasten the top and bottom retaining screws on the module front panel.
- Disengage the module lock levers to disconnect from the baseplate interface.
- Slide the card out along the enclosure rail guides. Do not angle the unit to prevent bending backplane pins.
Stage 3: Installation (Clone & Seat)
- Set the DIP switches on the new FBMSVH to mirror the exact jumper configuration of the removed card.
- Align the module with the baseplate guide slots and push firmly until the backplane connector locks into place.
- Torque the top and bottom mounting screws to 0.5 Nm (4.4 in-lb) to complete the grounding circuit.
Stage 4: Power-On & Testing
- Apply 24 V DC system power and verify the front status LEDs illuminate green.
- Supply baseline command signal (4 mA / 0 V) and check LVDT feedback zero position.
- Adjust Zero and Span trim potentiometers if minor feedback calibration offset exists.
- Execute full-stroke test cycles (0%, 25%, 50%, 75%, 100%) and verify valve position tracking via the DCS console.

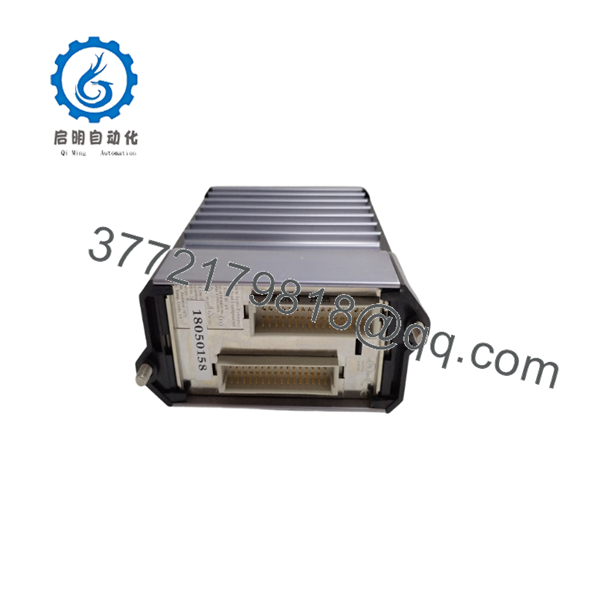

- FBMSVH
- FBMSVH
Firmware/Software Versions & Upgrade Notes
- System Compatibility: Compatible with Foxboro I/A Series software v7.x through EcoStruxure Foxboro DCS v9.x software platforms.
- Hardware Revisions: Hardware revisions must match the LVDT excitation frequency requirements of your specific field position transmitter (e.g., 1 kHz vs 3 kHz excitation options).
- Calibration Warning: The FBMSVH contains onboard analog tuning components (Gain/Integral). Replacing hardware requires re-verifying valve zero and full-scale span in manual mode before returning the loop to automatic governor control. Attempting an uncalibrated hot-swap can cause valve hunting or sudden over-speed safety trips.
Frequently Asked Questions (FAQ)
Why is this New Surplus FBMSVH priced lower than OEM list?
Our pricing reflects globally sourced New Surplus inventory. OEM list prices factor in long factory build cycles and corporate overhead. Our inventory provides immediate delivery for legacy parts while maintaining 100% original manufacturing quality, providing optimal Total Cost of Ownership (TCO).
Is this Foxboro FBMSVH module unused and original?
Yes. This is a Brand New Surplus unit in original condition. It has never been deployed in an operating plant, nor has it undergone secondary soldering or component reconditioning. Packaging is opened exclusively for our quality inspection protocol.
Why should I avoid buying a refurbished FBMSVH module for turbine control?
Turbine governor valve loops demand precise, drift-free control. Refurbished servo cards frequently suffer from aged capacitors, degraded voltage reference diodes, and potentiometer wear that cause position drift over thermal cycles. Buying New Surplus guarantees factory-grade component tolerances and a 10 to 15-year service life.
Does the FBMSVH require manual calibration upon replacement?
Yes. While digital control parameters download from the Field Control Processor, mechanical valve tolerances and LVDT offsets require physical verification. You must check and adjust the module Zero and Span potentiometers on initial setup to ensure accurate valve positioning.
Can I hot-swap the FBMSVH card while the turbine is running?
Hot-swapping the hardware on a powered baseplate is supported electronically, but doing so on a running turbine will drop current to the servo valve, forcing the valve to its fail-safe position (typically fully closed or open). The loop must be transferred to a mechanical bypass or shut down prior to card replacement.
What quality checks are conducted on this unit before dispatch?
Every FBMSVH passes a 5-point quality check: serial number authentication, physical backplane inspection, power-up diagnostic check, signal conditioning verification, and ESD-safe protective packaging sign-off.
What warranty protection comes with this module?
This New Surplus FBMSVH includes our comprehensive 1-year functional warranty, providing twice the standard guarantee offered by typical secondary market distributors.
