Foxboro P0904HA Industrial Power Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

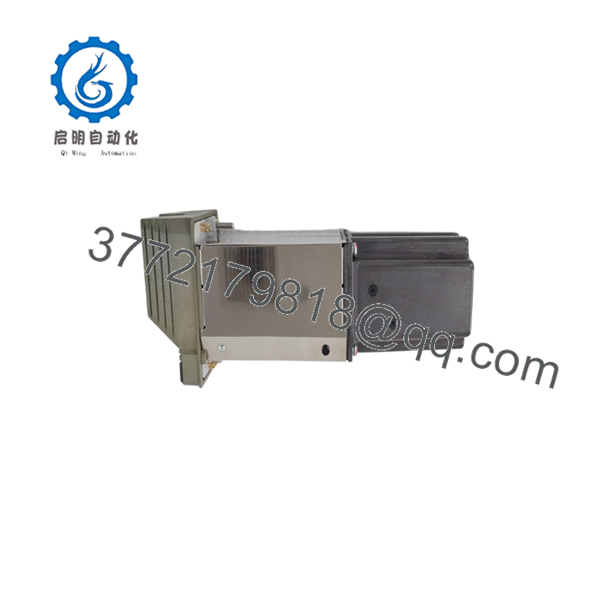

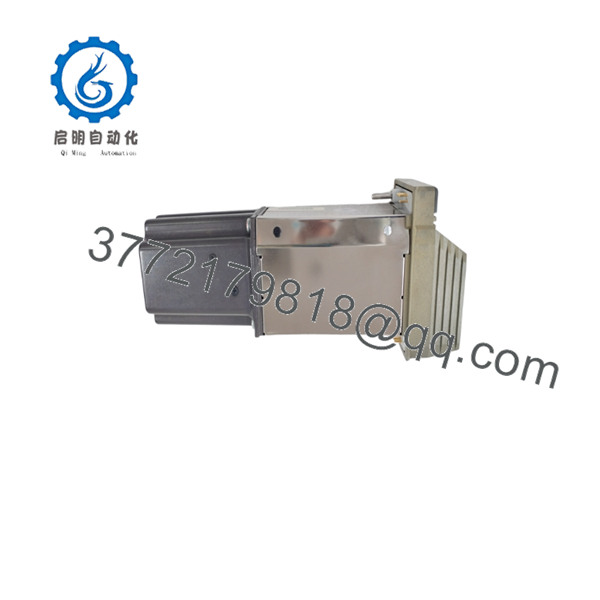

The Foxboro P0904HA (IPM2-P0904HA) is an Industrial Power Module designed to supply 39 V DC power to legacy Foxboro I/A Series system enclosures and processing cards. It accepts selectable AC line inputs across 100 V AC to 240 V AC range to ensure steady DC power distribution across industrial control environments.

Securing the P0904HA as New Surplus eliminates vulnerability to extended factory lead times exceeding 16 weeks on legacy power hardware. Maintaining an unused spare on-site lowers Total Cost of Ownership (TCO) by providing complete operational lifespan while eliminating power instability risks linked to degraded, second-hand components.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. De-energize the incoming AC power feeder to the target rack enclosure and apply Lock-Out/Tag-Out (LOTO) safety measures.
2. Put on an anti-static wrist strap connected to cabinet ground before handling the module.
3. Check the voltage selection switch/jumper setting on the replacement P0904HA module to confirm it matches line voltage (100, 120, 220, or 240 V AC).
4. Inspect the backplane multi-pin output connector on the replacement unit for cleanliness or mechanical damage.

Stage 2: Removal

1. Unfasten the top and bottom retaining screws on the front panel of the existing power card.
2. Pull the module extraction handles outward to disengage internal power contacts from the backplane.
3. Slide the power supply straight out along the enclosure guide rails to prevent twisting connector pins.

Stage 3: Installation (Clone & Seat)

1. Verify that the guide rails inside the rack enclosure are clear of debris.
2. Align the replacement module with the guide rails and slide it smoothly into the slot.
3. Apply firm, steady pressure until the rear power contacts lock into the backplane bus.
4. Tighten top and bottom mounting screws to 0.5 Nm (4.4 in-lb) to maintain chassis ground continuity.

Stage 4: Power-On & Testing

1. Re-energize the incoming AC supply breaker.
2. Monitor the front panel status LEDs: confirm the Green LED illuminates, indicating valid 39 V DC output.
3. Measure the output voltage at the backplane test points using a calibrated multimeter to verify a 39.0 V DC (±0.5 V) reading.
4. Verify that the system rack diagnostic alarm contact clears on the local operator console.

Firmware/Software Versions & Upgrade Notes

• Hardware Compatibility: Operates as a hardware-level power conversion unit; compatible with all Foxboro I/A Series mounting enclosures designed for IPM2 power modules.
• Voltage Selection Notice: You must verify the AC input selector positioning prior to powering on. Setting a unit configured for 120 V AC onto a 240 V AC supply line will cause immediate overvoltage damage to internal input rectification circuitry.
• Redundancy & Load Balancing: When replacing a in a parallel redundant power configuration, measure output voltage on both modules. Minor voltage imbalances cause the higher-voltage supply to carry unequal current load, accelerating thermal wear. Adjust output trim if necessary prior to returning the system to full automatic operation.

Frequently Asked Questions (FAQ)

Why is this New Surplus module priced lower than OEM list but higher than refurbished units?

Our pricing reflects original New Surplus inventory secured from global channel reserves. OEM list pricing includes factory production queues and high corporate overhead, whereas refurbished units carry high component failure rates. Our price gives you immediate delivery and factory-grade reliability, lowering Total Cost of Ownership (TCO).

Is this Foxboro power supply module brand new and unused?

Yes. This product is a Brand New Surplus unit. It is not pulled from a decommissioned facility, nor is it refurbished or repaired. Modules remain in original protective packaging and are opened only for our inbound Quality Control verification.

What are the risks of using a refurbished power supply?

Power supply units operate under continuous electrical and thermal stress. Refurbished power units frequently contain aged electrolytic capacitors and degraded switching transistors that suffer from thermal drift and voltage ripple. A power failure on an active DCS rack can trip multiple control loops, causing thousands of dollars in unplanned downtime.

Can I hot-swap the module while the system is powered?

If the rack enclosure is configured with dual-redundant IPM2 power supply slots, you can remove and replace one module while the partner unit supplies uninterrupted 39 V DC power to the rack. In non-redundant single power slot enclosures, removing the module will immediately de-energize all cards in that rack section.

Does the require software driver setup or address configuration?

No. The is a pure power conversion hardware module and does not contain software logic, firmware registers, or network addresses. It begins delivering 39 V DC output immediately upon receiving valid AC line input.

What quality control steps are executed on this module prior to shipment?

Every unit completes our 5-step SOP quality process: serial number anti-counterfeit verification, physical backplane connector inspection, AC input voltage selector test, 39 V DC load testing, and final ESD-safe packaging sign-off.

What warranty protection comes with this unit?

We supply this New Surplus power module with a 1-year functional warranty, providing double the standard 12-month coverage period typical of secondary market vendors.
