3. Key Technical Specifications
- Product Type: Compression Termination Assembly (passive)
- Compatible Module: FBM217 (32-channel discrete input / contact sense)
- Input Support: 32 group-isolated discrete channels (typically 24 V DC contact sense or voltage monitor ranges: 15–60 V DC, 120 V AC/125 V DC, 240 V AC depending on TA variant)
- Mounting: DIN rail (32 mm / 35 mm compatible)
- Terminal Style: Compression (polyamide/PVC)
- Isolation: Group isolation when paired with appropriate FBM217 configuration
- Connector: Standard termination cable interface to FBM baseplate
- Weight: Approximately 0.3–0.6 kg range typical for this family
- Environmental Rating: Compatible with Class G3 harsh environments
- Certifications: Matches UL/cUL and CENELEC listings used with FBM217 subsystem
- Notes: Older part number; check current system drawings for RH916XZ supersession where applicable
4. Product Introduction
The Foxboro P0916PW is a compression-style DIN-rail termination assembly used with the FBM217 32-channel discrete input module in the I/A Series DCS. It provides the organized field wiring interface for contact-sense or voltage-monitor discrete signals from switches, limit switches, and similar devices.
Maintenance teams select the P0916PW when they need a genuine OEM terminal base that keeps field wiring intact during FBM replacement and maintains the original group isolation and signal integrity. Correct matching to the FBM217 prevents wiring errors and supports the high channel density required in many process monitoring applications.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No discrete status change reported | Open or high-resistance connection at TA terminals | ✅ High | Continuity check from field device to TA terminals; verify compression torque | Re-terminate wires; confirm correct wire size and ferrules |
| Intermittent or sticky inputs | Loose terminals, oxidation, or poor shield | ✅ High | Visual inspection + live wiggle test while forcing field contacts | Clean contacts, re-torque, ensure proper grounding |
| All channels dead after TA swap | Wrong TA type or cable mis-seated | ✅ High | Confirm part number P0916PW (or current superseding part) matches FBM217 drawings | Install only the correct TA; reseat termination cable |
| Noise or false trips | Ground loop or mixed voltage wiring at TA | ✅ Medium | Check shield-to-ground voltage; verify voltage segregation | Correct grounding and signal segregation per I/A guidelines |
| Physical damage or cracked body | Mechanical stress or incorrect DIN-rail clip engagement | ✅ Medium | Visual inspection of housing and mounting | Replace the TA; do not field-repair |
| FBM reports group faults | Field voltage outside range or wiring error | ❌ Low (usually field/FBM side) | Measure actual field voltage at TA terminals | Verify field device and FBM configuration first |
If issues remain, capture FBM diagnostic data, photograph the TA and wiring, and contact technical support with the details.

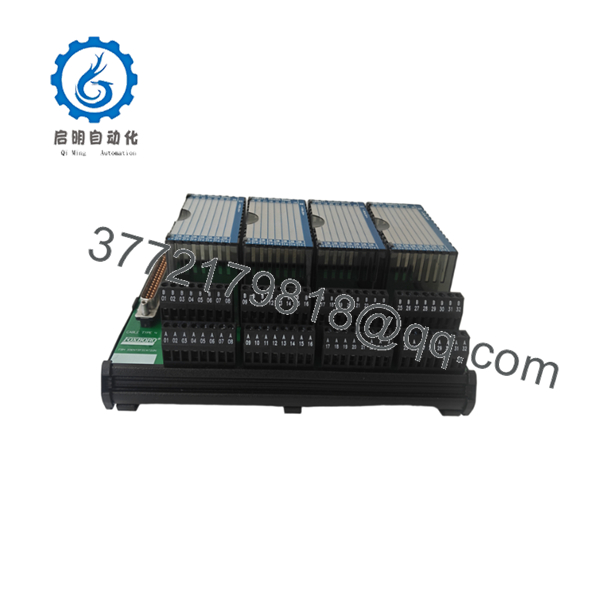

P0916PW

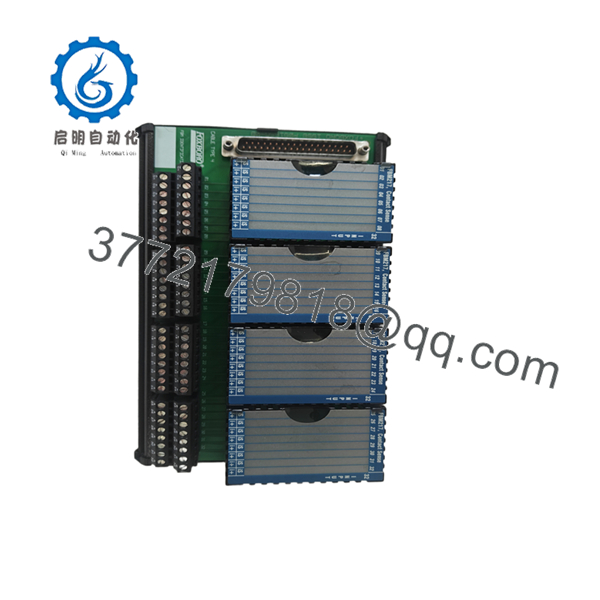

P0916PW
6. Frequently Asked Questions (FAQ)
Q: Is the P0916PW the actual module? A: No. It is the compression termination assembly. The is the discrete input module that plugs into the baseplate and connects to this TA via cable.
Q: What signals does the P0916PW support? A: It supports the ’s 32 group-isolated discrete input channels, typically for 24 V DC contact sense or the voltage ranges listed in the system documentation (15–60 V DC, 120 V AC/125 V DC, or 240 V AC depending on exact TA variant).
Q: Has this part been superseded? A: In some Compact documentation, P0916PW (along with P0916XZ) is listed as superseded by RH916XZ. Always verify against your current system drawings and the latest PSS before ordering.
Q: Can I hot-swap the FBM while using this TA? A: Yes. The design allows the to be removed without disconnecting field wiring attached to the , provided plant procedures allow it.
Q: Why is the price lower than a current factory order? A: This is New Original / New Surplus stock. It is genuine Foxboro material that has not been installed in continuous service and carries functional verification. It is not refurbished.
Q: Do I need to change configuration when replacing the TA? A: No. The is a passive wiring interface. Filtering, debounce, and logic remain in the and the control processor.
Q: What is the warranty and typical lead time? A: Standard coverage is 1 year. Units are normally in stock and ship within a few business days. Confirm availability when ordering, especially if your drawings call for the newer RH916XZ equivalent.
