3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Model Number | P0961FR |
| Product Designation | CP60 Control Processor |
| System Compatibility | Foxboro I/A Series / Foxboro Evo |
| Configuration | Fault-tolerant (redundant pair of single-width modules) |
| Block Memory | 2.6 MB |
| Maximum Blocks | 4000 |
| Basic Processing Cycle | 50 ms minimum |
| Block Execution Rate | 3400 blocks/sec |
| Sequence Block Size | 32 KB |
| FBM Support | Up to 120 Fieldbus Modules |
| Mounting | Single-width module (redundant pair is double-width) |
| Reference Manual | PSS 21H-1B7 B4 |
| Operating Temperature | 0 °C to +60 °C (typical) |
4. Product Introduction
The Foxboro P0961FR is the fault-tolerant CP60 Control Processor for Foxboro I/A Series and Evo distributed control systems. It executes regulatory control, sequential logic, timing functions, data acquisition, and alarm processing while communicating with Fieldbus Modules (FBMs) over the system fieldbus.
This processor is chosen for applications that require high availability. A redundant pair of P0961FR modules provides continuous control if one unit fails. It supports up to 120 FBMs and is widely used in process plants running legacy and current I/A Series hardware.

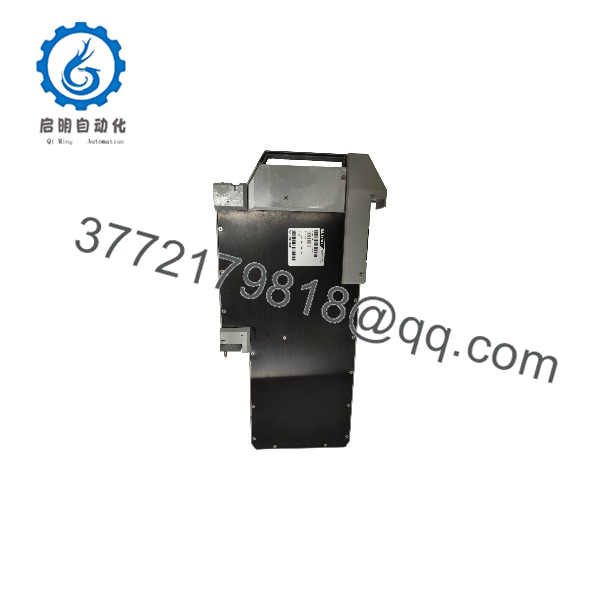

P0961FR

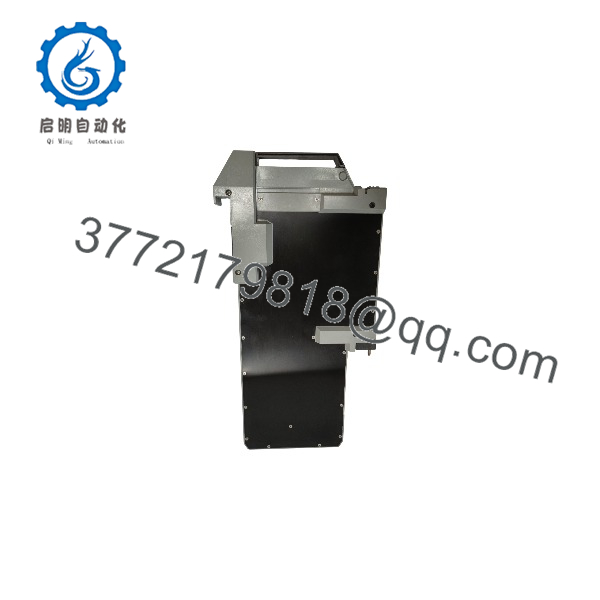

P0961FR
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Both processors offline | Power or backplane issue | ❌ Low | Measure power rails and check baseplate | Verify system power before replacing processors |
| One processor in fault / standby | Module failure or configuration mismatch | ✅ High | Check status LEDs and diagnostic messages | Replace the failed module; verify firmware match |
| Control loops not executing | Memory or configuration corruption | ✅ High | Review block load and execution statistics | Reload configuration or replace processor |
| Communication loss to FBMs | Fieldbus or processor fault | ✅ Medium | Check fieldbus status and cable integrity | Test with known-good processor if available |
| High CPU loading / slow scans | Excessive blocks or slow cycle | ✅ Medium | Monitor block execution rate and BPC | Optimize control strategy or upgrade to higher-capacity processor |
| Hot-swap fails | Improper procedure or hardware lock | ✅ High | Follow documented removal/insertion sequence | Power down pair if required; replace carefully |
If diagnostics remain unclear after checking power, fieldbus, and configuration, provide status LED photos and system diagnostic logs to technical support.
6. Frequently Asked Questions (FAQ)
Q: Is the P0961FR the fault-tolerant CP60?
A: Yes. The P0961FR is the redundant (fault-tolerant) version of the CP60 Control Processor. A full redundant pair consists of two single-width modules.
Q: How many FBMs can one P0961FR support?
A: Up to 120 Fieldbus Modules.
Q: What is the difference between CP60 and CP60S?
A: CP60 (P0961FR) is the fault-tolerant version. CP60S is the non-redundant (simplex) single-width version.
Q: Can I hot-swap a P0961FR in a redundant pair?
A: Yes, when the system is configured for fault-tolerant operation and the proper procedure is followed. Always consult the Foxboro documentation for the exact sequence.
Q: Why is new-surplus pricing lower than current list?
A: These units come from excess project inventory. They are unused original Foxboro product, tested, and carry a 1-year warranty. They are not refurbished units.
Q: Do I need matching firmware on both processors in a redundant pair?
A: Yes. Firmware and configuration must match for proper failover. Verify versions before installing a replacement.
