Galil DMC-1842 REV H 4-Axis PCI Motion Controller

Description

Key Technical Specifications

The Galil DMC-1842 is part of the DMC-18×2 PCI motion controller family and provides 4-axis control with servo and stepper motor support, encoder feedback, programmable motion functions, and general-purpose I/O.

Product Introduction & Supply Chain Strategy

The Galil DMC-1842 REV H is a PCI-based 4-axis motion controller designed for industrial automation equipment requiring coordinated servo or stepper motion. It provides position control, interpolation, electronic gearing, encoder feedback processing, and programmable motion sequences for machine builders and OEM equipment.

For legacy machines using the DMC-18×2 platform, maintaining New Original / New Surplus inventory is a practical lifecycle strategy. This controller may become difficult to source during unexpected failures. Holding controlled buffer stock reduces production downtime exposure, avoids emergency sourcing costs, and improves Total Cost of Ownership (TCO) compared with replacing complete machine control systems.

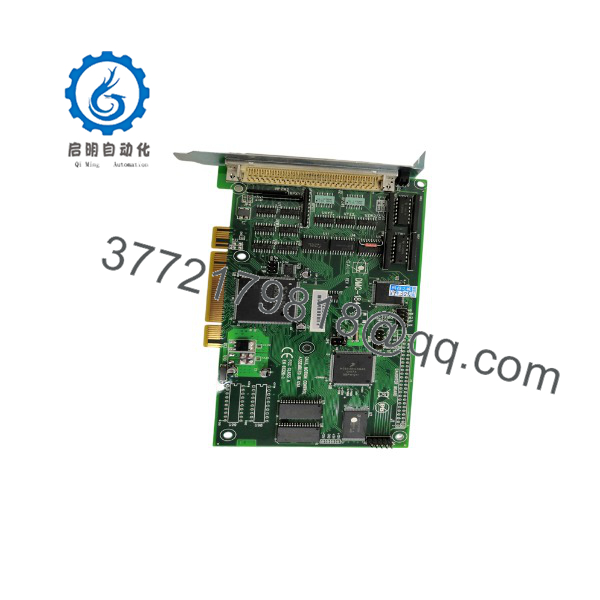

DMC-1842 REV H

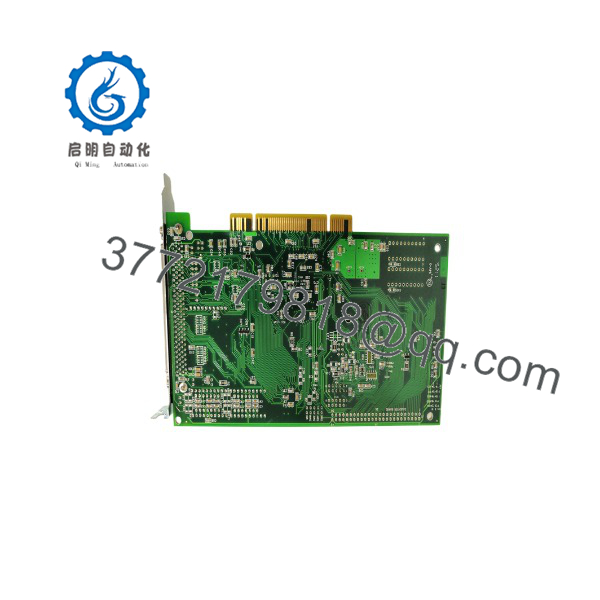

DMC-1842 REV H

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Shut down the host computer and connected machine systems.
2. Apply lock-out/tag-out procedures before opening the electrical cabinet.
3. Disconnect power from the PCI computer chassis.
4. Wear a grounded ESD wrist strap before handling the DMC-1842.
5. Record the existing controller configuration:
   • Board model and revision
   • Firmware revision
   • PCI slot location
   • Motor configuration
   • Encoder wiring
   • I/O assignments
   • Application program backup

Required tools:

• ESD wrist strap
• Anti-static bag
• Screwdriver set
• PC diagnostic tools
• Galil programming software

Stage 2: Removal

1. Shut down the host PC completely.
2. Remove cabinet access panels according to safety procedures.
3. Disconnect the 100-pin interface cable carefully.
4. Remove the PCI retaining screw.
5. Pull the DMC-1842 straight upward from the PCI slot.

Avoid twisting the board during removal. Excessive force can damage PCI contacts or board connectors.

Stage 3: Installation (Clone & Seat)

1. Verify the replacement board matches:
   • Galil DMC-1842 model
   • Revision H hardware level
   • PCI compatibility
   • Existing cable interface
2. Install the controller into the same PCI slot position.
3. Secure the board mounting bracket.
4. Reconnect the 100-pin cable.
5. Verify all motor, encoder, and I/O connections.
6. Restore the saved Galil program and configuration parameters.

Do not modify motion parameters during a hardware swap unless machine validation is planned.

Stage 4: Power-On & Testing

1. Verify PC power supply voltage before startup.
2. Power on the control computer.
3. Confirm the controller is detected by the operating system.
4. Connect using Galil software tools.
5. Verify:
   • Controller communication
   • Firmware response
   • Encoder feedback
   • Axis enable status
   • I/O operation
6. Perform controlled motion testing:
   • Low-speed jog
   • Homing sequence
   • Position verification
   • Limit switch testing
7. Confirm production motion sequences before releasing the machine.

Firmware/Software Versions & Upgrade Notes

• Recommended Firmware: Maintain the firmware revision matching the original installation.
• Known Firmware Reference: Galil provides firmware archives for legacy DMC-18×2 controllers, including firmware packages.
• Configuration Requirement: Back up all controller programs, variables, arrays, and motion parameters before replacement.
• Compatibility Risk: A firmware revision change can alter command behavior, timing characteristics, or application compatibility.
• Upgrade Warning: Avoid firmware upgrades during emergency hardware replacement. A controller swap should first restore the existing machine state.

Recommended records before replacement:

• Firmware identification command output
• Controller program files
• Motion tuning parameters
• Axis configuration
• Encoder scaling values

Frequently Asked Questions (FAQ)

Q1: Is the Galil REV H supplied as a new controller?

Yes. The supplied unit is a Brand New Surplus controller. It is not pulled from retired equipment and not refurbished. Each unit is checked for identification, storage condition, connector integrity, and shipment protection.

Q2: Why is New Surplus pricing different from direct OEM purchasing?

New Surplus inventory comes from industrial stock sources accumulated during previous production cycles. It can provide a practical supply option for legacy systems where standard OEM purchasing channels may no longer be efficient.

Q3: Why should a plant keep a spare?

The controls machine motion. A controller failure can stop an entire production cell. For critical equipment, maintaining 1–2 spare units provides insurance against unexpected downtime and long procurement lead times.

Q4: Can I replace the without changing software?

Usually, the application program and parameters can be restored if the original backup is available. Always save the existing controller configuration before removing the original board.

Q5: What should be checked before installing a replacement REV H?

Confirm PCI compatibility, firmware revision, controller parameters, motor type, encoder feedback wiring, and I/O assignments. Small configuration differences can prevent correct machine operation.

Q6: Does the support both servo and stepper applications?

Yes. The DMC-18×2 family supports servo and stepper motor control applications with encoder feedback and programmable motion commands.

Q7: How should inventory be managed for long-term support?

Use failure history, machine criticality, and lead time variability to establish Min/Max levels. For machines that cannot be easily migrated, maintain buffer stock and evaluate Last-time-buy opportunities before availability declines.
